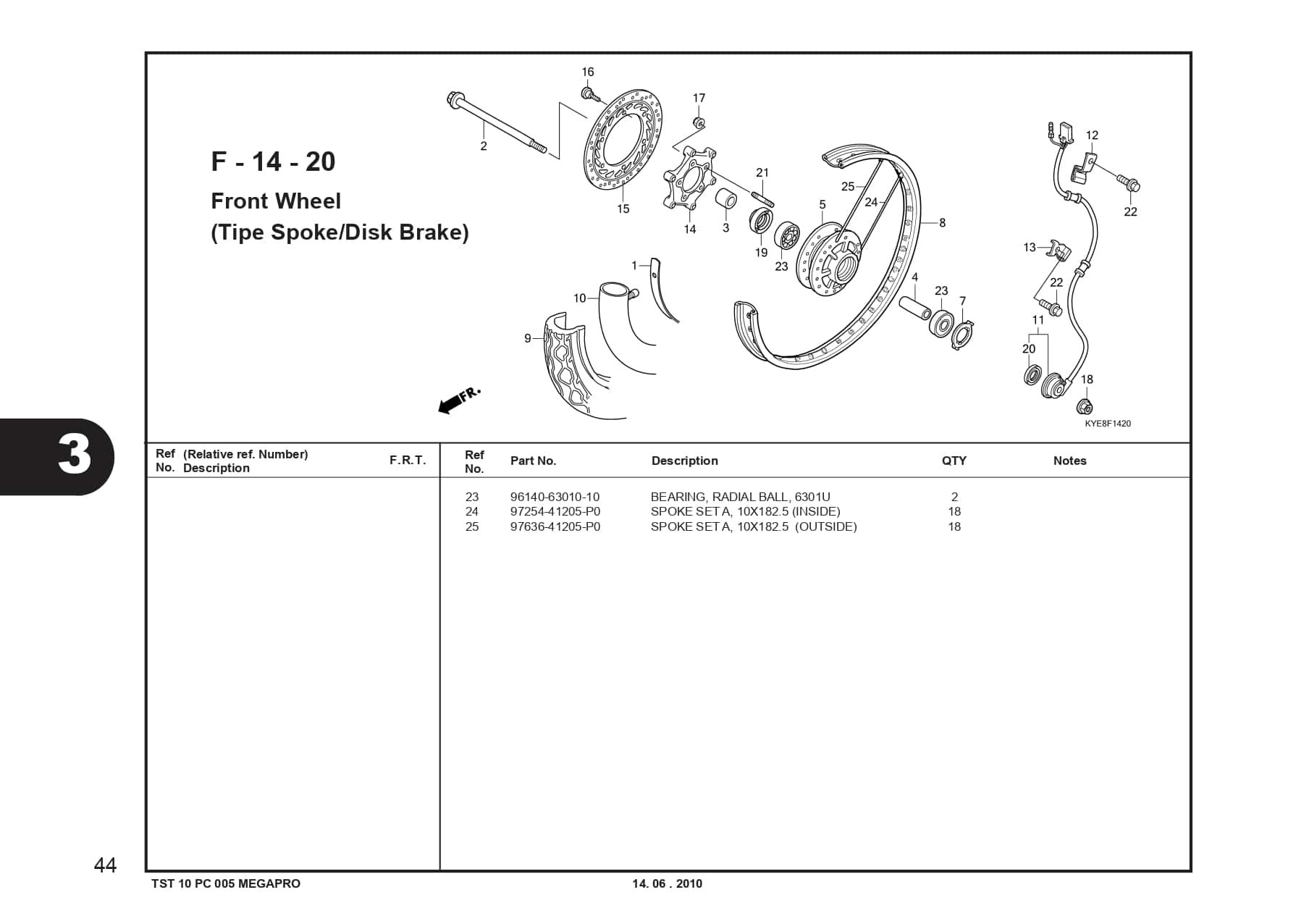

F-14-20 Front Wheel Tipe Spoke Disk Brake – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	FLAP TIRE INOUE Part Number : `42713102005`
2	AXLE FR WHEEL Part Number : `44301KSP900`
3	COLLAR FR WHEEL SIDE Part Number : `44311KSP900`
4	COLLAR FR AXLE DISTANCE Part Number : `44620400000`
5	HUB FR WHEEL Part Number : `44601KCJ690`
6	RETAINER GEAR BOX Part Number : `44680KSPB00`
7	RIM, FR WHEEL Part Number : `44701KYE913`
8	TIRE FR TT (80/100-17) Part Number : `44711KYE911`
9	TUBE TIRE 3.00/3.25-17 Part Number : `44712KYE911`
10	SENSOR ASSY., SPEED Part Number : `44800KYE941`
11	CLAMPER A SPDMT CORD Part Number : `44817KSPB00`
12	CLAMPER B SPDMT CORD Part Number : `44818KSPB00`
13	HUB FR BRAKE Part Number : `45122KYE910`
14	DISK FR BRAKE Part Number : `45251KEH600`
15	BOLT DISK 8x22 Part Number : `90105KSP930`
16	NUT U 6MM Part Number : `90301KGH901`
17	NUT,U,12MM Part Number : `90306KGH901`
19	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
20	DUST SEAL,40X50X5 Part Number : `91258KGH902`
21	BOLT STUD 6X18 Part Number : `92911060180E`
22	BOLT FLANGE SH 6X12 Part Number : `960010601200`
23	BEARING BALL 6301 Part Number : `AHB6301RS`
23	BEARING BALL 6301 Part Number : `AHB6301`
23	BEARING BALL 6301 Part Number : `ALF6301RS`
24	9725441205P0 Part Number : `9725441205P0`
25	9763641205P0 Part Number : `9763641205P0`
