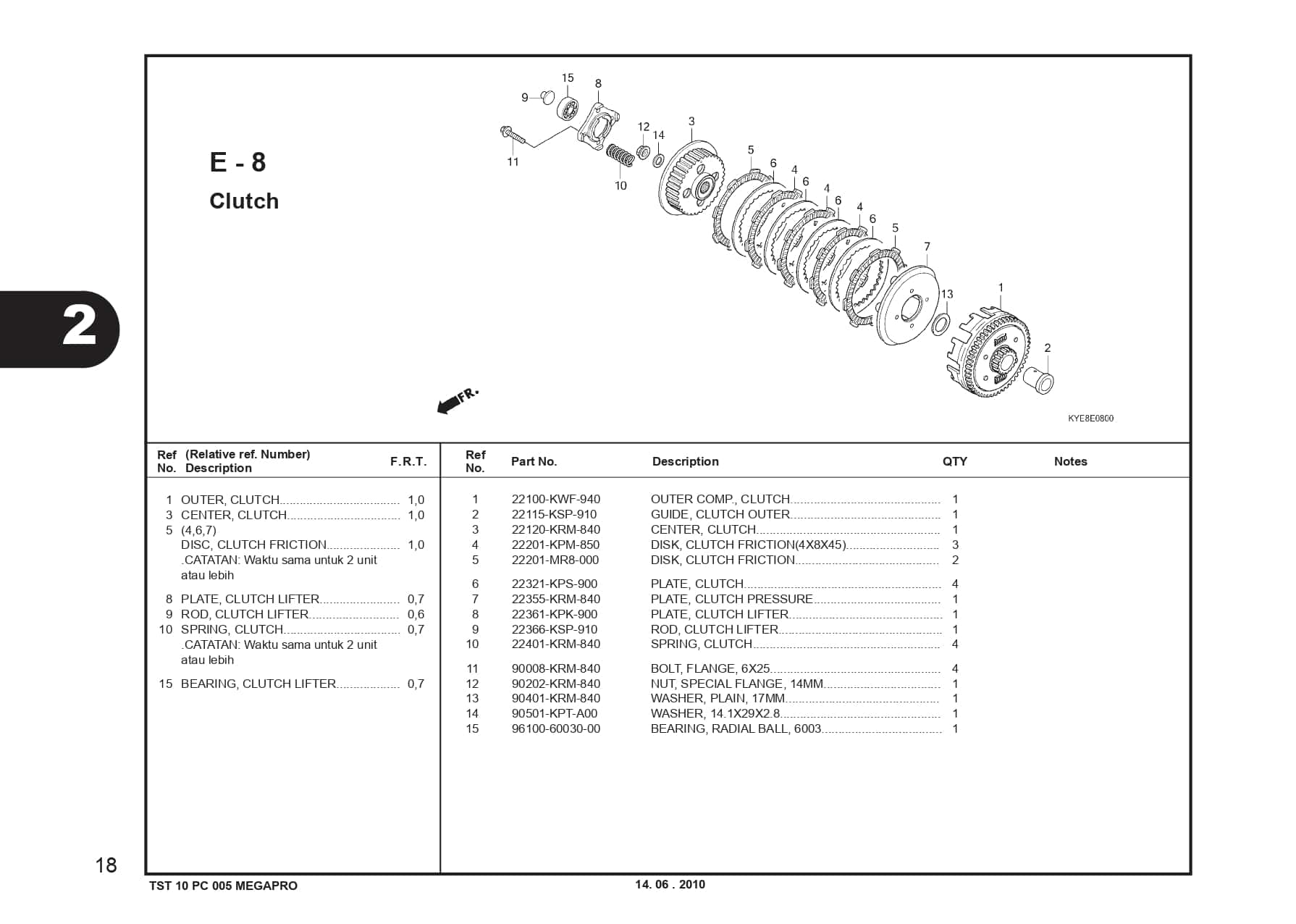

E-8 Clutch – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	OUTER COMP CLUTCH Part Number : `22100KWF940`
2	GUIDE CLUTCH OUTER Part Number : `22115KSP910`
3	CENTER CLUTCH Part Number : `22120KRM840`
4	DISK CLUTCH FRIC 4X8X45 Part Number : `22201KPM850`
4	DISK,CLUTCH LBL Part Number : `22201MR8000`
5	PLATE CLUTCH Part Number : `22321KPS900`
6	PLATE CLUTCH PRESSURE Part Number : `22355KRM840`
7	PLATE,CLUTCH LIFT Part Number : `22361KPK900`
8	RODCLUTCH LIFTER Part Number : `22366KSP910`
9	SPRING CLUTCH Part Number : `22401KRM840`
10	BOLT FLANGE 6X25 Part Number : `90008KRM840`
11	NUT SPECIAL FLANGE 14MM Part Number : `90202KRM840`
12	WASHER PLAIN 17MM Part Number : `90401KRM840`
13	WASHER 14.1X29X2.8 Part Number : `90501KPTA00`
14	BRG BALL RADIAL 6003 Part Number : `961006003000`
