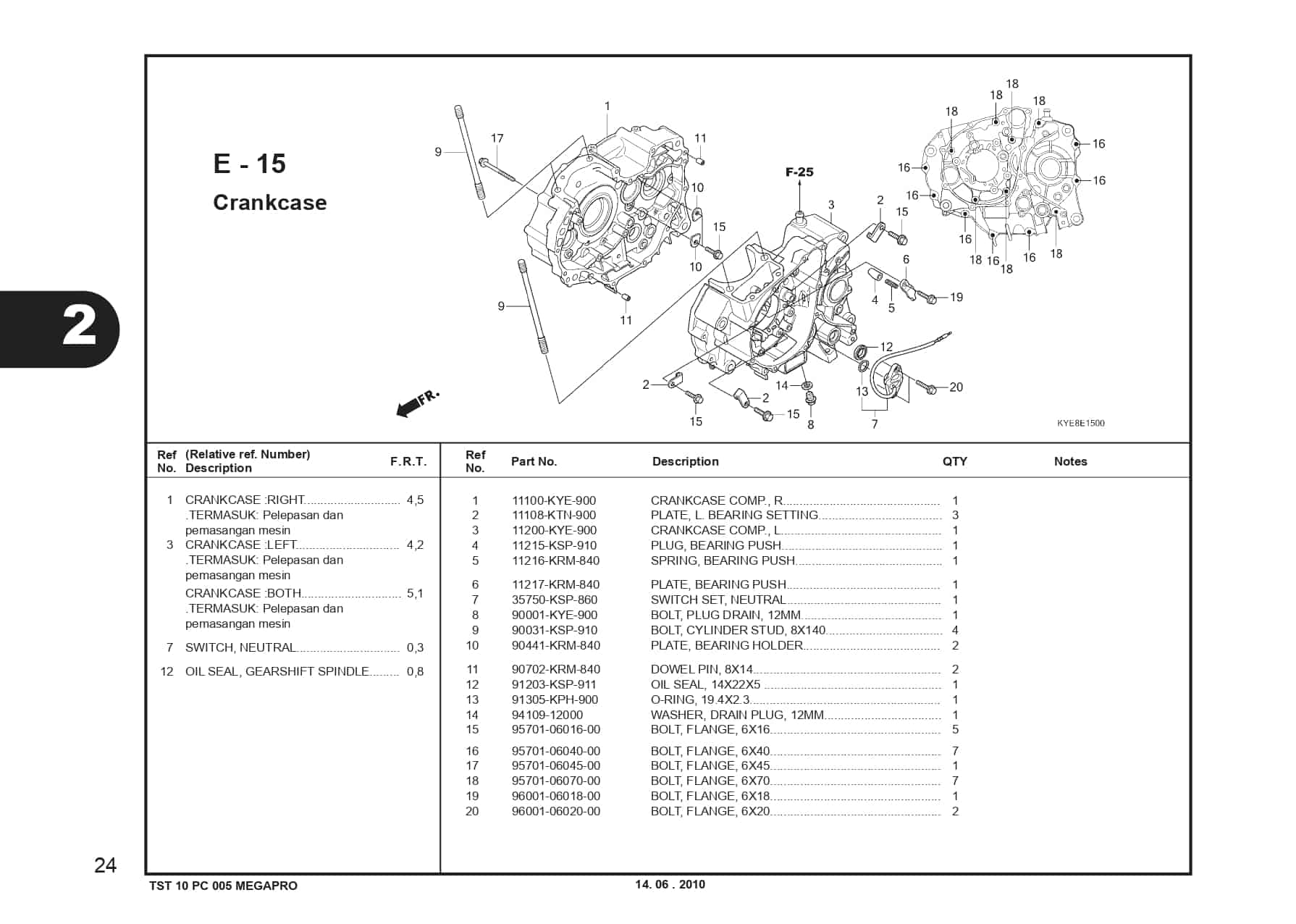

E-15 Crankcase – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	CRANKCASE COMP R Part Number : `11100KYE900`
2	PLATE L BEARING SET Part Number : `11108KTT900`
3	11200KYE900 Part Number : `11200KYE900`
4	PLUG BEARING PUSH Part Number : `11215KSP910`
5	SPRING BEARING PUSH Part Number : `11216KRM840`
6	PLATE BEARING PUSH Part Number : `11217KRM840`
7	SWITCH SET NEUTRAL Part Number : `35750KSP860`
8	BOLT PLUG DRAIN 12MM Part Number : `90001KYE900`
9	BOLT STUD CYL 8X140 Part Number : `90031KSP910`
10	PLATE BEARING HOLD Part Number : `90441KRM840`
11	PIN DOWEL 8X14 Part Number : `90702KRM840`
12	OIL SEAL,14X22X5 Part Number : `91203KSP911`
13	O RING 19.4X2.3 Part Number : `91305KPH900`
14	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
15	BOLT FLANGE 6X16 Part Number : `957010601600`
16	BOLT FLANGE 6X40 Part Number : `957010604000`
17	BOLT,FLANGE,6X45 Part Number : `957010604500`
18	BOLT FLANGE 6X70 Part Number : `957010607000`
19	BOLT FLANGE SH 6X18 Part Number : `960010601800`
20	BOLT FLANGE 6X20 Part Number : `960010602000`
