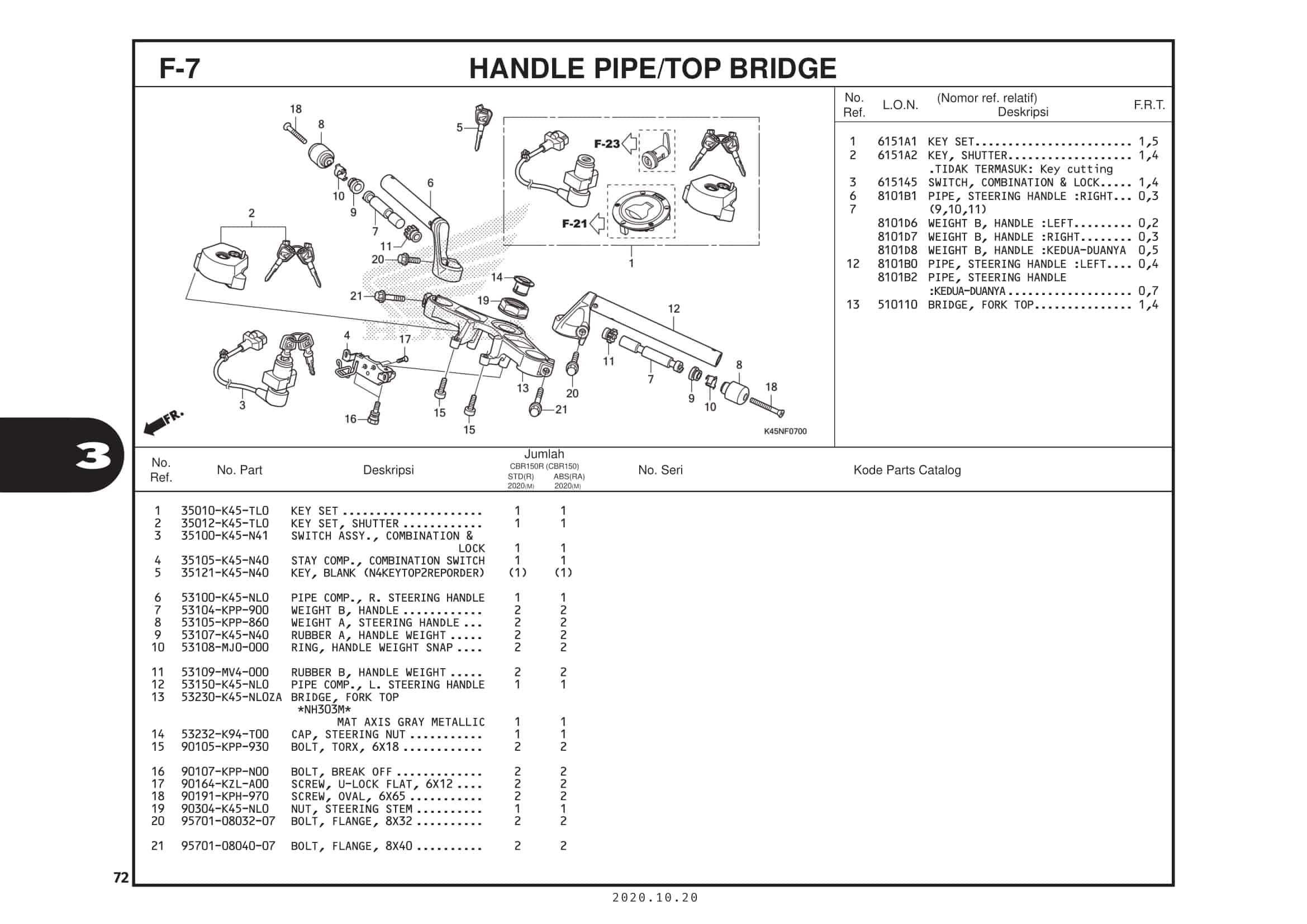

F-7 Handle Pipe/Top Bridge – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	KEY SE Part Number : `35010K45NL0`
2	KEY SET, SHUTTER Part Number : `35012K45TL0`
3	SWITCH ASSY., COMBINATION & LOCK Part Number : `35100K45N41`
4	STAY COMP., COMBINATION SWITCH Part Number : `35105K45N40`
5	KEY, BLANK (N4KEYTOP2REPORDER) Part Number : `35121K45N40`
6	PIPE COMP., R. STEERING HANDLE Part Number : `53100K45NL0`
7	WEIGHT B, HANDLE Part Number : `53104KPP900`
8	WEIGHT A, STEERING HANDLE .. Part Number : `53105KPP860`
9	RUBBER A, HANDLE WEIGHT Part Number : `53107K45N40`
10	RING, HANDLE WEIGHT SNAP Part Number : `53108MJ0000`
11	RUBBER B, HANDLE WEIGHT . Part Number : `53109MV4000`
12	PIPE COMP., L. STEERING HANDLE Part Number : `53150K45NL0`
13	BRIDGE, FORK TOP NH303M MAT AXIS GRAY METALLIC Part Number : `53230K45NL0ZA`
14	CAP, STEERING NUT Part Number : `53232K94T00`
15	BOLT, TORX, 6X18 Part Number : `90105KPP930`
16	BOLT, BREAK OFF Part Number : `90107KPPN00`
17	SCREW, U-LOCK FLAT, 6X12 Part Number : `90164KZLA00`
18	SCREW, OVAL, 6X65 Part Number : `90191KPH970`
19	NUT, STEERING STEM Part Number : `90304K45NL0`
20	BOLT, FLANGE, 8X32 Part Number : `957010803207`
21	BOLT, FLANGE, 8X40 Part Number : `957010804007`
