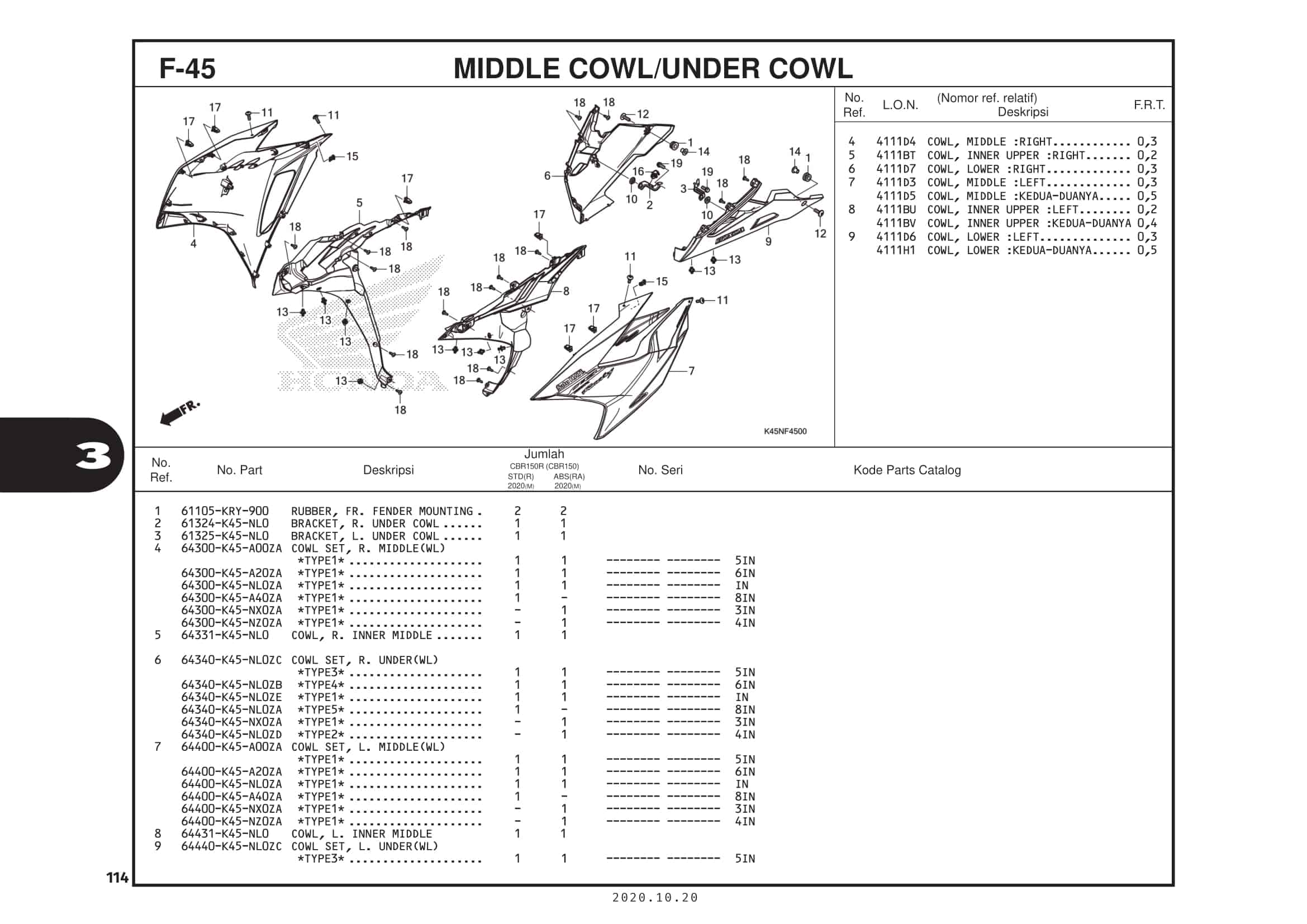

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER FR FENDER MT | 61105KRY900 |
|
| 2 | BRACKET, R. UNDER COWL | 61324K45NL0 |
|
| 3 | BRACKET, R. UNDER COWL | 61325K45NL0 |
|
| 4 | SET ILLUS,R MIDDLE COWL TYPE 1 | 64300K45A40ZA |
|
| 4 | COWL,R MIDDLE (NI OR) | 64311K45NL0ZA |
|
| 4 | COWL,R MIDDLE (WN RD) | 64311K45NL0ZB |
|
| 4 | COWL,R MIDDLE (MT GN BL) | 64311K45NL0ZC |
|
| 4 | COWL,R MIDDLE (BLK) | 64311K45NL0ZD |
|
| 4 | Set Illus R Middle Cowl Type 1 | 64300K45A60ZA |
|
| 4 | Set Illust R Middle Cowl Type 1 | 64300K45A80ZA |
|
| 4 | Set Illust R Middle Cowl Type 1 | 64300K45A50ZA |
|
| 5 | COWL INNER MIDDLE | 64331K45NL0 |
|
| 6 | COWL SET, R UNDER TYPE 4 | 64340K45NL0ZB | - |
| 6 | SET ILLUS,R UNDER COWL TYPE 5 | 64340K45NL0ZA |
|
| 6 | SET ILLUS,R UNDER COWL TYPE 2 | 64340K45NL0ZD |
|
| 6 | COWL COMP,R UNDER (WN RD) | 64341K45NL0ZA |
|
| 6 | COWL COMP,R UNDER (PE DA BL) | 64341K45NL0ZB | - |
| 6 | COWL COMP,R UNDER (AN GY MT) | 64341K45NL0ZC |
|
| 6 | COWL COMP,R UNDER (RO WH) | 64341K45NL0ZD |
|
| 6 | COWL COMP,R UNDER (BLK) | 64341K45NL0ZE |
|
| 6 | SET ILLUS,R UNDER COWL, TYPE 2 | 64340K45A50ZC |
|
| 6 | SET ILLUS,R UNDER COWL, TYPE 1 | 64340K45A50ZD |
|
| 6 | Set Illus R Under Cowl Type 1 | 64340K45NX0ZB |
|
| 6 | Set Illus R Under Cowl Type 4 | 64340K45A50ZA |
|
| 6 | Cowl Comp R Under (MT BU SL) | 64341K45NL0MBS |
|
| 7 | Set Illust L Middle Cowl Type 1 | 64400K45A80ZA |
|
| 7 | COWL SET L MIDDLE TYPE 1 | 64400K45A40ZA |
|
| 7 | COWL,L MIDDLE (NI OR) | 64411K45NL0ZA |
|
| 7 | COWL,L MIDDLE (WN RD) | 64411K45NL0ZB |
|
| 7 | COWL,L MIDDLE (MT GN BL) | 64411K45NL0ZC |
|
| 7 | COWL,L MIDDLE (BLK) | 64411K45NL0ZD |
|
| 7 | SET ILLUS,L MIDDLE COWL, TYPE 1 | 64400K45A50ZA |
|
| 7 | Set Illust L Middle Cowl Type1 | 64400K45A60ZA |
|
| 7 | Set Illus L Middle Cowl Type 1 | 64400K45NX0ZB |
|
| 8 | COWL L INNER MIDDLE | 64431K45NL0 |
|
| 8 | et Illust L Under Cowl Type 4 | 64440K45A50ZA |
|
| 9 | COWL SET L UNDER TYPE 5 | 64440K45NL0ZA |
|
| 9 | COWL SET L UNDER TYPE 2 | 64440K45NL0ZD |
|
| 9 | COWL COMP,L UNDER (WN RD) | 64441K45NL0ZA |
|
| 9 | COWL COMP,L UNDER (PE DA BL) | 64441K45NL0ZB |
|
| 9 | COWL COMP,L UNDER (AN GY MT) | 64441K45NL0ZC |
|
| 9 | COWL COMP,L UNDER (RO WH) | 64441K45NL0ZD |
|
| 9 | COWL COMP,L UNDER (BLK) | 64441K45NL0ZE |
|
| 9 | SET ILLUS,L UNDER COWL, TYPE 1 | 64440K45A50ZC |
|
| 9 | SET ILLUS,L UNDER COWL, TYPE 1 | 64440K45A50ZD |
|
| 10 | GROMMET,SIDE COVR | 83551376000 |
|
| 11 | SCREW Pan 5X6 | 90106K64N00 |
|
| 12 | BOLT SPECIAL 6x20 | 90108K15930 |
|
| 13 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 14 | COLAR RR MASTER CYLINDER CUP | 90501KPPT00 |
|
| 15 | SLIDE CLIP | 90651K14A31 |
|
| 16 | CLAMP, WIRE, 8MM | 90659KG4003 |
|
| 17 | CLIP SNAP FITTING | 90666K59A11 |
|
| 18 | SCREW TAPPING 4X12 | 9390324380 |
|
| 19 | BOLT,FLANGE,SH 6X14 | 960010601407 |
|
