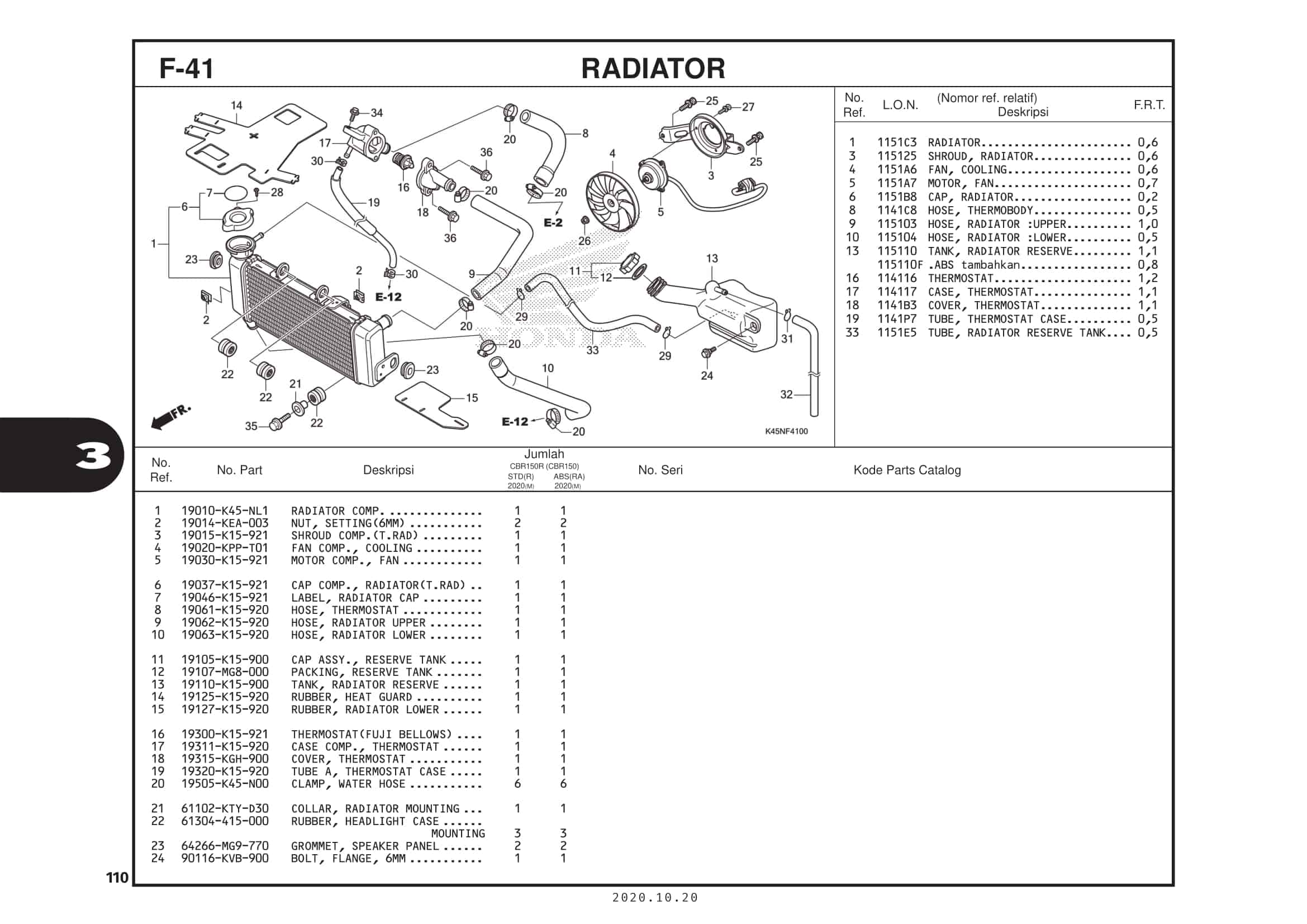

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RADIATOR COMP | 19010K45NL1 |
|
| 2 | NUT, SETTING(6MM) | 19014KEA003 |
|
| 3 | SHROUD COMP.(T.RAD) . | 19015K15921 |
|
| 4 | FAN COMP., COOLING | 19020KPPT01 |
|
| 5 | MOTOR COMP., FAN | 19030K15921 |
|
| 6 | CAP COMP., RADIATOR(T.RAD) | 19037K15921 |
|
| 7 | LABEL, RADIATOR CAP | 19046K15921 | - |
| 8 | HOSE, THERMOSTAT | 19061K15920 |
|
| 9 | HOSE, RADIATOR UPPER | 19062K15920 |
|
| 10 | CAP ASSY., RESERVE TANK | 19105K15900 |
|
| 11 | CAP ASSY., RESERVE TANK | 19105K15900 |
|
| 12 | PACKING, RESERVE TANK | 19107MG8000 |
|
| 13 | TANK, RADIATOR RESERVE | 19110K15900 |
|
| 14 | RUBBER, HEAT GUARD | 19125K15920 |
|
| 15 | RUBBER, RADIATOR LOWER | 19127K15920 |
|
| 16 | THERMOSTAT(FUJI BELLOWS) | 19300K15921 |
|
| 17 | CASE COMP., THERMOSTAT | 19311K15920 |
|
| 18 | COVER, THERMOSTAT | 19315KGH900 |
|
| 19 | TUBE A, THERMOSTAT CASE | 19320K15920 |
|
| 20 | CLAMP, WATER HOSE | 19505K45N00 |
|
| 21 | COLLAR, RADIATOR MOUNTING | 61102KTYD30 |
|
| 22 | RUBBER, HEADLIGHT CASE | 61304415000 |
|
| 23 | GROMMET, SPEAKER PANEL | 64266MG9770 |
|
| 24 | BOLT, FLANGE, 6MM | 90116KVB900 |
|
| 25 | BOLT-WASHER, 6X12 | 90120GHB601 |
|
| 26 | NUT, FLANGE, 3MM | 90315MFL003 |
|
| 27 | SCREW-WASHER, 4X6 | 938910400607 |
|
| 28 | SCREW, TAPPING, 3X6 | 9390122020 |
|
| 29 | CLIP, TUBE(B10) | 9500202100 |
|
| 30 | CLAMP, TUBE(D10.5) | 950024105008 |
|
| 31 | CLIP, TUBE(C9) | 9500250000 |
|
| 32 | TUBE, 5X520(95005-50001-30M) | 950055052030 |
|
| 33 | TUBE, 5.3X650(95005-55001-20M) | 950055565020 |
|
| 34 | BOLT, FLANGE, 6X16 | 957010601600 |
|
| 35 | BOLT, FLANGE, 6X22 | 957010602200 |
|
| 36 | BOLT, FLANGE, 6X25 | 960010602500 |
|
