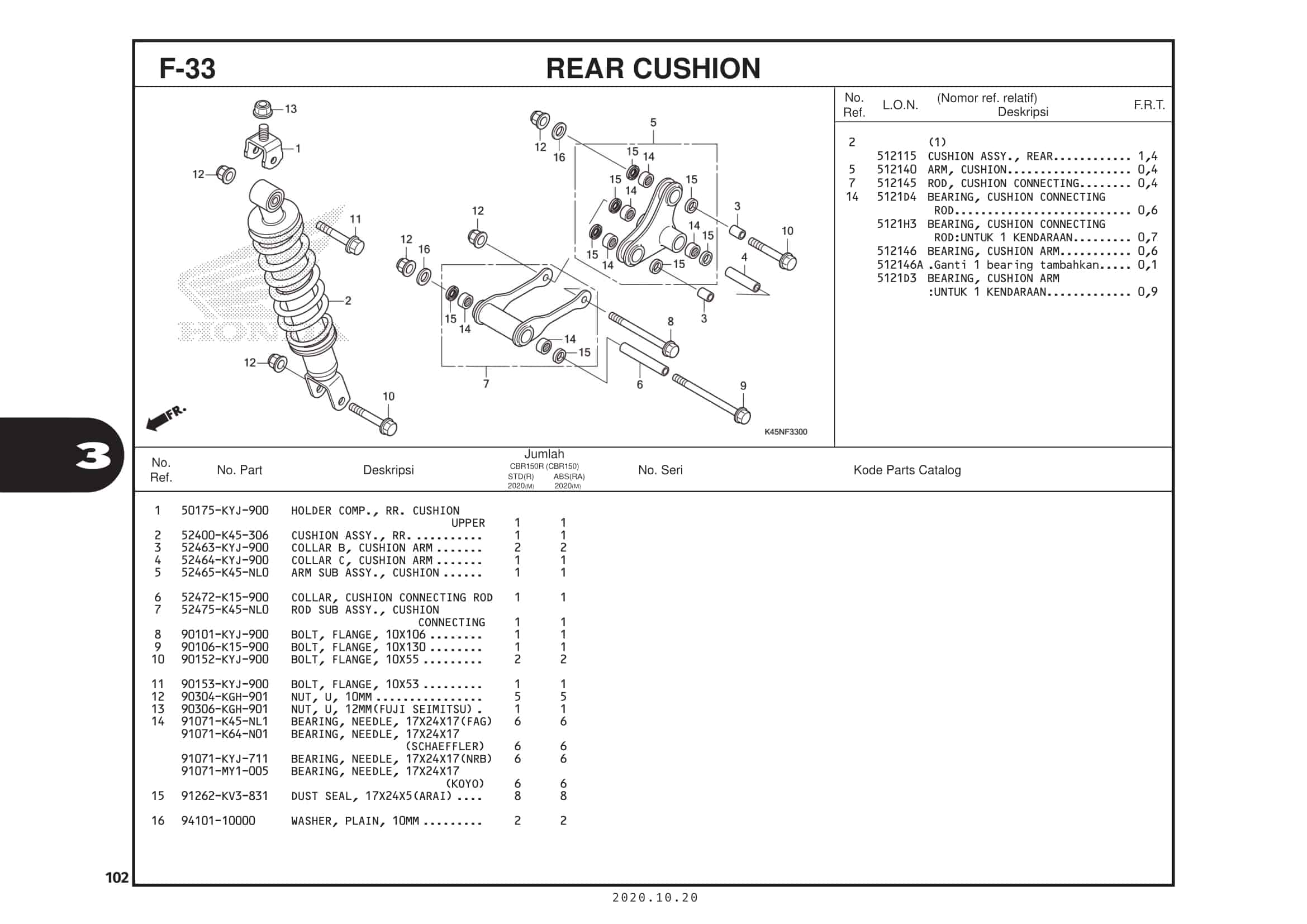

F-33 Rear Cushion – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	HLDR COMP,RR CSH UPPER Part Number : `50175KYJ900`
2	CUSHION ASSY,REAR Part Number : `52400K45306`
3	COLLAR B,CUSHION ARM Part Number : `52463KYJ900`
4	COLLAR C,CUSHION ARM Part Number : `52464KYJ900`
5	ARM SUB ASSY,CUSH Part Number : `52465K45NL0`
6	CLLR,CSH CONNEC ROD Part Number : `52472K15900`
7	CONN ROD SUB ASSY,CUSH Part Number : `52475K45NL0`
8	BOLT,FLANGE 10X106 Part Number : `90101KYJ900`
9	BOLT FLANGE 10X130 Part Number : `90106K15900`
10	BOLT,FLANGE 10X55 Part Number : `90152KYJ900`
11	BOLT,FLANGE 10X53 Part Number : `90153KYJ900`
12	NUT U10MM Part Number : `90304KGH901`
13	NUT,U,12MM Part Number : `90306KGH901`
14	BEARING NEEDLE 17X24X17(FAG) Part Number : `91071K45NL1`
14	BEARING, NEEDLE, 17X24X17 Part Number : `91071K64N01`
14	BEARING, NEEDLE, 17X24X17 Part Number : `91071KYJ711`
14	BRG,NDL.17X24X17 Part Number : `91071MY1005`
15	DUST SEAL,17X24X5 Part Number : `91262KV3831`
16	WASHER PLAIN 10MM Part Number : `9410110000`
