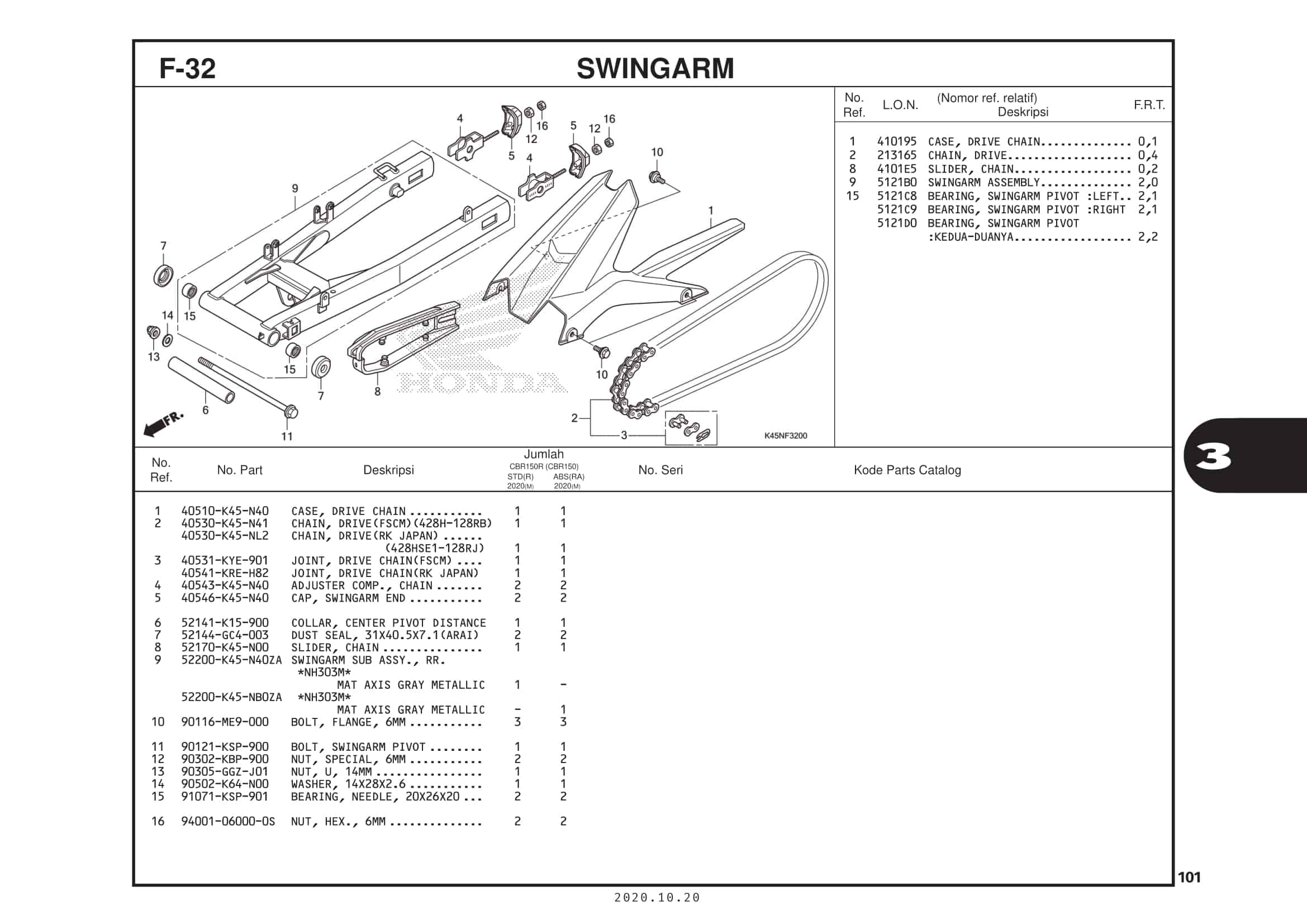

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CASE DRIVE CHAIN | 40510K45N40 |
|
| 2 | CHAIN, DRIVE(428H-128RB) | 40530K45N41 |
|
| 2 | CHAIN,DRIVE RK428HSEI-128RJ | 40530K45NL2 |
|
| 3 | JOINT, DRIVE CHAIN(FSCM) | 40531KYE901 |
|
| 3 | JOINT DRIVE CHAIN | 40541KREH82 |
|
| 4 | ADJUSTER COMP., CHAIN | 40543K45N40 |
|
| 5 | CAP, SWINGARM END | 40546K45N40 |
|
| 6 | COLLAR CENTER PIVOT DISTANCE | 52141K15900 |
|
| 7 | DUST SEAL, 31X40.5X7.1 | 52144GC4003 |
|
| 8 | SLIDER CHAIN | 52170K45N00 |
|
| 9 | SWINGARM SUB ASSY REAR | 52200K45N40ZA |
|
| 9 | SWINGARM SUB ASSY,REAR | 52200K45NB0ZA |
|
| 10 | BOLT FLANGE 6MM | 90116ME9000 |
|
| 11 | BOLT SWINGARM PIVOT | 90121KSP900 |
|
| 12 | NUT SPECIAL 6MM | 90302KBP900 |
|
| 13 | NUT, U, 14MM | 90305GGZJ01 |
|
| 14 | WASHER, 14X28X2.6 | 90502K64N00 |
|
| 15 | BRG.NEEDLE 20X26X20 | 91071KSP901 |
|
| 16 | NUT HEX 6MM | 94001060000S |
|
