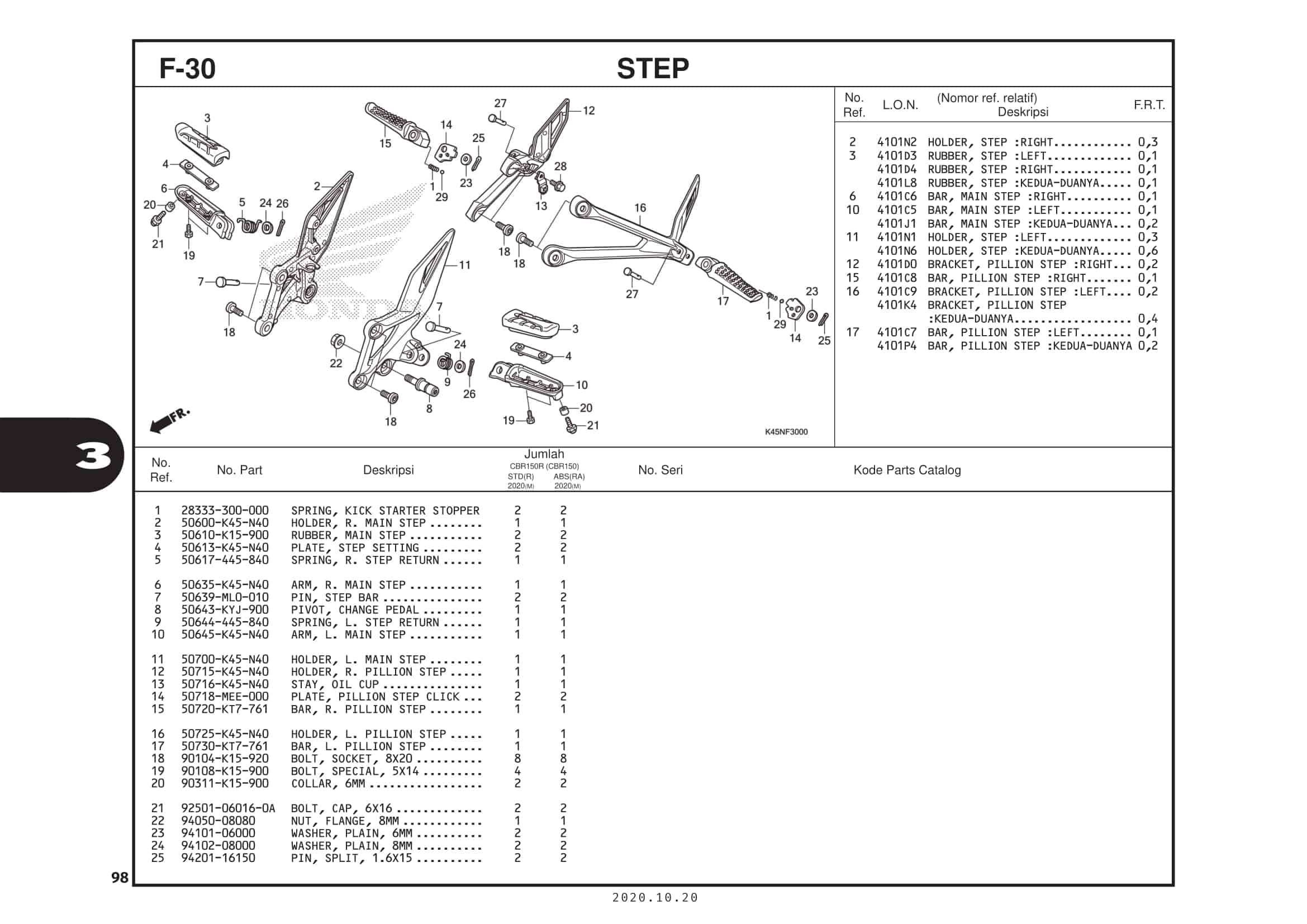

F-30 Step – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	SPRING, KICK STARTER STOPPER Part Number : `28333300000`
2	HOLDER, R. MAIN STEP . Part Number : `50600K45N40`
3	RUBBER, MAIN STEP Part Number : `50610K15900`
4	PLATE, STEP SETTING Part Number : `50613K45N40`
5	SPRING, R. STEP RETURN Part Number : `50617445840`
6	ARM, R. MAIN STEP Part Number : `50635K45N40`
7	PIN, STEP BAR Part Number : `50639ML0010`
8	PIVOT, CHANGE PEDAL Part Number : `50643KYJ900`
9	SPRING, L. STEP RETURN Part Number : `50644445840`
10	ARM, L. MAIN STEP Part Number : `50645K45N40`
11	HOLDER, L. MAIN STEP Part Number : `50700K45N40`
12	HOLDER, R. PILLION STEP Part Number : `50715K45N40`
13	STAY, OIL CUP Part Number : `50716K45N40`
14	PLATE, PILLION STEP CLICK Part Number : `50718MEE000`
15	BAR, R. PILLION STEP Part Number : `50720KT7761`
16	HOLDER, L. PILLION STEP Part Number : `50725K45N40`
17	BAR, L. PILLION STEP Part Number : `50730KT7761`
18	BOLT, SOCKET, 8X20 Part Number : `90104K15920`
19	BOLT, SPECIAL, 5X14 Part Number : `90108K15900`
20	COLLAR, 6MM . Part Number : `90311K15900`
21	BOLT, CAP, 6X16 Part Number : `92501060160A`
22	NUT, FLANGE, 8MM Part Number : `9405008080`
23	WASHER, PLAIN, 6MM Part Number : `9410106000`
24	WASHER, PLAIN, 8MM Part Number : `9410208000`
25	IN, SPLIT, 1.6X15 Part Number : `9420116150`
26	PIN, SPLIT, 2.0X15 Part Number : `9420120150`
27	PIN C, PILLION STEP Part Number : `9501583000`
28	BOLT, FLANGE, 6X14 Part Number : `960010601407`
29	BALL, STEEL, #8(1/4) Part Number : `9621108000`
