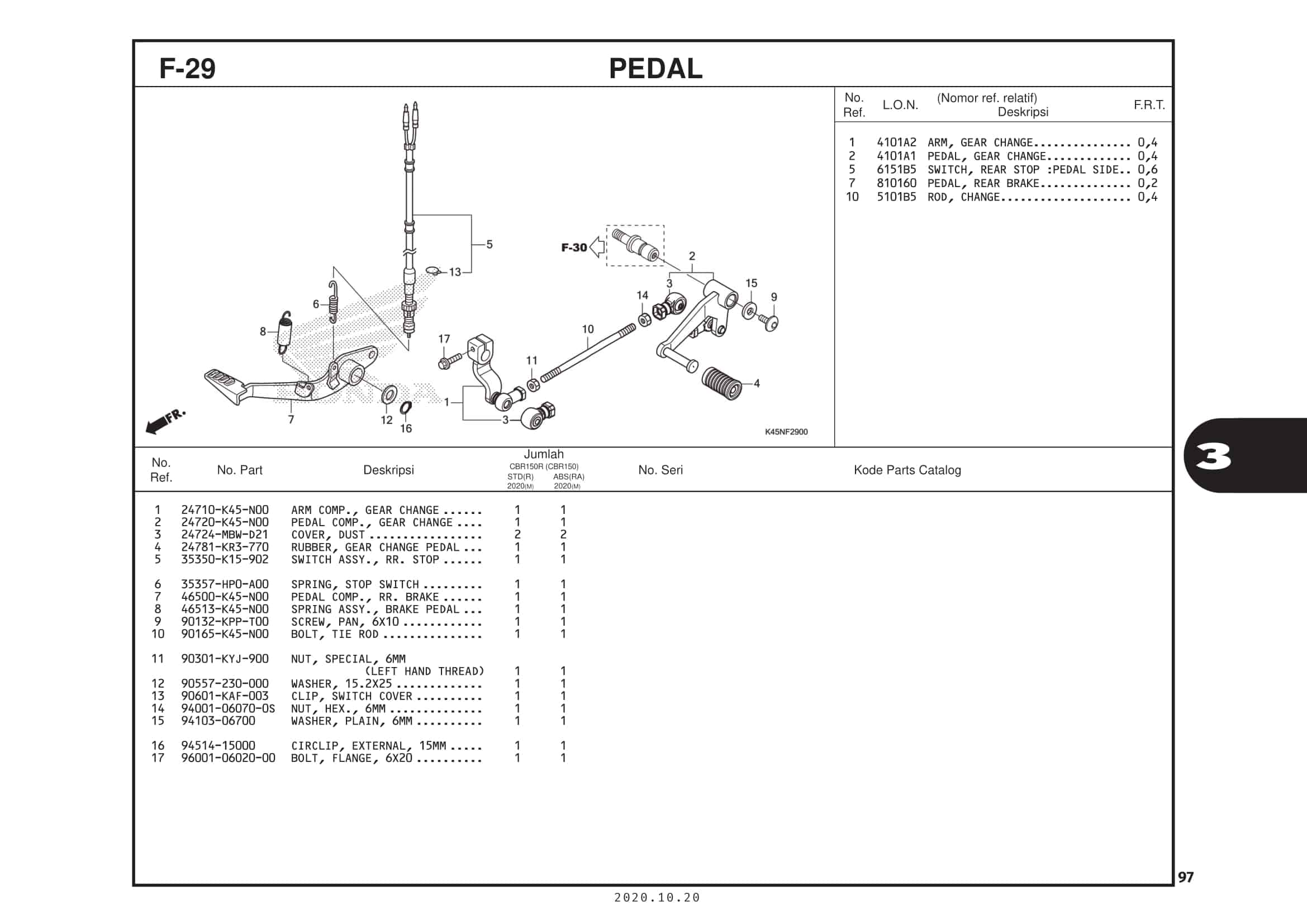

F-29 Pedal – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	ARM COMP., GEAR CHANGE Part Number : `24710K45N00`
2	PEDAL COMP., GEAR CHANGE Part Number : `24720K45N00`
3	COVER, DUST Part Number : `24724MBWD21`
4	RUBBER, GEAR CHANGE PEDAL Part Number : `24781KR3770`
5	SWITCH ASSY., RR. STOP Part Number : `35350K15902`
6	SPRING, STOP SWITCH Part Number : `35357HP0A00`
7	PEDAL COMP., RR. BRAKE Part Number : `46500K45N00`
8	SPRING ASSY., BRAKE PEDAL Part Number : `46513K45N00`
9	SCREW, PAN, 6X10 . Part Number : `90132KPPT00`
10	BOLT, TIE ROD Part Number : `90165K45N00`
11	NUT, SPECIAL, 6MM (LEFT HAND THREAD) Part Number : `90301KYJ900`
12	WASHER, 15.2X25 Part Number : `90557230000`
13	CLIP, SWITCH COVER Part Number : `90601KAF003`
14	NUT, HEX., 6MM Part Number : `94001060700S`
15	WASHER, PLAIN, 6MM Part Number : `9410306700`
16	CIRCLIP, EXTERNAL, 15MM Part Number : `9451415000`
17	BOLT, FLANGE, 6X20 Part Number : `960010602000`
