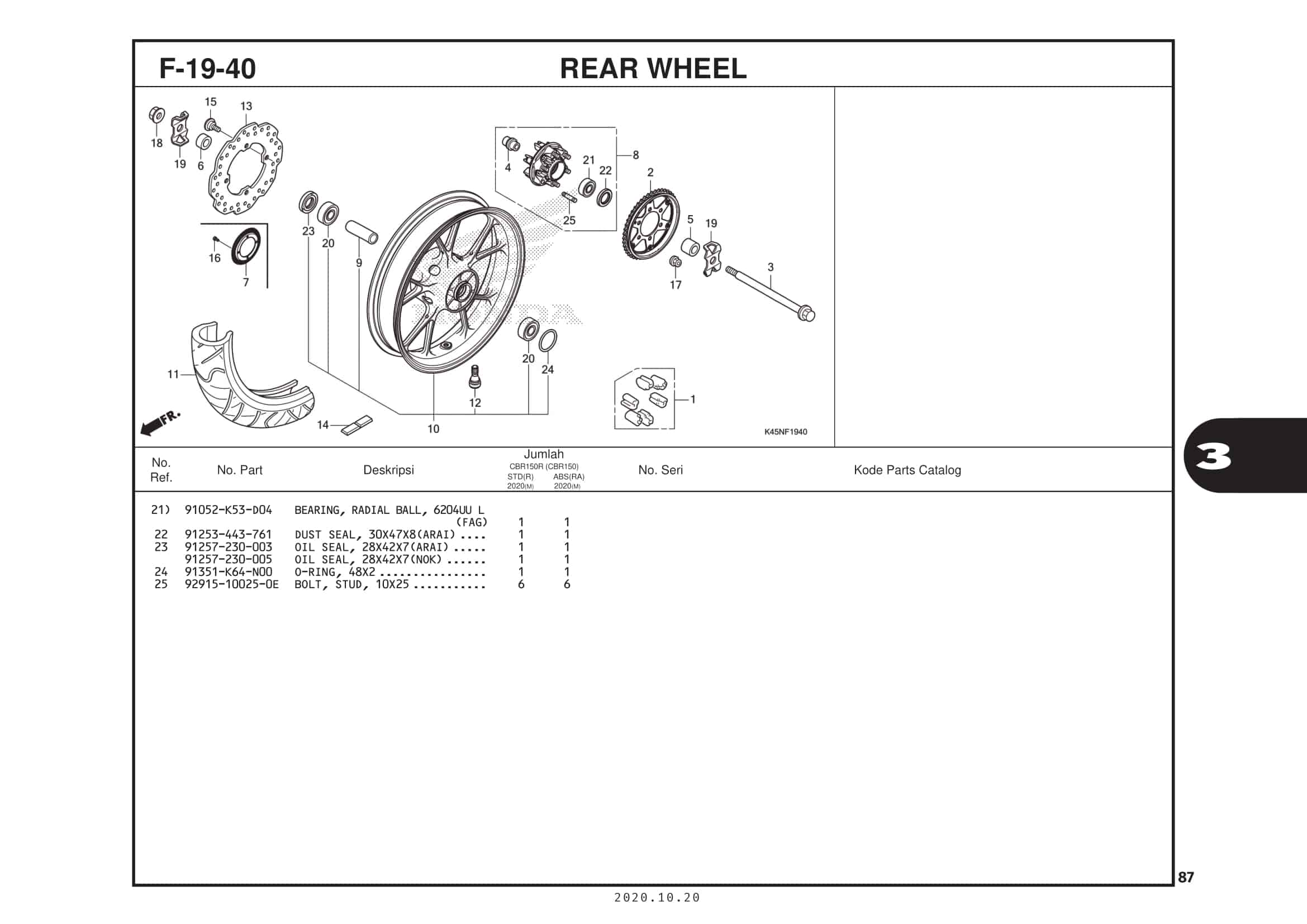

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | DAMPER SET, WHEEL | 06410KEA750 |
|
| 2 | SPROCKET COMP., FINAL DRIVEN (45T) | 41200K45NA0 |
|
| 2 | SPROCKET COMP., FINAL DRIVEN (45T)(RK JAPAN) | 41200K45NB1 | - |
| 2 | Drive Chain Kit | 06401K45NA0 |
|
| 3 | AXLE, RR. WHEEL | 42301K45N00 |
|
| 4 | SLEEVE, RR. WHEEL | 42303KPPT00 |
|
| 5 | COLLAR, L. RR. WHEEL SIDE | 42311K45NB0 |
|
| 6 | COLLAR, R. RR. WHEEL SIDE | 42313K45N00 |
|
| 7 | RING, RR. PULSER | 42515K45NM0 |
|
| 8 | FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 42615K45NA0ZB |
|
| 8 | Flange Sub Assy Gold | 42615K45NA0ZD |
|
| 8 | *YR271* .......NITRIC ORANGE | 42615K45NA0ZA |
|
| 9 | COLLAR, RR. AXLE DISTANCE | 42620K45NB0 |
|
| 10 | Wheel Sub Assy Rear (GOLD) | 42650K45NB0ZE |
|
| 10 | Wheel Rear Brown | 42601K45NB1MBR |
|
| 10 | Wheel Rear gold | 42601K45NB1SGM |
|
| 10 | WHEEL SUB ASSY., RR.(WL) *NH303M* MAT AXIS GRAY METALLIC | 42650K45NE0ZA |
|
| 10 | WHEEL SUB ASSY., RR.(WOL *NH303M* MAT AXIS GRAY METALLIC | 42650K45NA0ZB |
|
| 10 | YR271* .......NITRIC ORANGE | 42650K45NB0ZA |
|
| 10 | WHEEL SUB ASSY., RR.(WL) *NH303M* MAT AXIS GRAY METALLIC | 42650K45NZ0ZA |
|
| 10 | *NH303M* MAT AXIS GRAY METALLIC | 42650K45NF0ZA |
|
| 10 | WHEEL SUB ASSY., RR.(WOL) *NH303M* MAT AXIS GRAY METALLIC | 42650K45NB0ZB |
|
| 10 | Wheel Sub Assy Rear Brown | 42650K45NA0ZC |
|
| 11 | TIRE, RR.(IRC) (130/70-17M/C62P) | 42711K45N01 |
|
| 12 | VALVE, RIM(IRC) | 42753GM9743 |
|
| 12 | VALVE, RIM(TRITON) | 42753KWF901 |
|
| 12 | VALVE, RIM(DUNLOP) | 42753ML7004 |
|
| 13 | DISK, RR. BRAKE | 43251K15601 |
|
| 14 | WEIGHT, BALANCE(10G) | 44721MGHH21 |
|
| 14 | WEIGHT, BALANCE(15G) | 44722MGHH21 |
|
| 14 | WEIGHT, BALANCE(20G) | 44723MGHH21 |
|
| 15 | BOLT, BRAKE DISK, 8X24 | 90105KGH900 |
|
| 16 | BOLT, TORX, 5X10 | 90131K64N10 |
|
| 17 | NUT, U, 10MM | 90304KGH901 |
|
| 18 | NUT, U, 14MM(FUJI SEIMITSU) | 90305KCJ951 |
|
| 19 | WASHER, RR. AXLE | 90559K45N40 |
|
| 20 | BEARING, RADIAL BALL, 6302UU L (FUJIKOSHI) | 91051KVSF01 |
|
| 21 | BEARING, RADIAL BALL, 6204UU L (FAG) | 91052K53D04 |
|
| 22 | DUST SEAL, 30X47X8(ARAI) | 91253443761 |
|
| 23 | OIL SEAL, 28X42X7(ARAI) | 91257230003 |
|
| 23 | OIL SEAL, 28X42X7(NOK) | 91257230005 |
|
| 24 | O-RING, 48X2 | 91351K64N00 |
|
| 25 | BOLT, STUD, 10X25 | 92915100250E |
|
