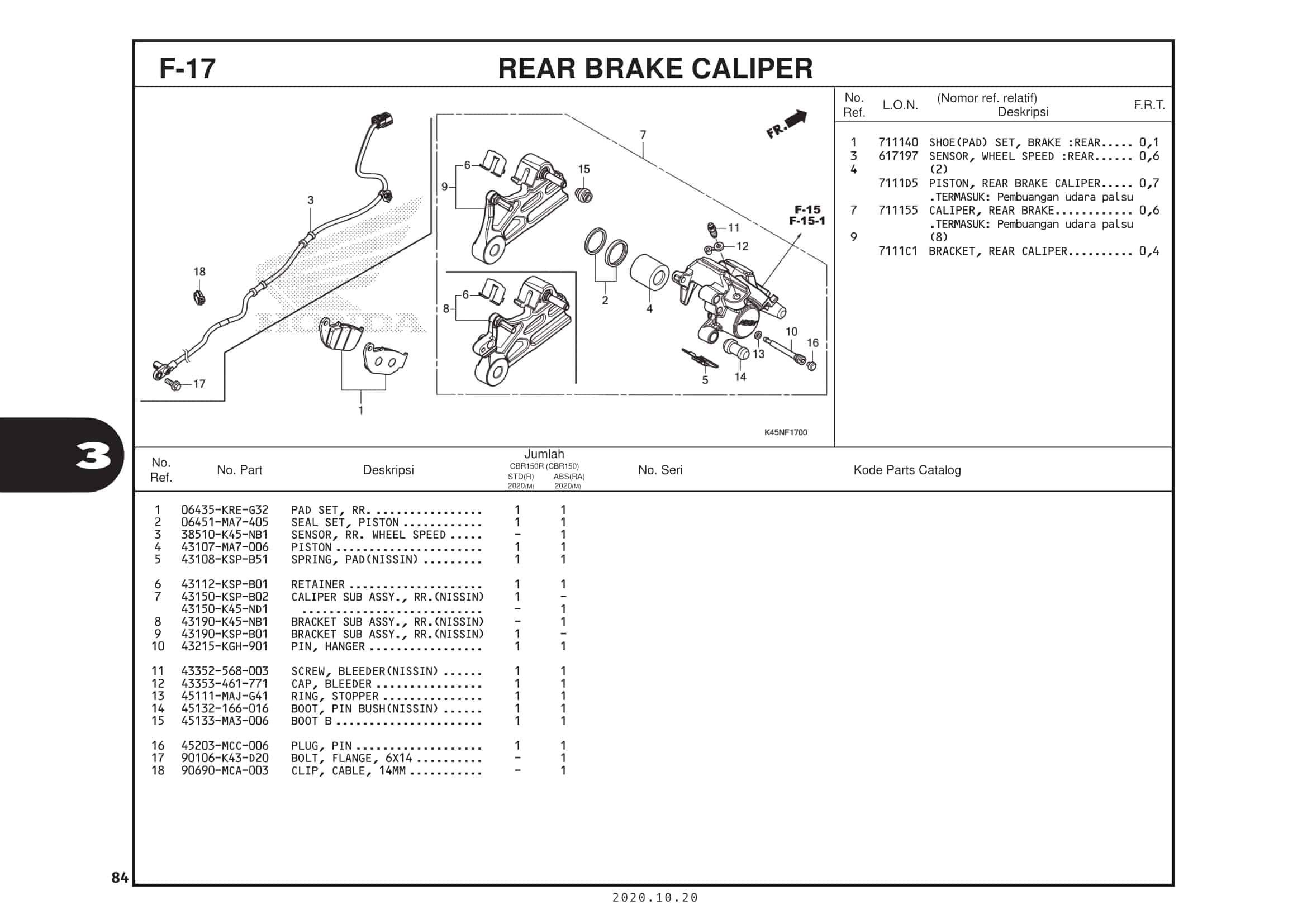

F-17 Rear Brake Caliper – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	PAD SET, RR Part Number : `06435KREG32`
2	SEAL SET PISTON Part Number : `06451MA7405`
3	SENSOR,WHEEL SPD RR Part Number : `38510K45NB1`
4	PISTON Part Number : `43107MA7006`
5	PAD SPRING Part Number : `43108KSPB51`
6	RETAINER Part Number : `43112KSPB01`
7	CALIPER SUB ASSY., RR. Part Number : `43150KSPB02`
7	CALIPER SUB ASSY,RR Part Number : `43150K45ND1`
7	BRKT SUB ASSY,RR Part Number : `43190K45NB1`
9	BRACKET RR SUB ASSY Part Number : `43190KSPB01`
10	PIN HANGER Part Number : `43215KGH901`
11	SCREW,BLEEDER Part Number : `43352568003`
12	CAP,BLEEDER Part Number : `43353461771`
13	O-RING,2.5X1.5 Part Number : `45111MAJG41`
14	BUSH PIN Part Number : `45132166016`
15	BOOT B,PIN Part Number : `45133MA3006`
16	PLUG,PIN Part Number : `45203MCC006`
17	BOLT FLANGE SH 6X14 Part Number : `90106K43D20`
18	CLIP CABLE 14MM Part Number : `90690MCA003`
