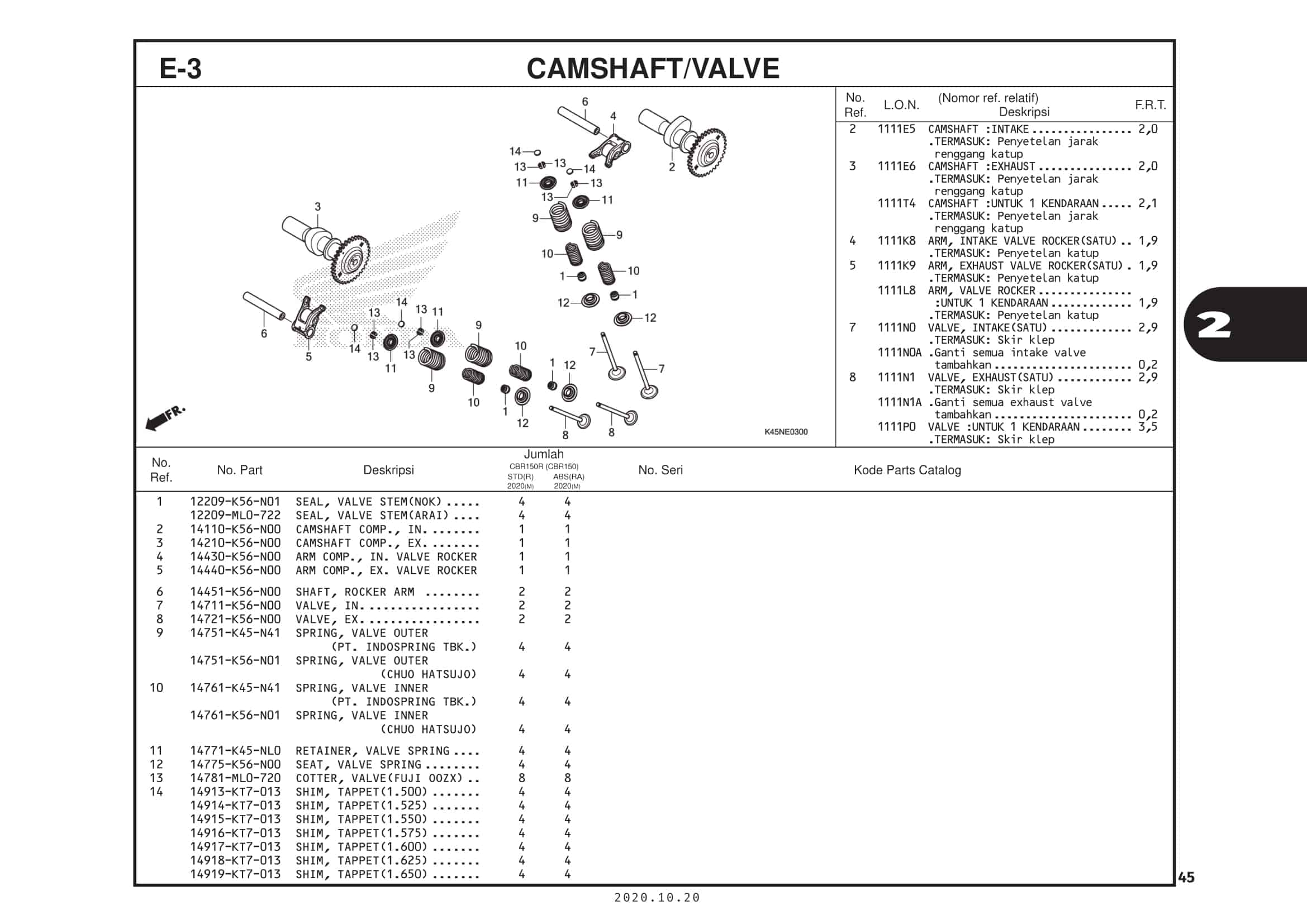

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL, VALVE STEM(NOK) | 12209K56N01 |
|
| 2 | SEAL, VALVE STEM(ARAI) | 12209ML0722 |
|
| 2 | CAMSHAFT COMP., IN | 14110K56N00 |
|
| 3 | CAMSHAFT COMP., EX | 14210K56N00 |
|
| 4 | ARM COMP., IN. VALVE ROCKER | 14430K56N00 |
|
| 5 | ARM COMP., EX. VALVE ROCKER | 14440K56N00 |
|
| 6 | SHAFT, ROCKER ARM | 14451K56N00 |
|
| 7 | VALVE, IN | 14711K56N00 |
|
| 8 | VALVE, EX | 14721K56N00 |
|
| 9 | SPRING, VALVE OUTER (PT. INDOSPRING TBK.) | 14751K45N41 |
|
| 9 | SPRING, VALVE OUTER (CHUO HATSUJO) | 14751K56N01 |
|
| 10 | SPRING, VALVE INNER (PT. INDOSPRING TBK.) | 14761K45N41 |
|
| 10 | SPRING, VALVE INNER (CHUO HATSUJO) | 14761K56N01 |
|
| 11 | RETAINER, VALVE SPRING | 14771K45NL0 |
|
| 12 | SEAT, VALVE SPRING | 14775K56N00 |
|
| 13 | COTTER, VALVE(FUJI OOZX) | 14781ML0720 |
|
| 14 | SHIM, TAPPET(1.500) | 14913KT7013 |
|
| 14 | SHIM, TAPPET(1.525) | 14914KT7013 |
|
| 14 | SHIM, TAPPET(1.550) | 14915KT7013 |
|
| 14 | SHIM, TAPPET(1.575) | 14916KT7013 |
|
| 14 | SHIM, TAPPET(1.600) | 14917KT7013 |
|
| 14 | SHIM, TAPPET(1.625) | 14918KT7013 |
|
| 14 | SHIM, TAPPET(1.650) | 14919KT7013 |
|
| 14 | SHIM, TAPPET(1.675) | 14920KT7013 |
|
| 14 | SHIM, TAPPET(1.700) | 14921KT7013 |
|
| 14 | SHIM, TAPPET(1.725) | 14922KT7013 |
|
| 14 | SHIM, TAPPET(1.750) | 14923KT7013 |
|
| 14 | SHIM, TAPPET(1.775) | 14924KT7013 |
|
| 14 | SHIM, TAPPET(1.800) | 14925KT7013 |
|
| 14 | SHIM, TAPPET(1.825) | 14926KT7013 |
|
| 14 | SHIM, TAPPET(1.850) | 14927KT7013 |
|
| 14 | SHIM, TAPPET(1.875) | 14928KT7013 |
|
| 14 | SHIM, TAPPET(1.900) | 14929KT7013 |
|
| 14 | SHIM, TAPPET(1.925) | 14930KT7013 |
|
| 14 | SHIM, TAPPET(1.950 | 14931KT7013 |
|
| 14 | SHIM, TAPPET(1.975) | 14932KT7013 |
|
| 14 | SHIM, TAPPET(2.000) | 14933KT7013 |
|
| 14 | SHIM, TAPPET(2.025) | 14934KT7013 |
|
| 14 | SHIM, TAPPET(2.050) | 14935KT7013 |
|
| 14 | SHIM, TAPPET(2.075) | 14936KT7013 |
|
| 14 | SHIM, TAPPET(2.100) | 14937KT7013 |
|
| 14 | SHIM, TAPPET(2.125) | 14938KT7013 |
|
| 14 | SHIM, TAPPET(2.150) | 14939KT7013 |
|
| 14 | SHIM, TAPPET(2.175) | 14940KT7013 |
|
| 14 | SHIM, TAPPET(2.200) | 14941KT7013 |
|
| 14 | SHIM, TAPPET(2.225 | 14942KT7013 |
|
| 14 | SHIM, TAPPET(2.250) | 14943KT7013 |
|
| 14 | SHIM, TAPPET(2.275) | 14944KT7013 |
|
| 14 | SHIM, TAPPET(2.300) | 14945KT7013 |
|
| 14 | SHIM, TAPPET(2.325) | 14946KT7013 |
|
| 14 | SHIM, TAPPET(2.350) | 14947KT7013 |
|
| 14 | SHIM, TAPPET(2.375) | 14948KT7013 |
|
