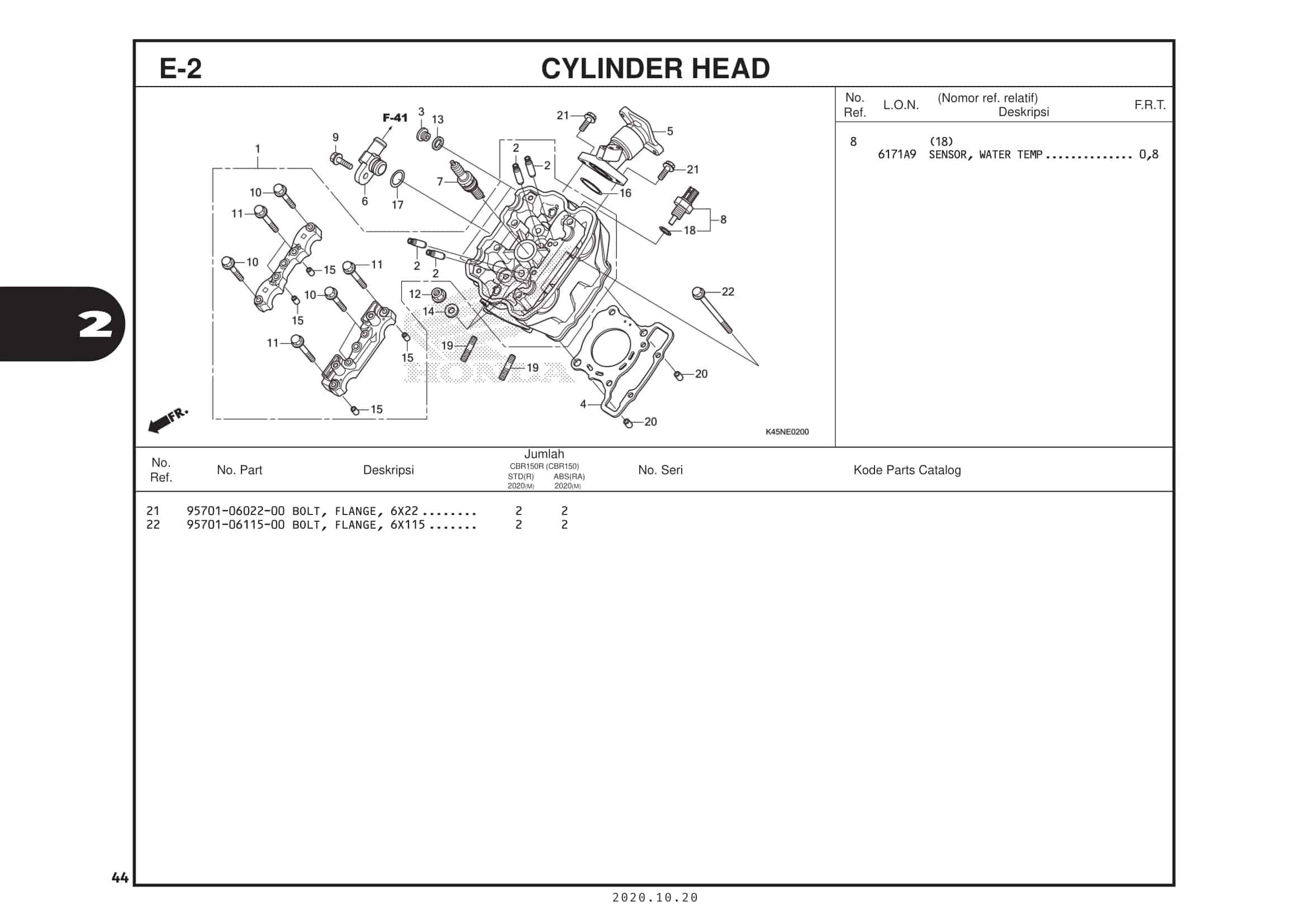

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD ASSY, CYLINDER | 12010K56N00 |
|
| 2 | GUIDE,EX VALVE(OV | 12205KYJ305 |
|
| 3 | BOLT,SEALING 12MM | 12207KYJ900 |
|
| 4 | GASKET CYLINDER HEAD(NLK) | 12251K56N02 |
|
| 5 | PIPE ASSY., IN. | 17111K15920 |
|
| 6 | JOINT,WATER | 19064KPP900 |
|
| 7 | SPARK PLUG MR9C9N (NGK) | 31919K25601 |
|
| 7 | SPARK PLUG U27EPR-N9 (DS) | 31919K25602 |
|
| 8 | SENSOR ASSY., WATER TEMP | 37870KZR601 |
|
| 9 | BOLT,FLANGE,NSHF,6X22 | 90004GHB660 |
|
| 10 | BOLT FLANGE 6X32 | 90017K56N00 |
|
| 11 | BOLT FLANGE 6X40 | 90019K56N00 |
|
| 12 | NUT FLANGE,8MM | 90202KGB610 |
|
| 13 | WASHER,12.2X17X1.5 | 90418KYJ900 |
|
| 14 | WASHER 8MM | 90483K15900 |
|
| 15 | PIN DOWEL 8X14 | 90702KRM840 |
|
| 15 | PIN DOWEL 8X14 | 9430108140 |
|
| 16 | O-RING, IN. PIPE | 91301K56N00 |
|
| 17 | O-RING,14.8X1.9 | 91301KV7671 |
|
| 18 | O-RING, 9.5X1.9 | 91307PLC004 |
|
| 19 | BOLT STUD 8X25 | 92900080250E |
|
| 20 | PIN DOWEL 10X12 | 9430110120 |
|
| 21 | BOLT FLANGE 6X22 | 957010602200 |
|
| 22 | BOLT FLANGE 6X115 | 957010611500 |
|
