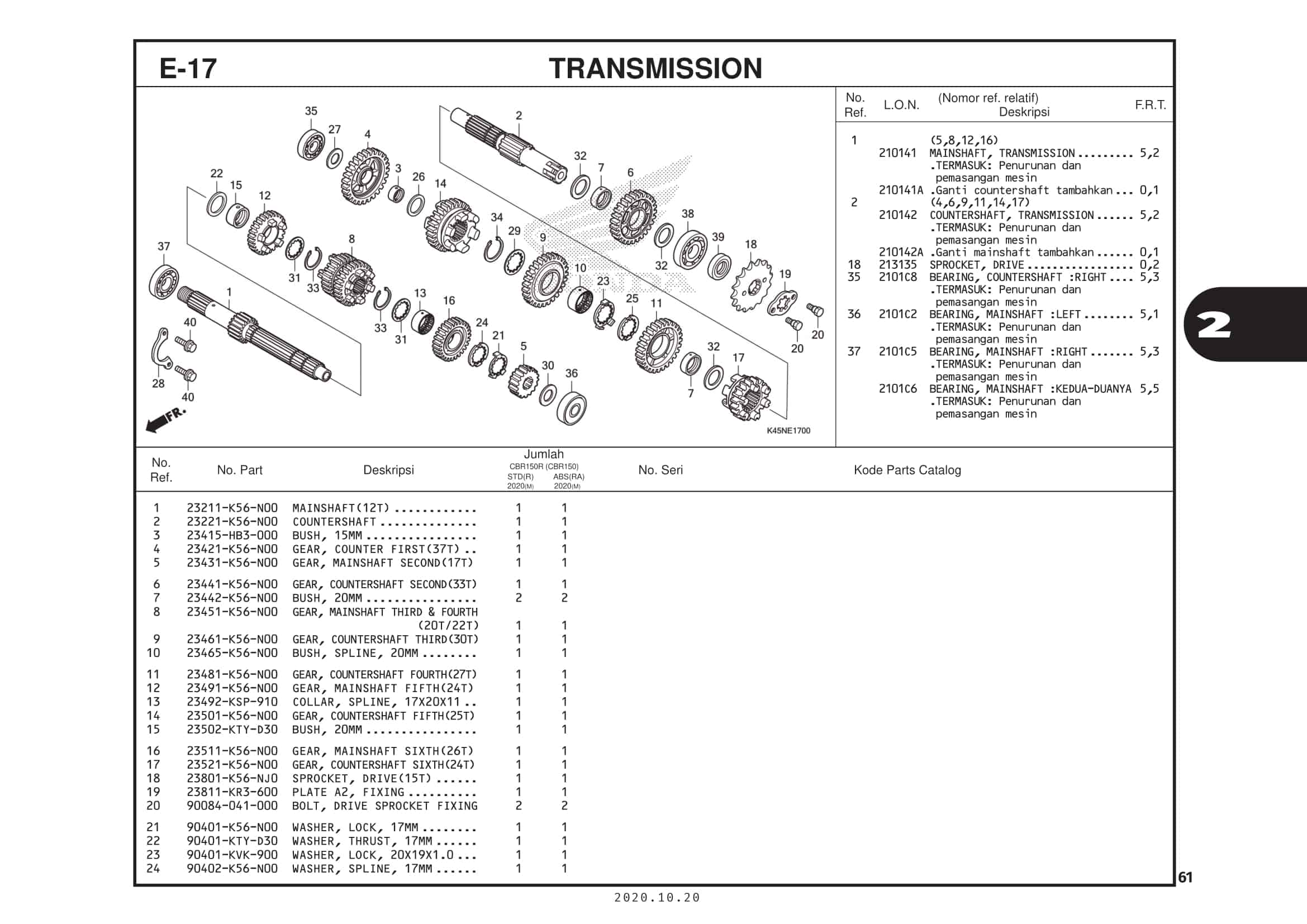

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | MAINSHAFT(12T) | 23211K56N00 |
|
| 2 | COUNTERSHAFT | 23221K56N00 |
|
| 3 | BUSH, 15MM | 23415HB3000 |
|
| 4 | GEAR, COUNTER FIRST(37T) | 23421K56N00 |
|
| 5 | GEAR, MAINSHAFT SECOND(17T) | 23431K56N00 |
|
| 6 | GEAR, COUNTERSHAFT SECOND(33T) | 23441K56N00 |
|
| 7 | BUSH, 20MM | 23442K56N00 |
|
| 8 | GEAR, MAINSHAFT THIRD & FOURTH (20T/22T) | 23451K56N00 |
|
| 9 | GEAR, COUNTERSHAFT THIRD(30T) | 23461K56N00 |
|
| 10 | BUSH, SPLINE, 20MM | 23465K56N00 |
|
| 11 | GEAR, COUNTERSHAFT FOURTH(27T) | 23481K56N00 |
|
| 12 | GEAR, MAINSHAFT FIFTH(24T) | 23491K56N00 |
|
| 13 | COLLAR, SPLINE, 17X20X11 | 23492KSP910 |
|
| 14 | GEAR, COUNTERSHAFT FIFTH(25T) | 23501K56N00 |
|
| 15 | BUSH, 20MM | 23502KTYD30 |
|
| 16 | GEAR, MAINSHAFT SIXTH(26T) | 23511K56N00 |
|
| 17 | GEAR, COUNTERSHAFT SIXTH(24T) | 23521K56N00 |
|
| 18 | SPROCKET, DRIVE(15T) | 23801K56NJ0 |
|
| 19 | PLATE A2, FIXING | 23811KR3600 |
|
| 20 | BOLT, DRIVE SPROCKET FIXING | 90084041000 |
|
| 21 | WASHER, LOCK, 17MM | 90401K56N00 |
|
| 22 | WASHER, THRUST, 17MM | 90401KTYD30 |
|
| 23 | WASHER, LOCK, 20X19X1.0 | 90401KVK900 |
|
| 24 | WASHER, SPLINE, 17MM | 90402K56N00 |
|
| 25 | WASHER, THRUST, 20X19X1.0 | 90402KVK900 |
|
| 26 | WASHER, THRUST, 15MM | 90412187000 |
|
| 27 | WASHER, SPECIAL, 15MM | 90412K56N00 |
|
| 28 | PLATE, BEARING HOLDER | 90441KW7930 |
|
| 29 | WASHER, SPLINE, 20MM | 90451K56N00 |
|
| 30 | WASHER, SPECIAL, 12MM | 90452KGH900 |
|
| 31 | WASHER, SPLINE, 17X23X1.6 | 90452KRM840 |
|
| 32 | WASHER, 25X20.2X1 | 90454KPH900 |
|
| 33 | CIRCLIP, 17MM | 90601KRM840 |
|
| 34 | SET RING, 20MM | 90605KVS900 |
|
| 35 | BEARING, RADIAL BALL, 6202U (SKF) | 91004K56N01 |
|
| 36 | BEARING, RADIAL BALL, 6201U (SKF) | 91005K56N01 |
|
| 37 | BEARING, RADIAL BALL, 6203 (SKF) | 91006K56N01 |
|
| 37 | BEARING, RADIAL BALL, 6203 | 91006K56N02 |
|
| 38 | BEARING, RADIAL BALL, 6204 (SKF) | 91010K56N01 |
|
| 39 | OIL SEAL, 20X34X7 | 91216KGH901 |
|
| 40 | BOLT, FLANGE, 6X14 | 957010601400 |
|
