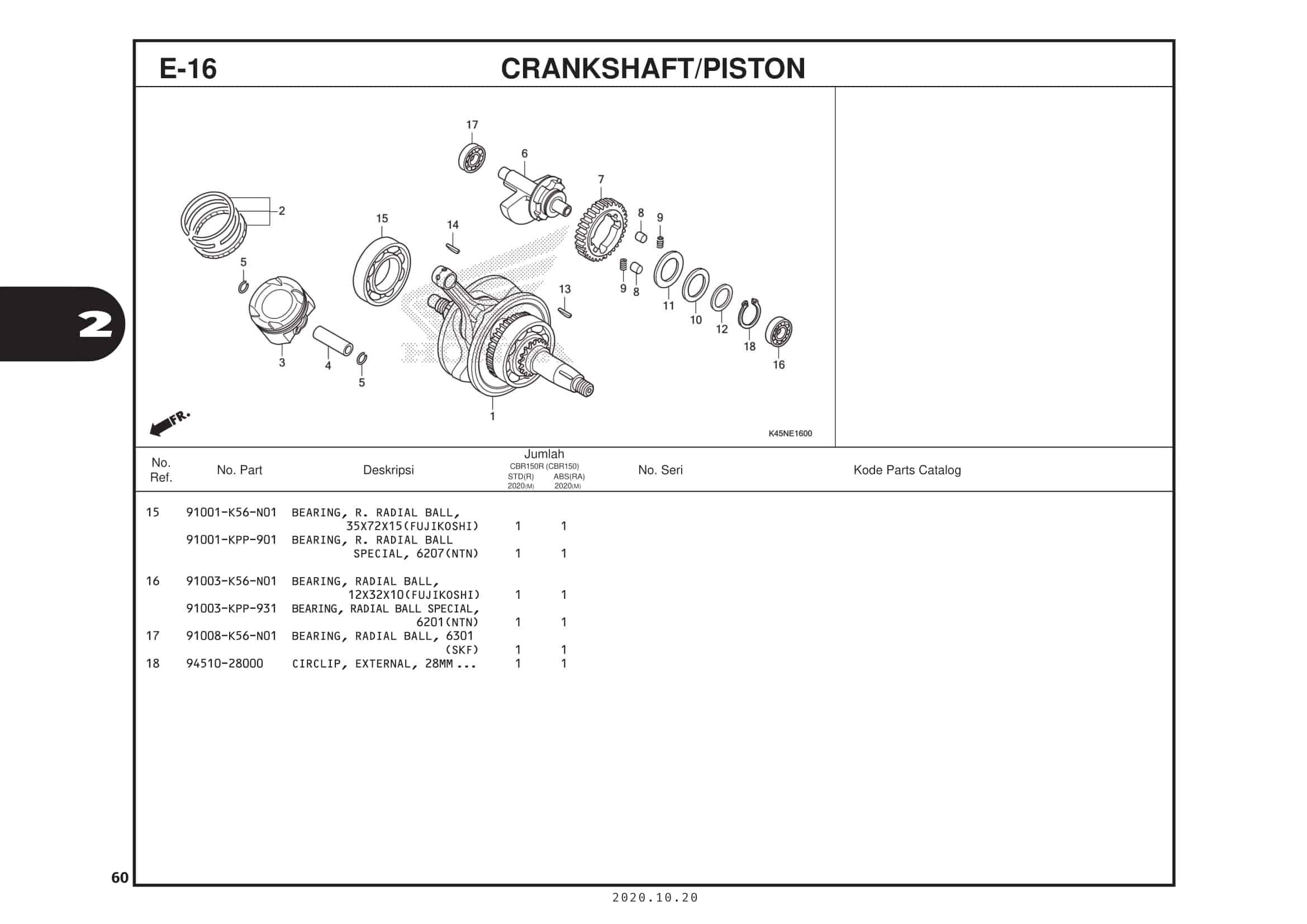

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CRANKSHAFT COMP | 13000K45NA0 |
|
| 2 | RING SET, PISTON(STD.) | 13011K56N01 |
|
| 2 | RING SET, PISTON(O.S. 0.25) | 13021K56N01 |
|
| 2 | RING SET, PISTON(O.S. 0.50) | 13031K56N01 |
|
| 3 | PISTON(STD.) | 13101K56P00 |
|
| 3 | PISTON(O.S. 0.25) | 13102K56P00 |
|
| 3 | PISTON(O.S. 0.50) | 13103K56P00 |
|
| 4 | PIN, PISTON | 13111K56N00 |
|
| 5 | CLIP, PISTON PIN, 14MM | 13115KZY700 |
|
| 6 | WEIGHT COMP., BALANCER | 13420K56N00 |
|
| 7 | GEAR A, BALANCER DRIVEN(43T) (WHITE) | 13422K45NA0 |
|
| 7 | GEAR B, BALANCER DRIVEN(43T) (BLUE) | 13423K45NA0 |
|
| 7 | GEAR C, BALANCER DRIVEN(43T) (YELLOW) | 13424K45NA0 |
|
| 8 | RUBBER, BALANCER DUMPER (PT. CATURINDO AGUNG JAYA RUB) | 13425K64NA1 |
|
| 8 | RUBBER, BALANCER DUMPER (MSC PR TWO LIMITED) | 13425KGH901 |
|
| 8 | RUBBER, BALANCER DUMPER(IKP) | 13425KWC901 |
|
| 9 | SPRING, BALANCER GEAR | 13427KPP860 |
|
| 10 | SPRING, THRUST | 13538KGH900 |
|
| 11 | WASHER, 28.2X45X1.0 | 90401KPP900 |
|
| 12 | WASHER, 28.1X36X1.8 | 90402KRM840 |
|
| 13 | KEY, WOODRUFF, 4MM | 90741KFB000 |
|
| 14 | KEY, WOODRUFF, 4MM | 90741KGH900 |
|
| 15 | BEARING, R. RADIAL BALL, 35X72X15(FUJIKOSHI) | 91001K56N01 |
|
| 15 | BEARING, R. RADIAL BALL SPECIAL, 6207(NTN) | 91001KPP901 |
|
| 16 | BEARING, RADIAL BALL, 12X32X10(FUJIKOSHI) | 91003K56N01 |
|
| 16 | BEARING, RADIAL BALL SPECIAL, 6201(NTN) | 91003KPP931 |
|
| 17 | BEARING, RADIAL BALL, 6301 (SKF) | 91008K56N01 |
|
| 18 | CIRCLIP, EXTERNAL, 28MM | 9451028000 |
|
