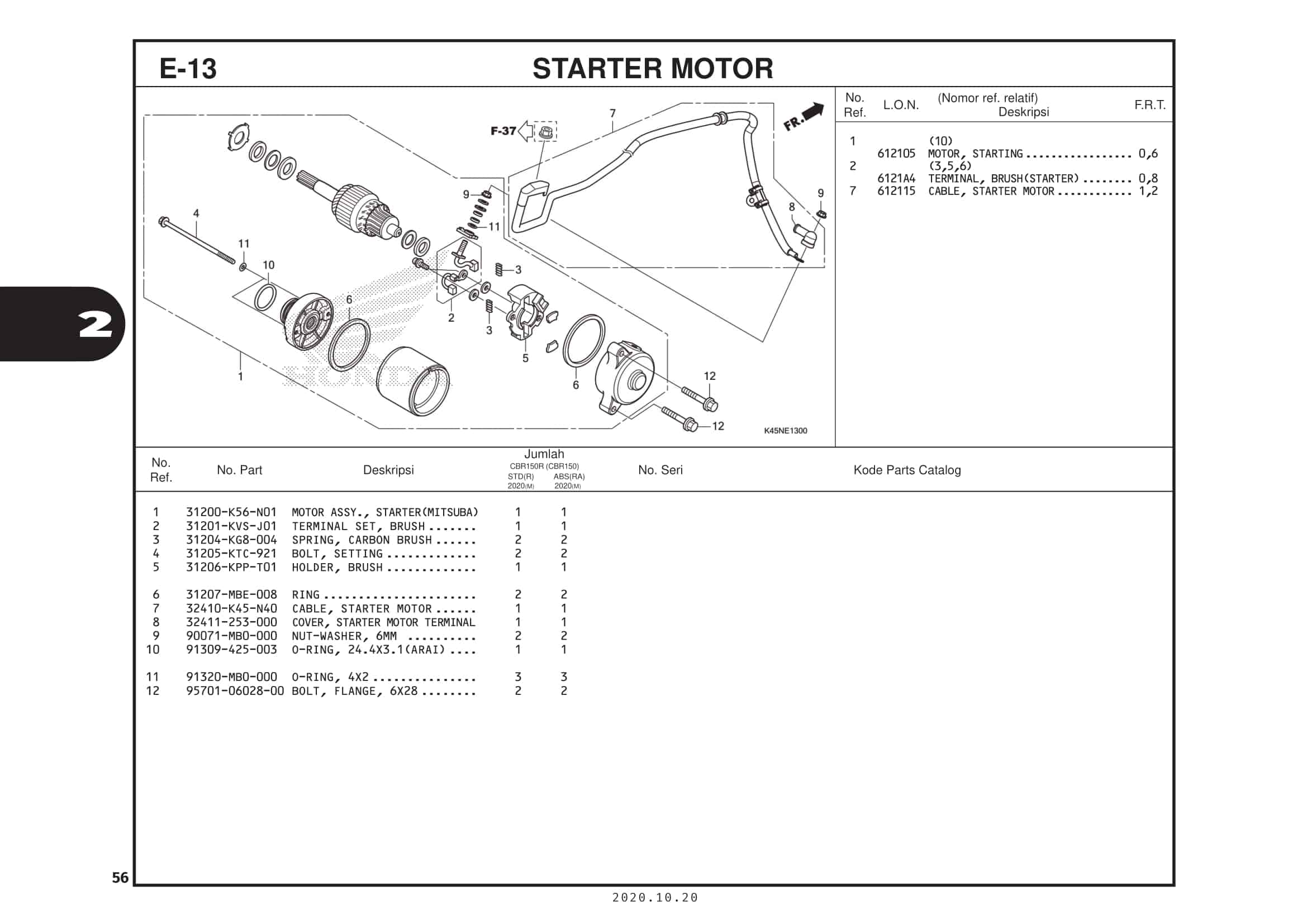

E-13 Starter Motor – Katalog Suku Cadang Honda New CBR 150R K45R

#	Informasi Produk	Visual
1	MOTOR ASSY., STARTER(MITSUBA) Part Number : `31200K56N01`
2	TERMINAL SET, BRUSH Part Number : `31201KVSJ01`
3	SPRING, CARBON BRUSH Part Number : `31204KG8004`
4	BOLT, SETTING Part Number : `31205KTC921`
5	HOLDER, BRUSH Part Number : `31206KPPT01`
6	RING Part Number : `31207MBE008`
7	CABLE, STARTER MOTOR Part Number : `32410K45N40`
8	COVER, STARTER MOTOR TERMINAL Part Number : `32411253000`
9	NUT-WASHER, 6MM Part Number : `90071MB0000`
10	O-RING, 24.4X3.1(ARAI) Part Number : `91309425003`
11	O-RING, 4X2 Part Number : `91320MB0000`
12	BOLT, FLANGE, 6X28 Part Number : `957010602800`
