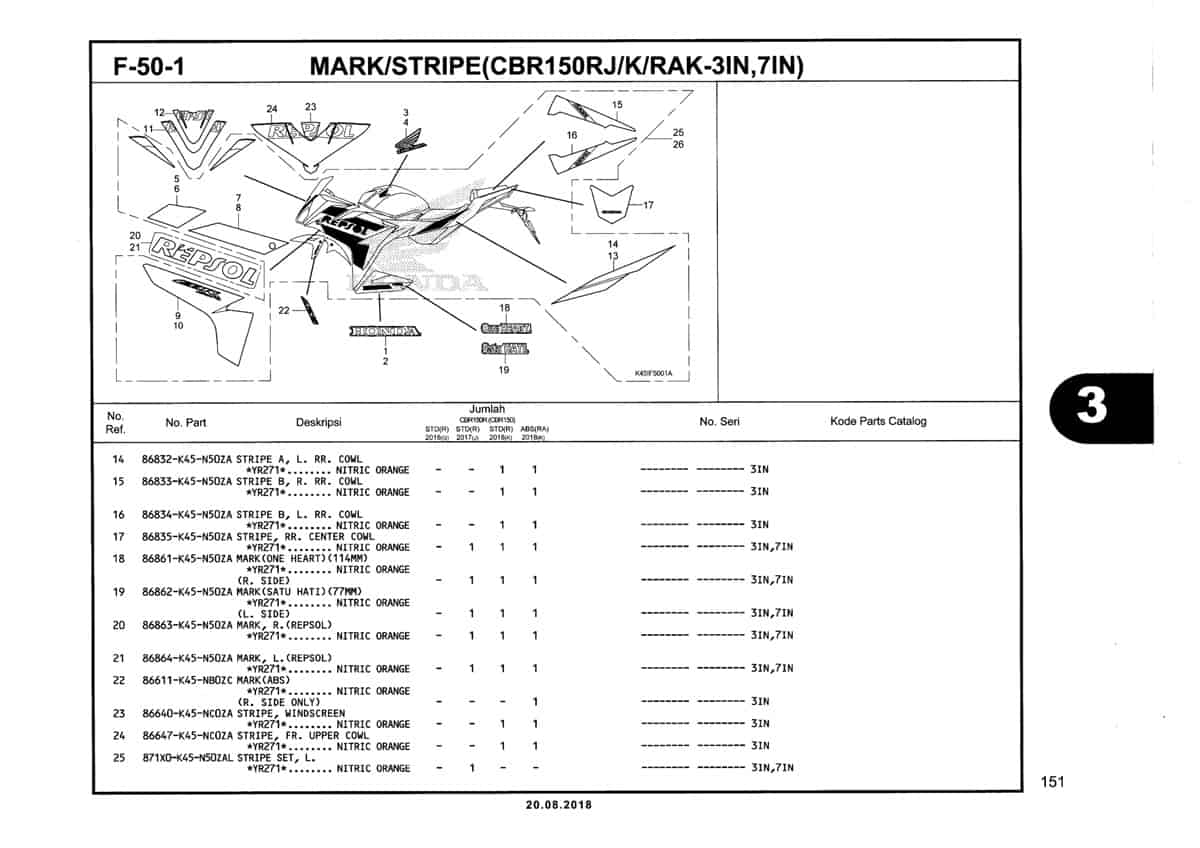

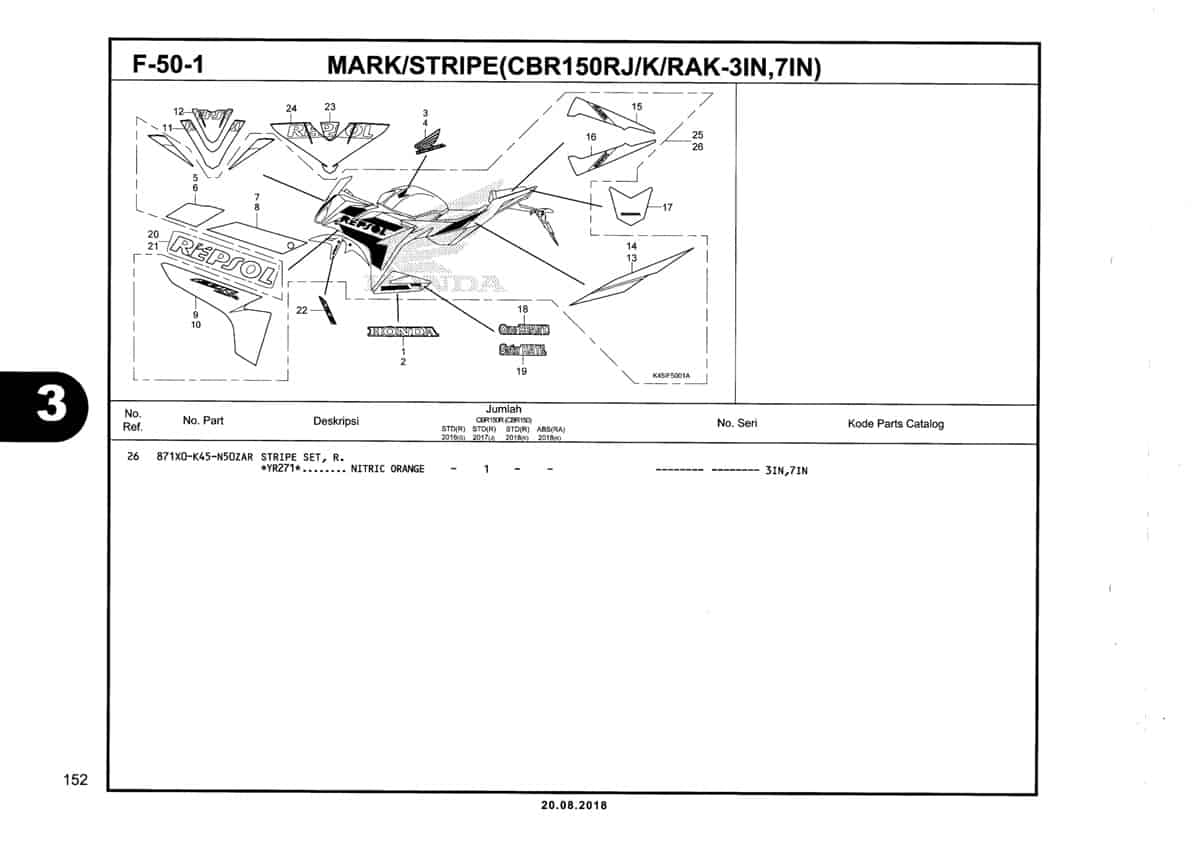

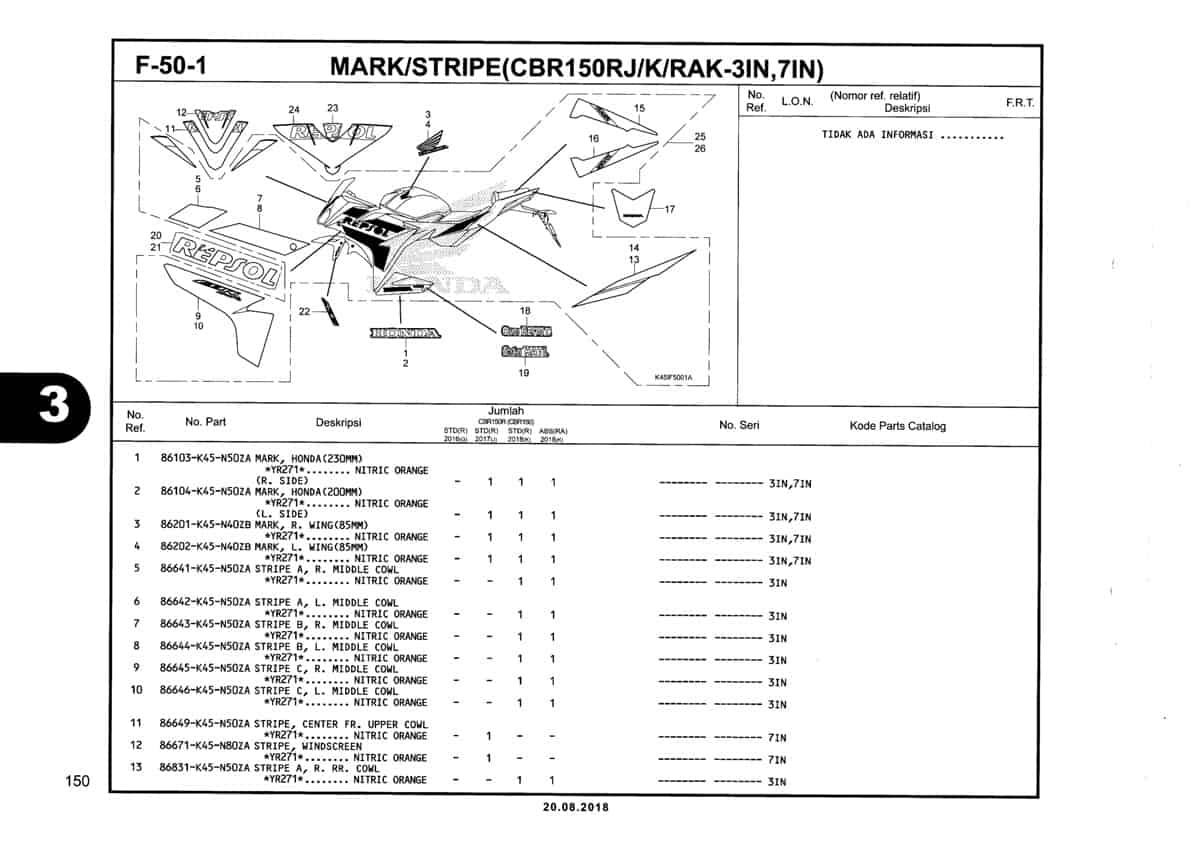

F50-1 – Mark/Stripe (CBR150RJ/K/RAK-3IN,7IN) – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Mark Honda (230MM) R Side 1 Part Number : `86103K45N50ZA`
2	Mark Honda (200MM) L Side 1 Part Number : `86104K45N50ZA`
3	Mark R Wing (85MM) 3 Part Number : `86201K45N40ZB`
4	Mark L Wing (85MM) 3 Part Number : `86202K45N40ZB`
5	Stripe A R Middle Cowl 1 Part Number : `86641K45N50ZA`
6	Stripe A L Middle Cowl 1 Part Number : `86642K45N50ZA`
7	Stripe B R Middle Cowl 1 Part Number : `86643K45N50ZA`
8	Stripe B L Middle Cowl 1 Part Number : `86644K45N50ZA`
9	Stripe C R Middle Cowl 1 Part Number : `86645K45N50ZA`
10	Stripe C L Middle Cowl 1 Part Number : `86646K45N50ZA`
11	Stripe Ctr FR Upper Cowl 1 Part Number : `86649K45N50ZA`
12	Stripe,Wind Screen Type 1 Part Number : `86671K45N80ZA`
13	Stripe A R RR Cowl 1 Part Number : `86831K45N50ZA`
14	Stripe A L RR Cowl 1 Part Number : `86832K45N50ZA`
15	Stripe B R RR Cowl 1 Part Number : `86833K45N50ZA`
16	Stripe B L RR Cowl 1 Part Number : `86834K45N50ZA`
17	Stripe RR Center Cowl 1 Part Number : `86835K45N50ZA`
18	Mark (ONE HEART)(114MM) R 1 Part Number : `86861K45N50ZA`
19	Mark(SATU HATI)(77MM) L 1 Part Number : `86862K45N50ZA`
20	Mark R(REPSOL) 1 Part Number : `86863K45N50ZA`
21	Mark L(REPSOL) 1 Part Number : `86864K45N50ZA`
22	Mark, ABS Type 1 Part Number : `86611K45NB0ZC`
23	Stripe,Wind Screen Type 1 Part Number : `86640K45NC0ZA`
24	Stripe,FR Upper Cowl TYP 1 Part Number : `86647K45NC0ZA`
25	Stripe Set L Orange White Part Number : `871X0K45N50ZAL`
26	Stripe Set R Orange White Part Number : `871X0K45N50ZAR`
