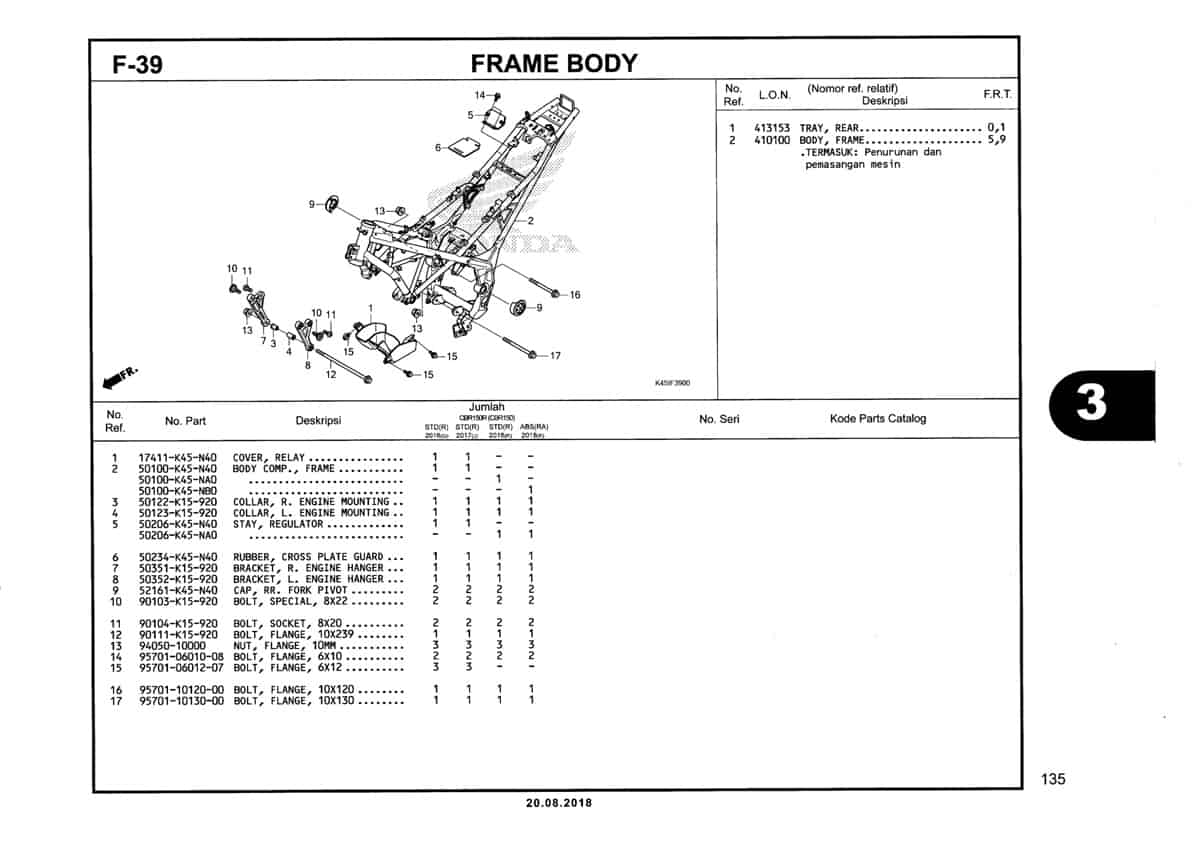

F39 – Frame Body – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
2	Frame Body Comp Part Number : `50100K45NA0`
2	Frame Body Comp ABS Part Number : `50100K45NB0`
3	Collar R Engine Mounting Part Number : `50122K15920`
4	Collar L Engine Mounting Part Number : `50123K15920`
5	Stay,Regulator Part Number : `50206K45NA0`
6	Rubber, Cross Plate Guard Part Number : `50234K45N40`
7	Bracket, R. Engine Hanger Part Number : `50351K15920`
8	Bracket, L. Engine Hanger Part Number : `50352K15920`
9	Cap, RR. Fork Pivot Part Number : `52161K45N40`
10	Bolt, Special, 8X22 Part Number : `90103K15920`
11	Bolt, Socket, 8X20 Part Number : `90104K15920`
12	Bolt Flange, 10X239 Part Number : `90111K15920`
13	Nut Flange 10MM Part Number : `9405010000`
14	Bolt Flange 6X10 Part Number : `957010601008`
16	Bolt Flange 10X120 Part Number : `957011012000`
16	Bolt Flange 10X120 Part Number : `957011012008`
17	Bolt Flange 10X130 Part Number : `957011013000`
