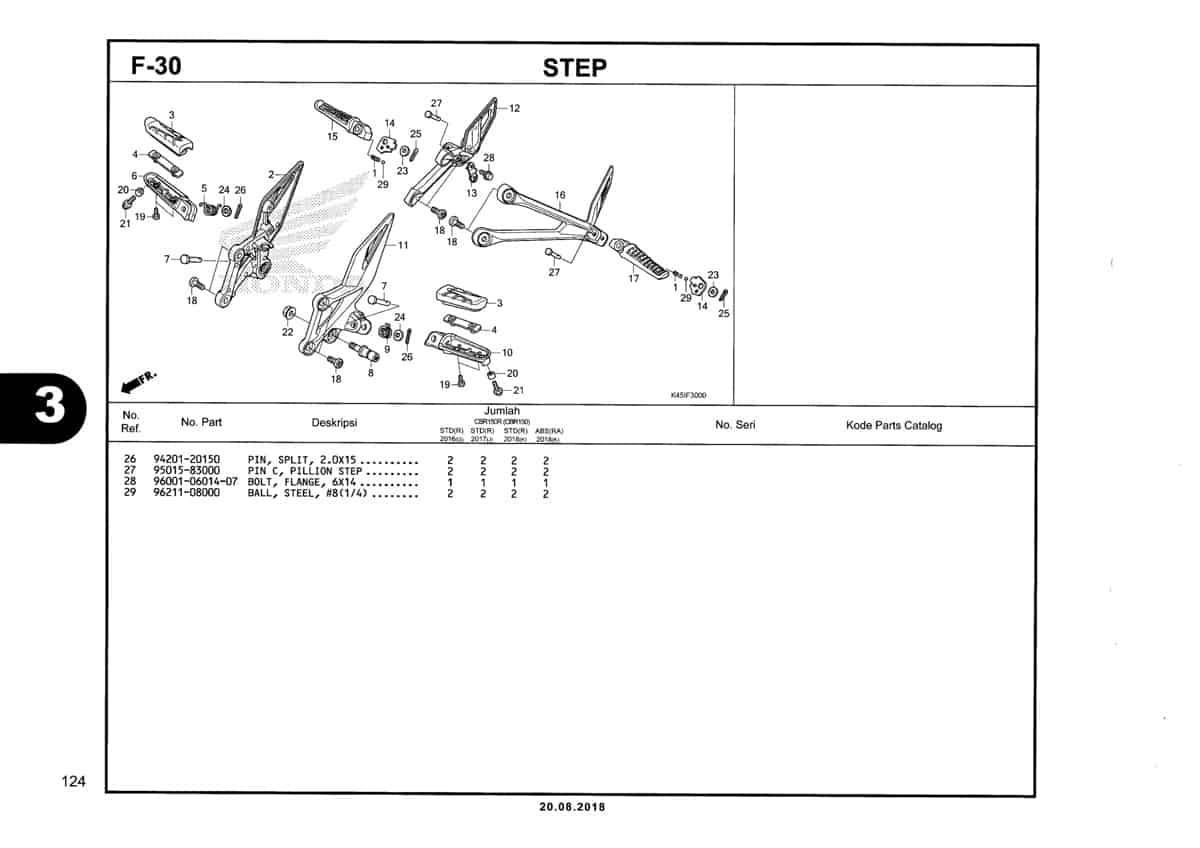

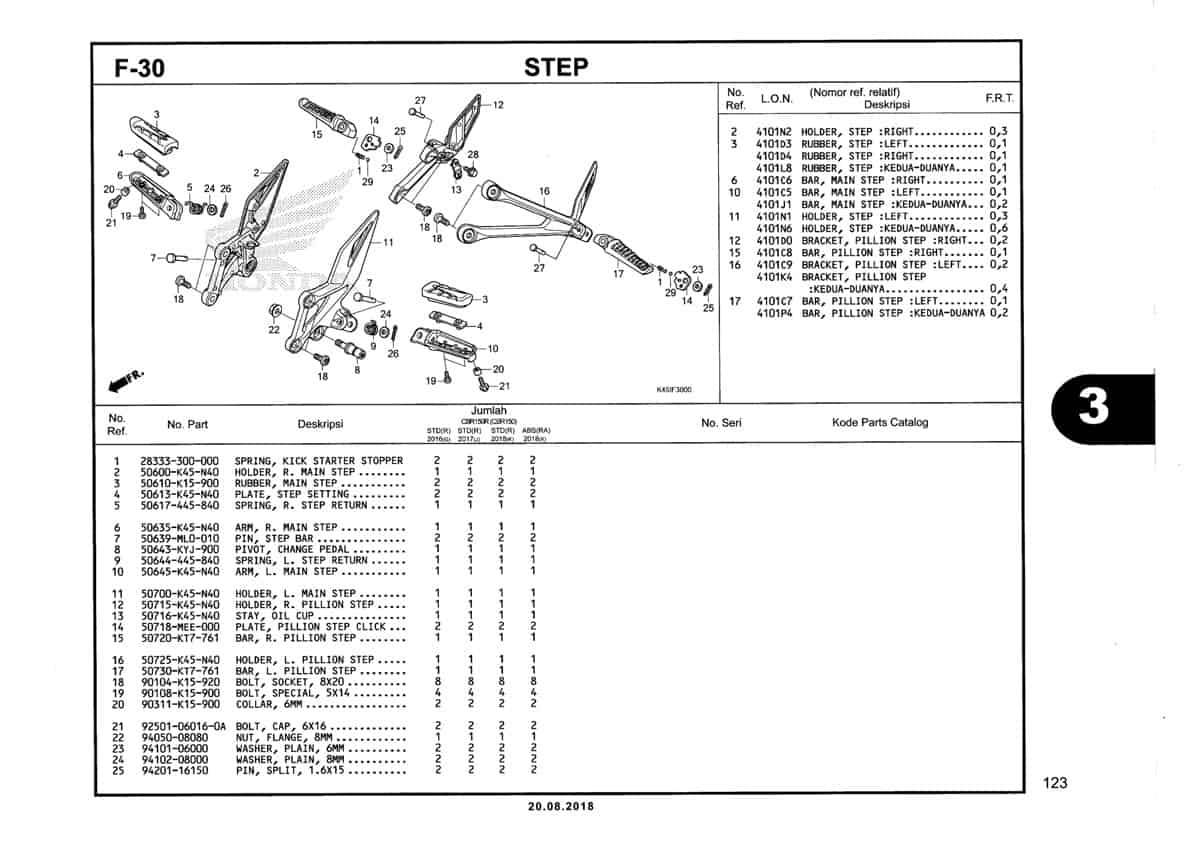

F30 – Step – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Spring Kick Starter Stpr Part Number : `28333300000`
2	Holder, R. Main Step Part Number : `50600K45N40`
3	Rubber Main Step Part Number : `50610K15900`
4	Plate, Step Setting Part Number : `50613K45N40`
5	Spg.,Step Return Part Number : `50617445840`
6	Arm, R. Main Step Part Number : `50635K45N40`
7	Pin Step Bar Part Number : `50639ML0010`
8	Pivot Change Pedal Part Number : `50643KYJ900`
9	Spg.,L Step Return Part Number : `50644445840`
10	Arm, RL Main Step Part Number : `50645K45N40`
11	Holder L Main Step Part Number : `50700K45N40`
12	Holder R Pillion Step Part Number : `50715K45N40`
13	Stay, Oil Cup Part Number : `50716K45N40`
14	Plate, Pillion Step Click Part Number : `50718MEE000`
15	Arm, R P,Step Part Number : `50720KT7761`
16	Holder L Pillion Step Part Number : `50725K45N40`
17	Arm, L P,Step Part Number : `50730KT7761`
18	Bolt, Socket, 8X20 Part Number : `90104K15920`
19	Bolt,Special 5X14 Part Number : `90108K15900`
20	Collar,6MM Part Number : `90311K15900`
21	Bolt,Hex,Cap 6X16 Part Number : `92501060160A`
22	Nut Flange 8 MM Part Number : `9405008080`
23	Washer Plain 6MM Part Number : `9410106000`
24	Washer Plain 8MM Part Number : `9410208000`
25	Pin Cotter 16X15 Part Number : `9420116150`
26	Pin Cotter 2.0X15 Part Number : `9420120150`
27	Pin C Pill Step Part Number : `9501583000`
28	Bolt Flange SH 6X14 Part Number : `960010601407`
29	Ball,Steel 8 Part Number : `9621108000`
