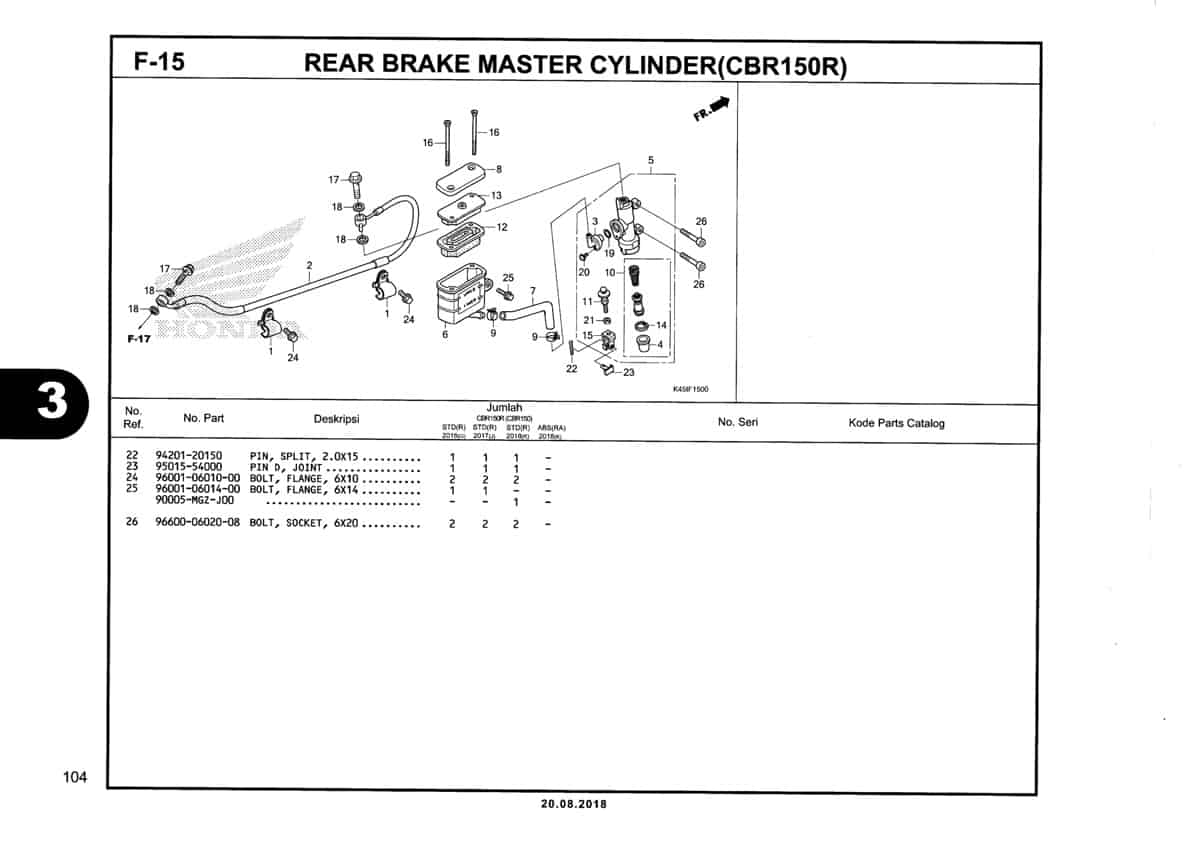

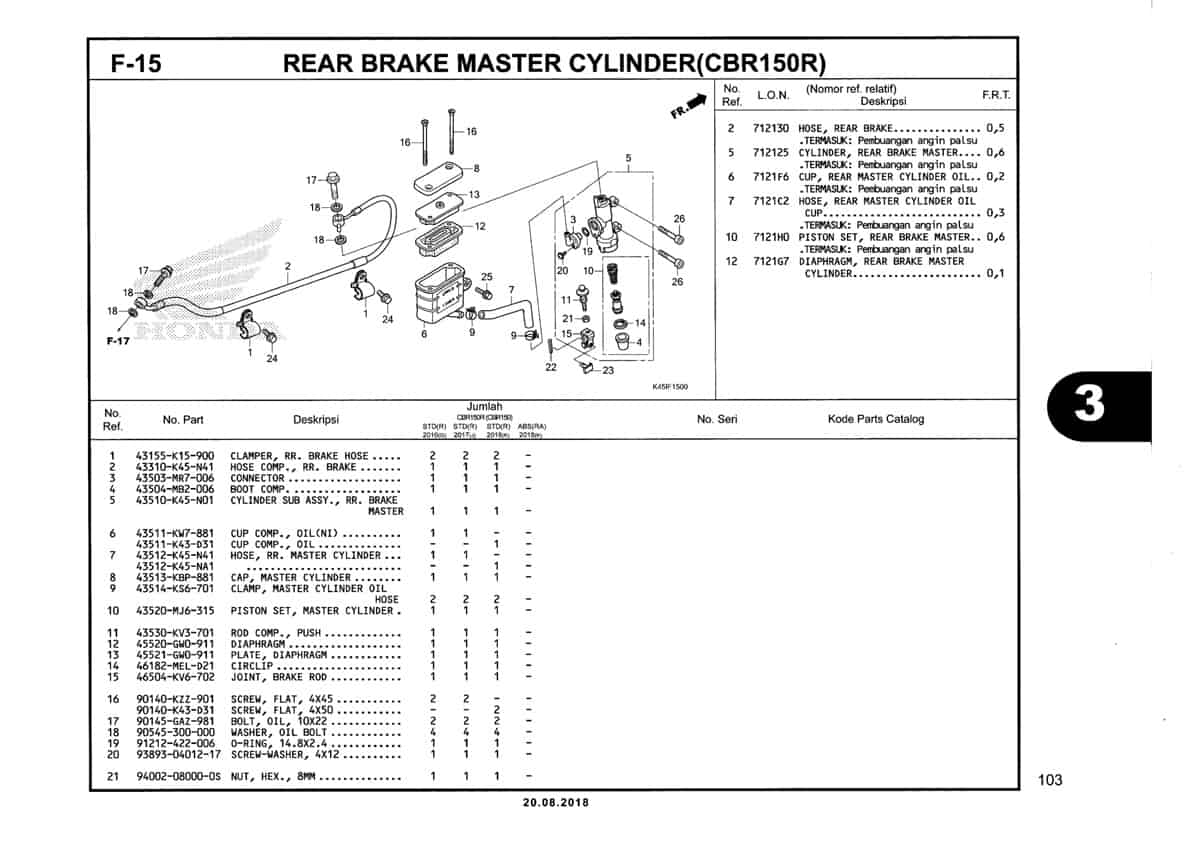

F15 – Rear Brake Master Cylinder (CBR150R) – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Clamper RR Brk Hose Part Number : `43155K15900`
2	Hose Comp., RR. Brake Part Number : `43310K45N41`
3	Connctr.Nissin Part Number : `43503MR7006`
4	Boot Comp Part Number : `43504MB2006`
5	Cylinder Sub Assy RR Brake Part Number : `43510K45N01`
6	Oil Cup Comp Part Number : `43511K43D31`
7	Hose,RR M/C Part Number : `43512K45NA1`
8	Cap M/C Part Number : `43513KBP881`
9	Clmp,Cyln.Oil Part Number : `43514KS6701`
10	Piston,Cylinder Part Number : `43520MJ6315`
11	Rod Comp,Push Part Number : `43530KV3701`
12	Diaphragm Part Number : `45520GW0911`
13	Plate,Diaphragm Part Number : `45521GW0911`
14	Circlip M/C Part Number : `46182MELD21`
15	Joint Brake Rod Part Number : `46504KV6702`
16	Screw,Flat 4X50 Part Number : `90140K43D31`
17	Bolt Oil 10X22 Part Number : `90145GAZ981`
18	Washer Oil Bolt Part Number : `90545300000`
19	O-Ring,14.8X2.4 Part Number : `91212422006`
20	Screw Washer 4X12 Part Number : `938930401217`
21	Nut,Hex 8MM Part Number : `94002080000S`
22	Pin Cotter 2.0X15 Part Number : `9420120150`
23	Pin D Joint Part Number : `9501554000`
24	Bolt, Flange, 6X10 Part Number : `960010601000`
25	Bolt, Flange, 6X14(NSHF) Part Number : `90005MGZJ00`
26	Bolt Socket 6X20 Part Number : `966000602008`
