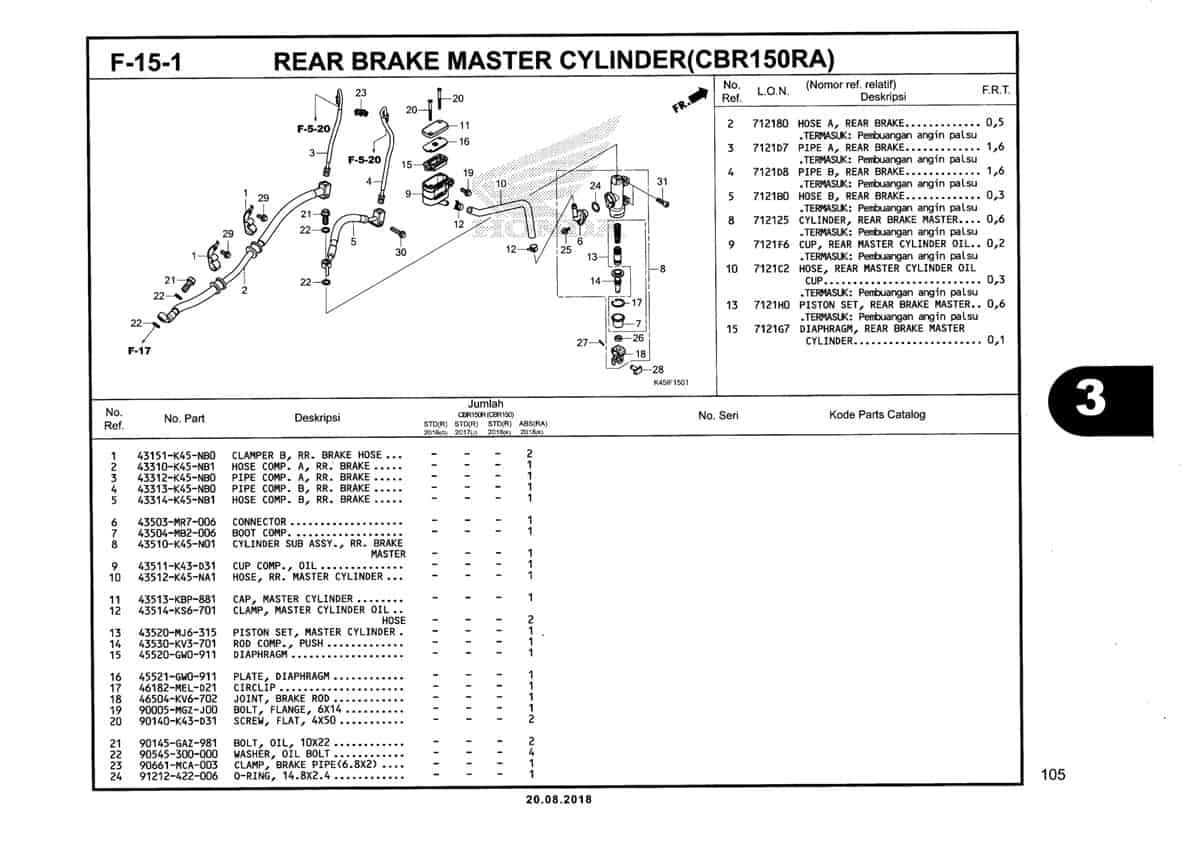

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clamper B, RR Brk Hose | 43151K45NB0 |
|
| 2 | Hose Comp,A RR Brake | 43310K45NB1 |
|
| 3 | Pipe Comp A,RR Brake | 43312K45NB0 |
|
| 4 | Pipe Comp B,RR Brake | 43313K45NB0 |
|
| 5 | Hose Comp B,RR Brake | 43314K45NB1 |
|
| 6 | ConncTtr,Nissin | 43503MR7006 |
|
| 7 | Boot Comp | 43504MB2006 |
|
| 8 | Cylinder Sub Assy RR Brake | 43510K45N01 |
|
| 9 | Oil Cup Comp | 43511K43D31 |
|
| 10 | Hose,RR M/C | 43512K45NA1 |
|
| 11 | Cap M/C | 43513KBP881 |
|
| 12 | Clmp,Cyln.Oil | 43514KS6701 |
|
| 13 | Piston Cylinder | 43520MJ6315 |
|
| 14 | Rod Comp Push | 43530KV3701 |
|
| 15 | Diaphragm | 45520GW0911 |
|
| 16 | Plate Diaphragm | 45521GW0911 |
|
| 17 | Circlip M/C | 46182MELD21 |
|
| 18 | Joint Brake Rod | 46504KV6702 |
|
| 19 | Bolt, Flange, 6X14(NSHF) | 90005MGZJ00 |
|
| 20 | Screw,Flat 4X50 | 90140K43D31 |
|
| 21 | Bolt Oil 10X22 | 90145GAZ981 |
|
| 22 | Washer Oil Bolt | 90545300000 |
|
| 23 | Clamp Brake Pipe(68X2) | 90661MCA003 |
|
| 24 | O-Ring,14.8X2.4 | 91212422006 |
|
| 25 | Screw Washerg 4X12 | 938930401217 |
|
| 26 | Nut,Hex 8MM | 94002080000S |
|
| 27 | Pin Cotter 2.0X15 | 9420120150 |
|
| 28 | Pin D Joint | 9501554000 |
|
| 29 | Bolt Flange 6X12 | 960010601207 |
|
| 30 | Bolt Flange SH 6X32 | 960010603207 |
|
| 31 | Bolt Socket 6X20 | 966000602008 |
|
