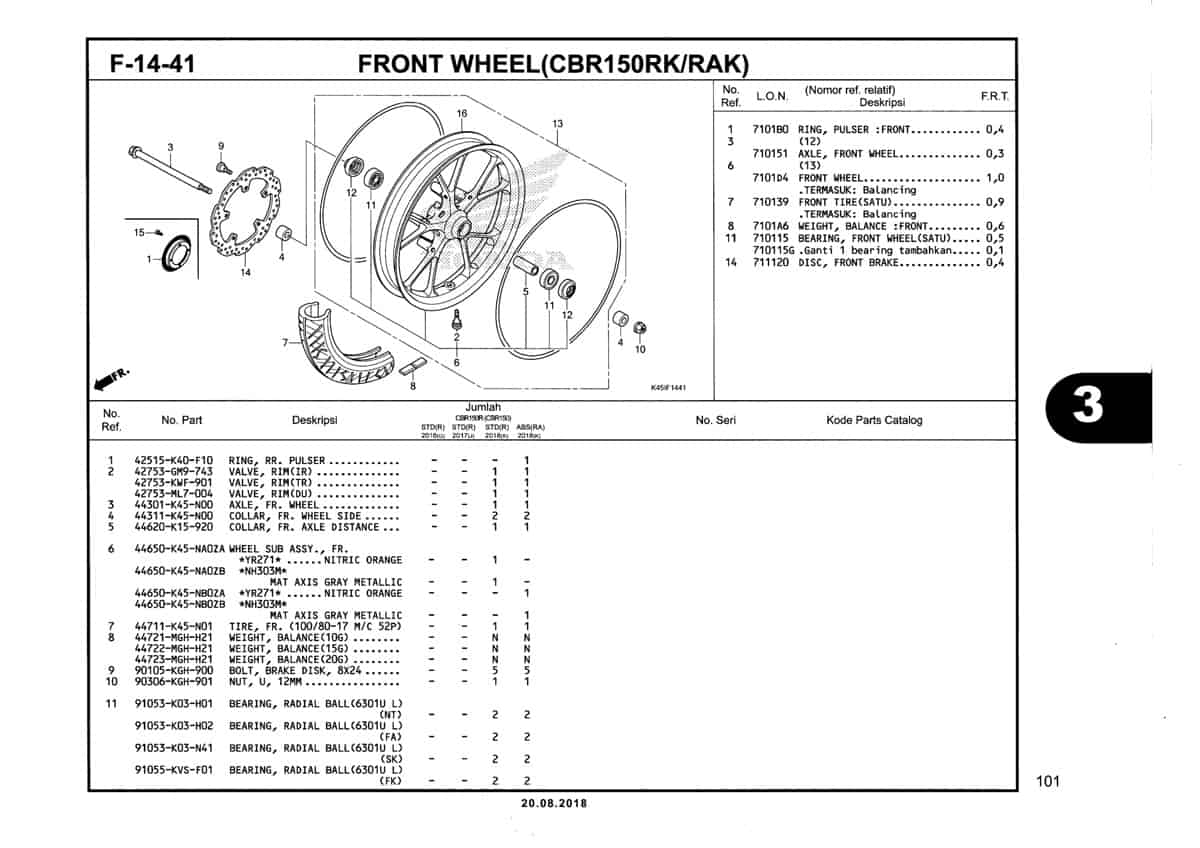

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Ring,RR Pulser | 42515K40F10 |
|
| 2 | Valve,Rim (INOUE) | 42753GM9743 |
|
| 2 | Valve,Rim (TRITON) | 42753KWF901 |
|
| 2 | Valve,Rim(DUNLOP) | 42753ML7004 |
|
| 3 | Axle FR Wheel | 44301K45N00 |
|
| 4 | Collar FR Wheel Side | 44311K45N00 |
|
| 5 | Collar FR Axle Distance | 44620K15920 |
|
| 6 | Wheel Sub Assy FR | 44650K15920ZC |
|
| 6 | Wheel Sub Assy FR (NI OR) | 44650K45NA0ZA |
|
| 6 | Wheel Sub Assy FR (MAT AX GY) | 44650K45NA0ZB |
|
| 6 | Wheel Sub Assy FR (NI OR) ABS | 44650K45NB0ZA |
|
| 6 | WHEEL SUB ASY FR(MAT AX GY) ABS | 44650K45NB0ZB |
|
| 7 | Tire, FR.(IRC) | 44711K45N01 |
|
| 8 | Weight Balance 10 | 44721MGHH21 |
|
| 8 | Weight Balance 15 | 44722MGHH21 |
|
| 8 | Weight Balance 20 | 44723MGHH21 |
|
| 9 | Bolt Brk Disk 8X24 | 90105KGH900 |
|
| 10 | Nut,U,12MM | 90306KGH901 |
|
| 11 | Bearing, Radial Ball(6301U L) | 91053K03H01 |
|
| 11 | Bearing Ball Radial 6301U L | 91053K03H02 |
|
| 11 | Bearing Ball Radial 6301U L | 91053K03N41 |
|
| 11 | Bearing Ball Radial 6301U L | 91055KVSF01 | - |
| 11 | Bearing Ball Radial 6301U L | 91055KVSF02 |
|
| 12 | Dust Seal 23X37X7 | 91252KGH901 |
|
| 12 | Dust Seal, 23X37X7 | 91252KGH902 |
|
| 13 | Wheel Sub Assy FR(MAT AX GY) | 44650K45NE0ZA |
|
| 13 | Wheel Sub Assy FR(MAT AX GY) ABS | 44650K45NF0ZA |
|
| 14 | Disk,FR Brake | 45251K15601 |
|
| 15 | Bolt, Torx, 5X10 | 90131K64N10 |
|
| 16 | Wheel,Front (NI OR) | 44601K45NA1NOR |
|
| 16 | Wheel,Front (MA AX GY) | 44601K45NA1MAG |
|
| 16 | Wheel,Front (NI OR) ABS | 44601K45NB1NOR |
|
| 16 | Wheel,Front (MA AX GY) ABS | 44601K45NB1MAG |
|
