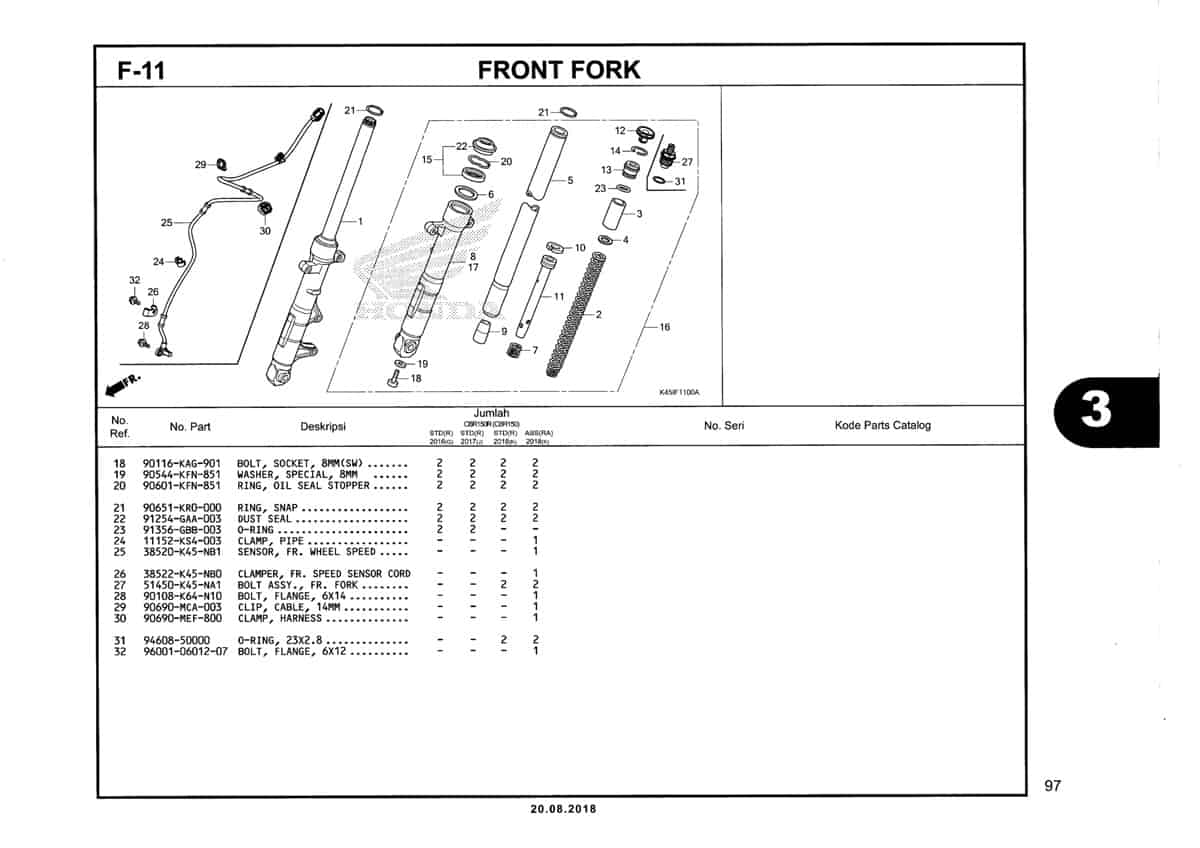

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Fork Assy,R Front | 51400K45305 |
|
| 1 | Fork Assy,R Front ABS | 51400K45306 |
|
| 2 | Spring, FR Fork | 51401K45NA1 |
|
| 3 | Collar Spring | 51402K15921 |
|
| 4 | Plate Spg Joint | 51403447731 |
|
| 5 | Pipe Comp,FR Fork | 51410K45NA1 |
|
| 6 | Ring, Back Up | 51412KFN851 |
|
| 7 | Spring, Rebound | 51412KSP901 |
|
| 8 | Case Comp,R FR Bottom | 51420K45305 |
|
| 8 | Case Comp,R FR Bottom ABS | 51420K45306 |
|
| 9 | Piece, Oil Lock | 51432KFN851 |
|
| 10 | Ring Piston | 51437KW6901 |
|
| 11 | Pipe, Seat | 51440K45N41 |
|
| 15 | Seal Set FR Fork | 51490KRM852 |
|
| 16 | Fork Assy,L Front | 51500K45305 |
|
| 16 | Fork Assy,L Front ABS | 51500K45306 |
|
| 17 | Case Comp,L FR Bottom | 51520K45305 |
|
| 17 | Case Comp,L FR Bottom ABS | 51520K45306 |
|
| 18 | Bolt, Socket, 8MM | 90116KAG901 |
|
| 19 | Washer, Special, 8MM | 90544KFN851 |
|
| 20 | Ring, Oil Seal Stopper | 90601KFN851 |
|
| 21 | Ring Snap | 90651KR0000 |
|
| 22 | Dust Seal FR Fork | 91254GAA003 |
|
| 24 | Clamp,Pipe | 11152KS4003 |
|
| 25 | Sensor,Wheel Spd FR | 38520K45NB1 |
|
| 26 | Clamper FR Spd Sensor Cord | 38522K45NB0 |
|
| 27 | Bolt Assy,FR Fork | 51450K45NA1 |
|
| 28 | Bolt Flange NSHF | 90108K64N10 |
|
| 29 | Clip Cable 14MM | 90690MCA003 |
|
| 30 | Clamp Harness | 90690MEF800 |
|
| 31 | O-Ring,23X2.8 | 9460850000 |
|
| 32 | Bolt Flange 6X12 | 960010601207 |
|
