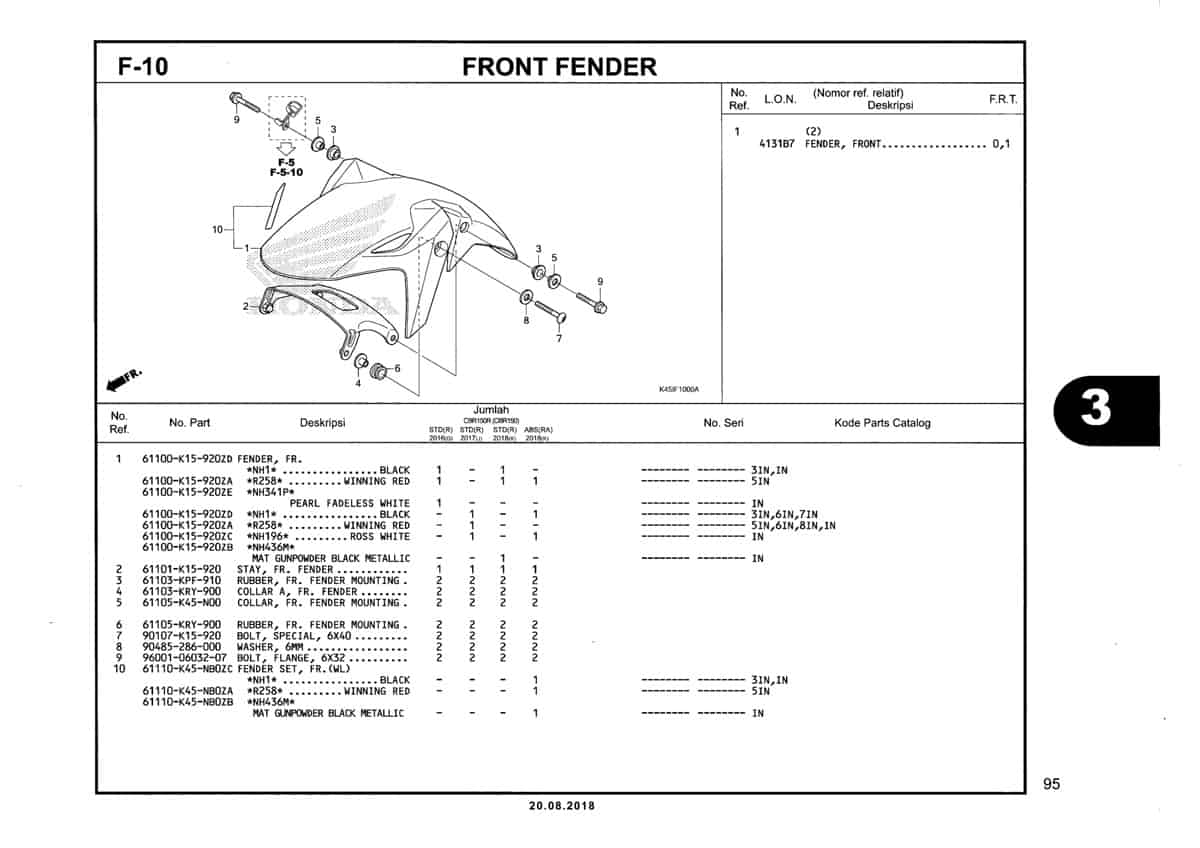

F10 – Front Fender – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Fender FR(BLK) Part Number : `61100K15920ZD`
1	Fender FR(WN RD) Part Number : `61100K15920ZA`
1	Fender FR(RO WH) Part Number : `61100K15920ZC`
1	Fender FR(MT GN BL) Part Number : `61100K15920ZB`
2	Stay, FR. Fender Part Number : `61101K15920`
3	Rubber,FR Fender MT. Part Number : `61103KPF910`
4	Collar A FR Fender Part Number : `61103KRY900`
5	Collar FR Fender Mount Part Number : `61105K45N00`
6	Rubber FR Fender MT Part Number : `61105KRY900`
7	Bolt, Special, 6X40 Part Number : `90107K15920`
8	Washer 6MM Part Number : `90485286000`
9	Bolt Flange SH 6X32 Part Number : `960010603207`
10	Set Illust, FR Fender Typ 1 Part Number : `61110K45NB0ZC`
10	Set Illust, FR Fender Typ 3 Part Number : `61110K45NB0ZA`
10	Set Illust, FR Fender Part Number : `61110K45NB0ZB`
