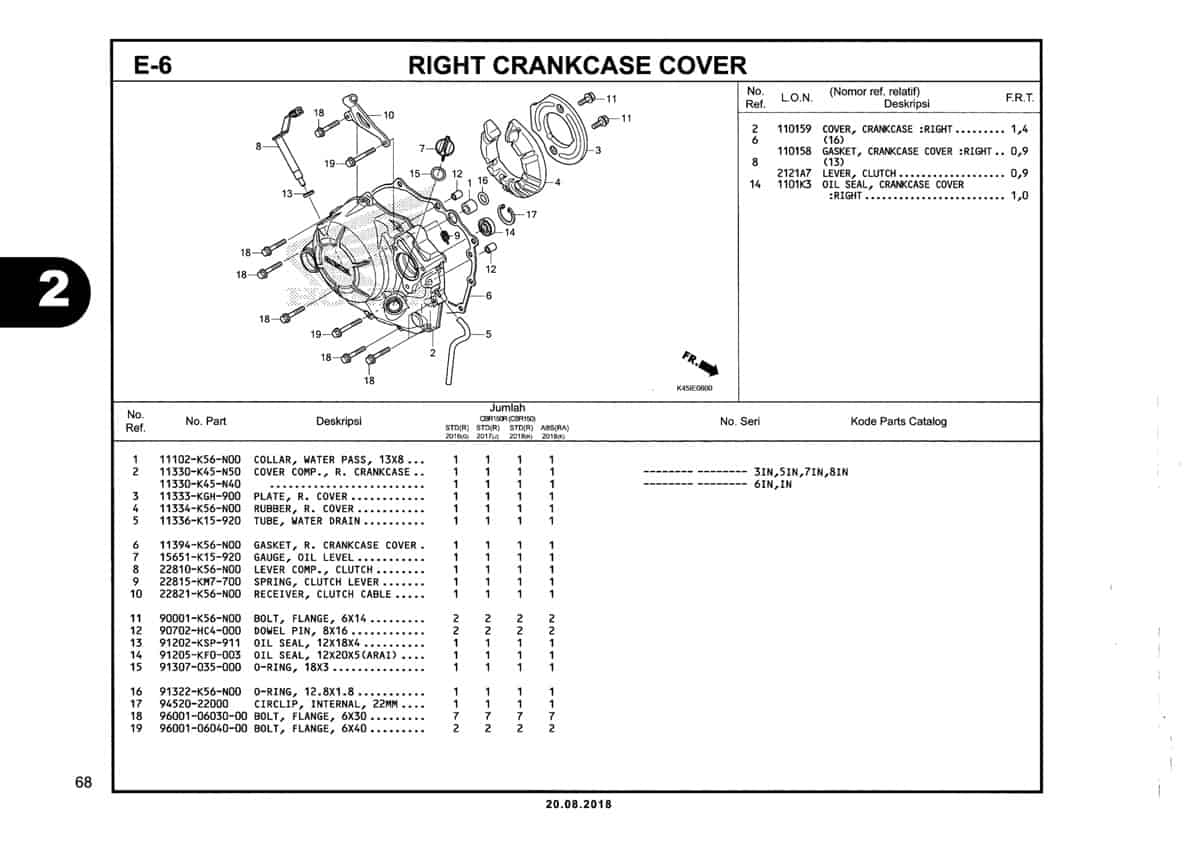

E6 – Right Crankcase Cover – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Collar Water Pass 13X8 Part Number : `11102K56N00`
2	Cover Comp R Crankcase Part Number : `11330K45N50`
2	Cover Comp R Crankcase Part Number : `11330K45N40`
3	Plate R Cover Part Number : `11333KGH900`
4	Rubber R Cover Part Number : `11334K56N00`
5	Tube Water Drain Part Number : `11336K15920`
6	Gasket R Crankcase Cover Part Number : `11394K56N00`
6	Gasket R Crankcase Cover Part Number : `11394K56V50`
7	Gauge Oil Level Part Number : `15651K15920`
8	Lever Comp Clutch Part Number : `22810K56N00`
9	Spring Clutch Part Number : `22815KM7700`
10	Receiver Clutch Cable Part Number : `22821K56N00`
11	Bolt Flange 6X14 Part Number : `90001K56N00`
12	Pin Dowel 8X16 Part Number : `90702HC4000`
13	Oil Seal 12X18X4 Part Number : `91202KSP911`
14	Oil Seal 12X20X5 Part Number : `91205KF0003`
15	O-Ring 18X3 Part Number : `91307035000`
16	O-Ring 12.8X1.8 Part Number : `91322K56N00`
17	Circlip In 22 Part Number : `9452022000`
18	Bolt Flange 6X30 Part Number : `960010603000`
19	Bolt Flange 6X40 Part Number : `960010604000`
