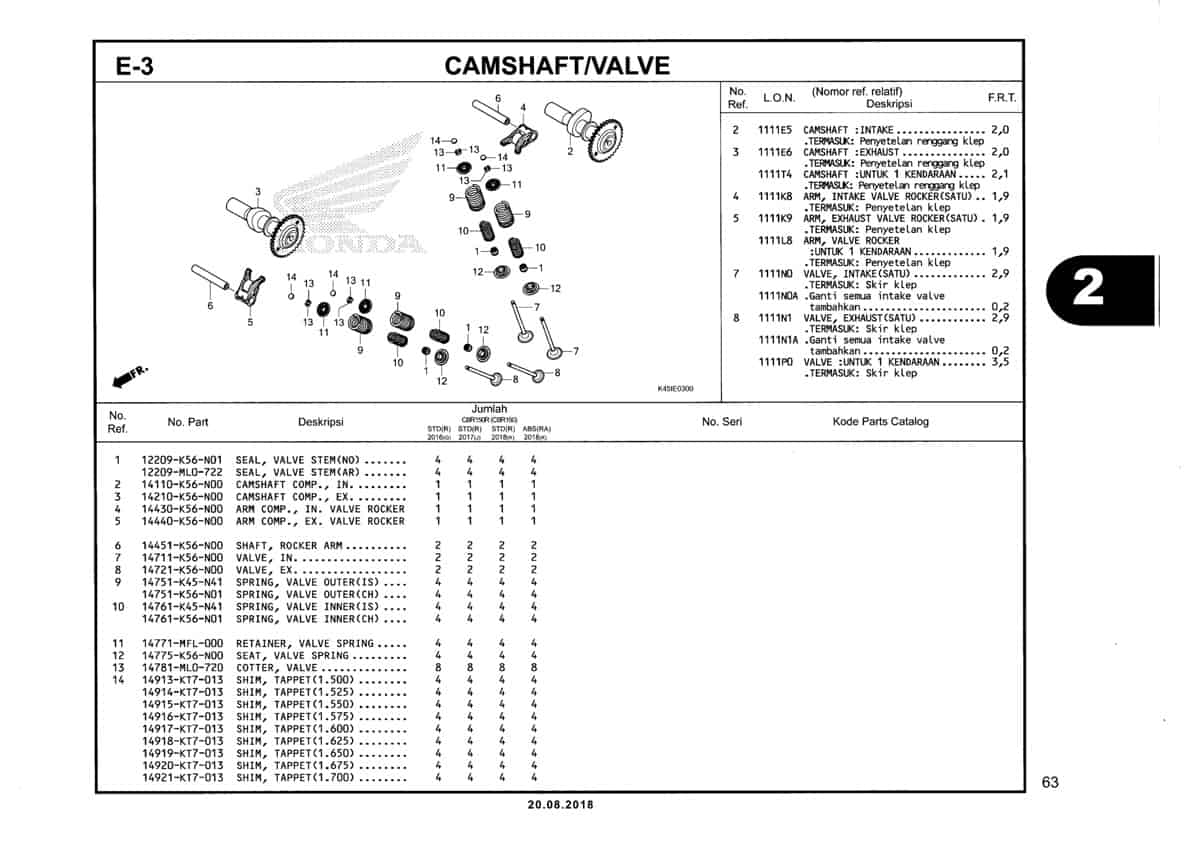

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Seal Valve Stem (NOK) | 12209K56N01 |
|
| 1 | Seal Valve Stem (AR) | 12209ML0722 |
|
| 2 | Cam Shaft Comp In | 14110K56N00 |
|
| 3 | Cam Shaft Comp Ex | 14210K56N00 |
|
| 4 | Arm Comp In Valve Rocker | 14430K56N00 |
|
| 5 | Arm Comp Ex Valve Rocker | 14440K56N00 |
|
| 6 | Shaft Rocket Arm | 14451K56N00 |
|
| 7 | Valve In | 14711K56N00 |
|
| 8 | Valve Ex | 14721K56N00 |
|
| 9 | Spring Valve Outer | 14751K45N41 |
|
| 9 | Spring Valve Outer | 14751K56N01 |
|
| 10 | Spring Valve Inner | 14761K45N41 |
|
| 10 | Spring Valve Inner | 14761K56N01 |
|
| 11 | Retainer Valve Spring | 14771MFL000 |
|
| 11 | Retainer Valve Spring | 14771K45NL0 |
|
| 12 | Seat Valve Spring | 14775K56N00 |
|
| 13 | Cotter Valve | 14781ML0720 |
|
| 14 | Shim Tappet (1.500) | 14913KT7013 |
|
| 14 | Shim Tappet (1.525) | 14914KT7013 |
|
| 14 | Shim Tappet (1.550) | 14915KT7013 |
|
| 14 | Shim Tappet (1.575) | 14916KT7013 |
|
| 14 | Shim Tappet (1.600) | 14917KT7013 |
|
| 14 | Shim Tappet (1.625) | 14918KT7013 |
|
| 14 | Shim Tappet (1.650) | 14919KT7013 |
|
| 14 | Shim Tappet (1.675) | 14920KT7013 |
|
| 14 | Shim Tappet (1.700) | 14921KT7013 |
|

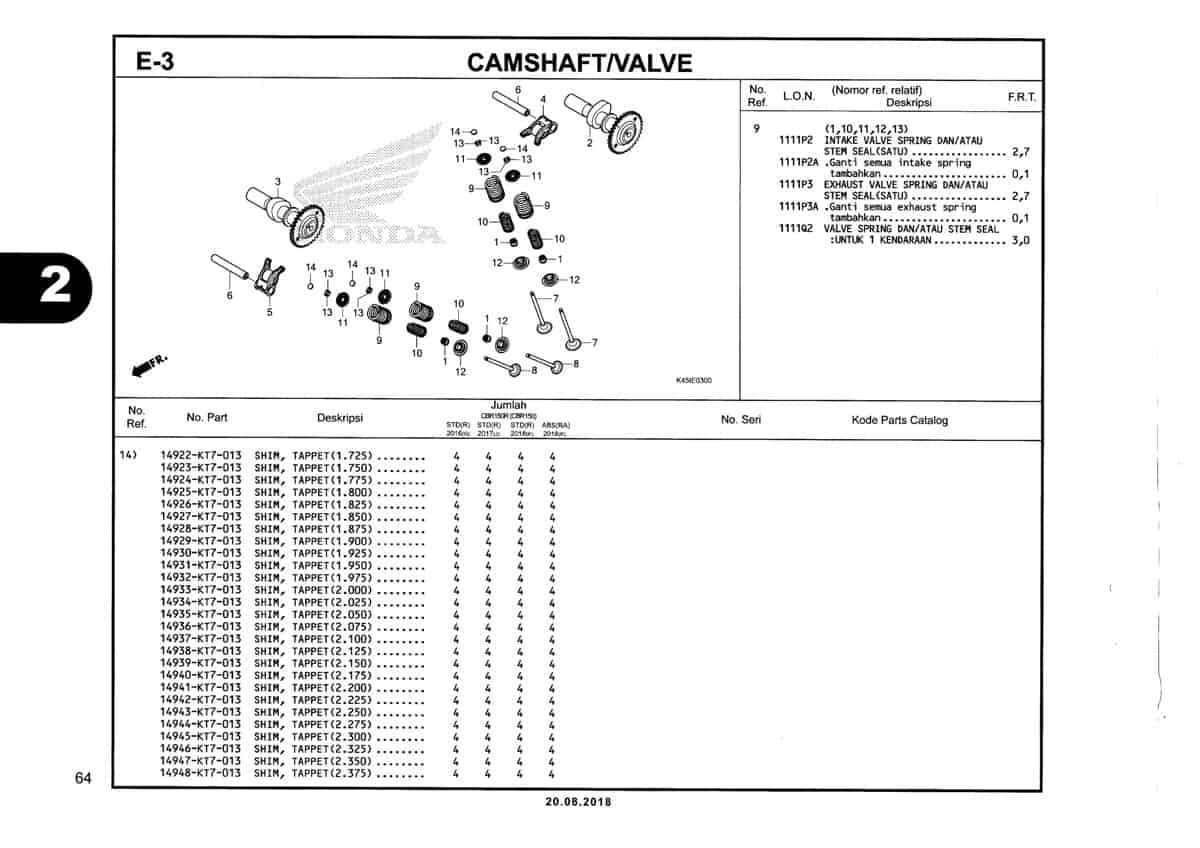

| 14 | Shim Tappet (1.725) | 14922KT7013 |
|
| 14 | Shim Tappet (1.750) | 14923KT7013 |
|
| 14 | Shim Tappet (1.775) | 14924KT7013 |
|
| 14 | Shim Tappet (1.800) | 14925KT7013 |
|
| 14 | Shim Tappet (1.825) | 14926KT7013 |
|
| 14 | Shim Tappet (1.850) | 14927KT7013 |
|
| 14 | Shim Tappet (1.875) | 14928KT7013 |
|
| 14 | Shim Tappet (1.900) | 14929KT7013 |
|
| 14 | Shim Tappet (1.925) | 14930KT7013 |
|
| 14 | Shim Tappet (1.950) | 14931KT7013 |
|
| 14 | Shim Tappet (1.975) | 14932KT7013 |
|
| 14 | Shim Tappet (2.000) | 14933KT7013 |
|
| 14 | Shim Tappet (2.025) | 14934KT7013 |
|
| 14 | Shim Tappet (2.050) | 14935KT7013 |
|
| 14 | Shim Tappet (2.075) | 14936KT7013 |
|
| 14 | Shim Tappet (2.100) | 14937KT7013 |
|
| 14 | Shim Tappet (2.125) | 14938KT7013 |
|
| 14 | Shim Tappet (2.150) | 14939KT7013 |
|
| 14 | Shim Tappet (2.175) | 14940KT7013 |
|
| 14 | Shim Tappet (2.200) | 14941KT7013 |
|
| 14 | Shim Tappet (2.225) | 14942KT7013 |
|
| 14 | Shim Tappet (2.250) | 14943KT7013 |
|
| 14 | Shim Tappet (2.275) | 14944KT7013 |
|
| 14 | Shim Tappet (2.300) | 14945KT7013 |
|
| 14 | Shim Tappet (2.325) | 14946KT7013 |
|
| 14 | Shim Tappet (2.350) | 14947KT7013 |
|
| 14 | Shim Tappet (2.375) | 14948KT7013 |
|

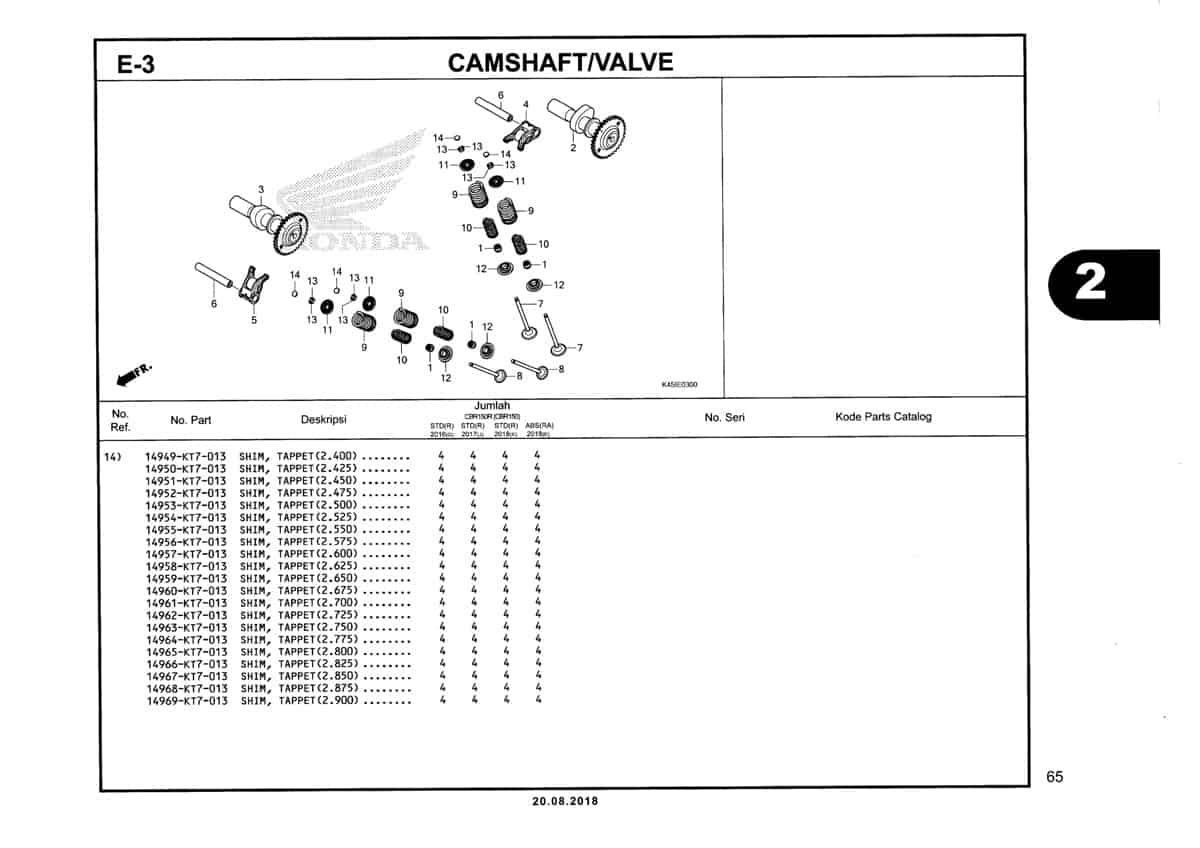

| 14 | Shim Tappet (2.400) | 14949KT7013 |
|
| 14 | Shim Tappet (2.425) | 14950KT7013 |
|
| 14 | Shim Tappet (2.450) | 14951KT7013 |
|
| 14 | Shim Tappet (2.475) | 14952KT7013 |
|
| 14 | Shim Tappet (2.500) | 14953KT7013 |
|
| 14 | Shim Tappet (2.525) | 14954KT7013 |
|
| 14 | Shim Tappet (2.550) | 14955KT7013 |
|
| 14 | Shim Tappet (2.575) | 14956KT7013 |
|
| 14 | Shim Tappet (2.600) | 14957KT7013 |
|
| 14 | Shim Tappet (2.625) | 14958KT7013 |
|
| 14 | Shim Tappet (2.650) | 14959KT7013 |
|
| 14 | Shim Tappet (2.675) | 14960KT7013 |
|
| 14 | Shim Tappet (2.700) | 14961KT7013 |
|
| 14 | Shim Tappet (2.725) | 14962KT7013 |
|
| 14 | Shim Tappet (2.750) | 14963KT7013 |
|
| 14 | Shim Tappet (2.775) | 14964KT7013 |
|
| 14 | Shim Tappet (2.800) | 14965KT7013 |
|
| 14 | Shim Tappet (2.825) | 14966KT7013 |
|
| 14 | Shim Tappet (2.850) | 14967KT7013 |
|
| 14 | Shim Tappet (2.875) | 14968KT7013 |
|
| 14 | Shim Tappet (2.900) | 14969KT7013 |
|
