| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|

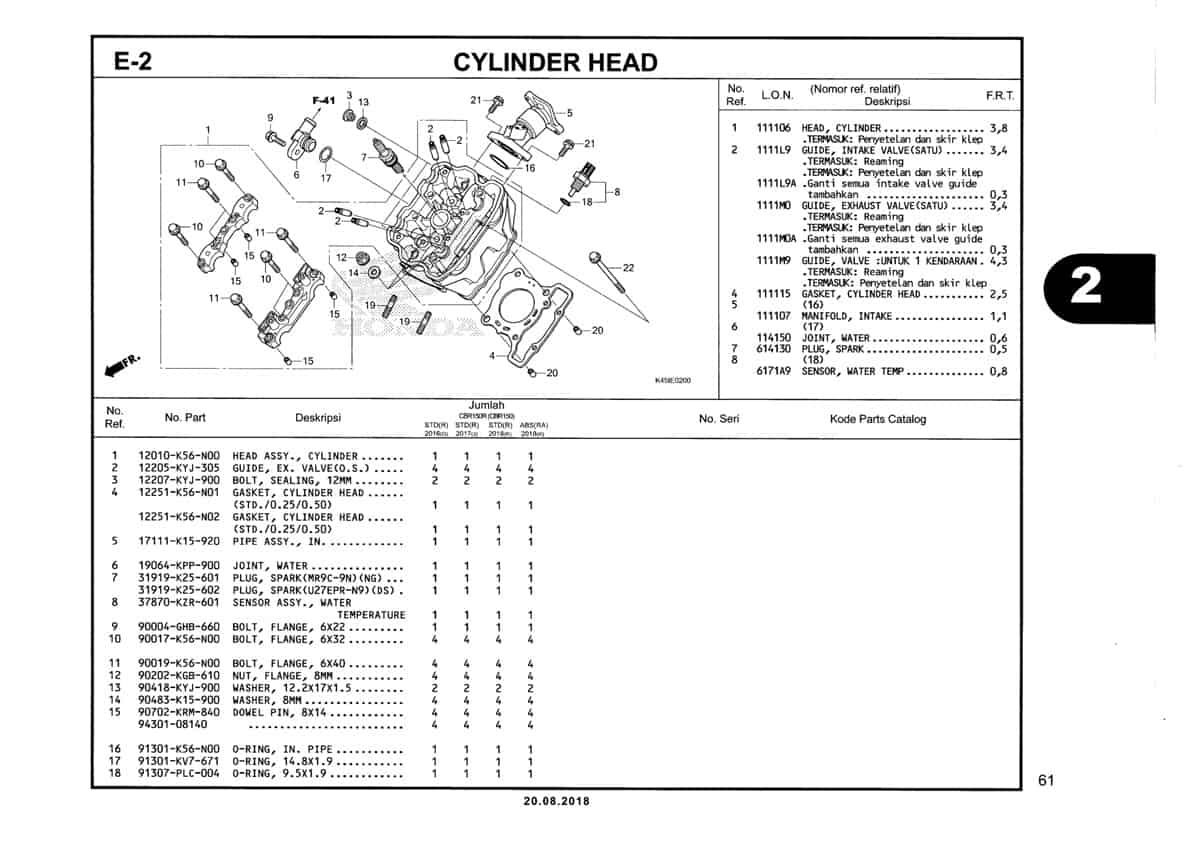

| 1 | Head Assy Cylinder | 12010K56N00 |
|
| 2 | Guide Ex Valve (OS) | 12205KYJ305 |
|
| 3 | Bolt Sealing 12MM | 12207KYJ900 |
|
| 4 | Gasket Cylinder Head (NLK) | 12251K56N02 |
|
| 5 | Pipe Assy In | 17111K15920 |
|
| 6 | Joint Water | 19064KPP900 |
|
| 7 | Spark Plug MR9C9N (NGK) | 31919K25601 |
|
| 7 | Spark Plug U27EPR-N9 (DS) | 31919K25602 |
|
| 8 | Sensor Assy Water Temp | 37870KZR601 |
|
| 9 | Bolt Flange NSHF 6X22 | 90004GHB660 |
|
| 10 | Bolt Flange 6X32 | 90017K56N00 |
|
| 11 | Bolt Flange 6X40 | 90019K56N00 |
|
| 12 | Nut Flange 8MM | 90202KGB610 |
|
| 13 | Washer 12.2X17X1.5 | 90418KYJ900 |
|
| 14 | Washer 8MM | 90483K15900 |
|

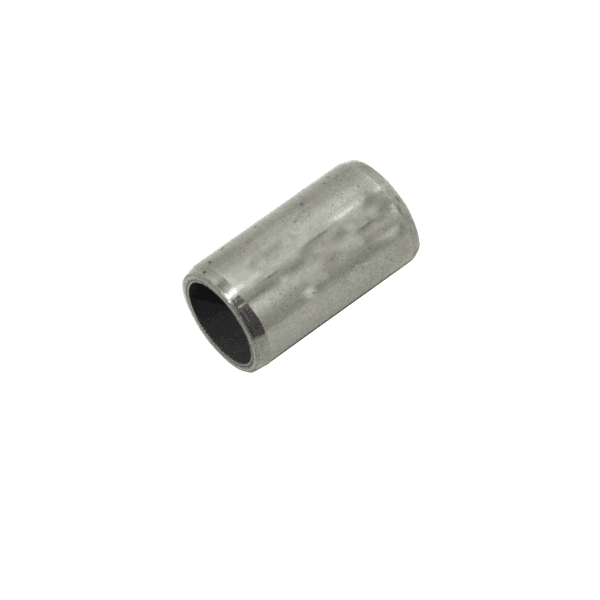

| 15 | Pin Dowel 8X14 | 90702KRM840 |
|
| 15 | Pin Dowel 8X14 | 9430108140 |
|
| 16 | O-Ring In Pipe | 91301K56N00 |
|
| 17 | O-Ring 14.8X1.9 | 91301KV7671 |
|
| 18 | O-Ring 9.5X1.9 | 91307PLC004 |
|

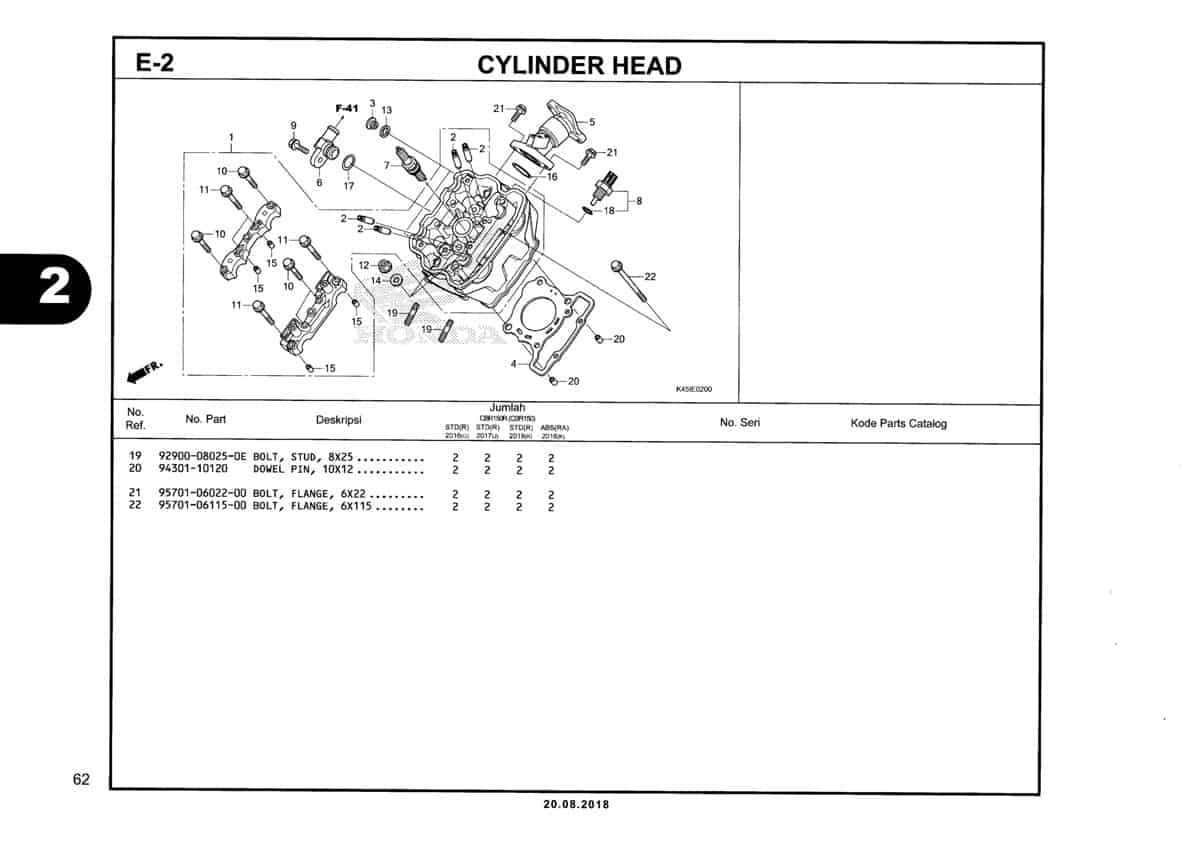

| 19 | Bolt Stud 8X25 | 92900080250E |
|
| 20 | Pin Dowel 10X12 | 9430110120 |
|
| 21 | Bolt Flange 6X22 | 957010602200 |
|
| 22 | Bolt Flange 6X115 | 957010611500 |
|
