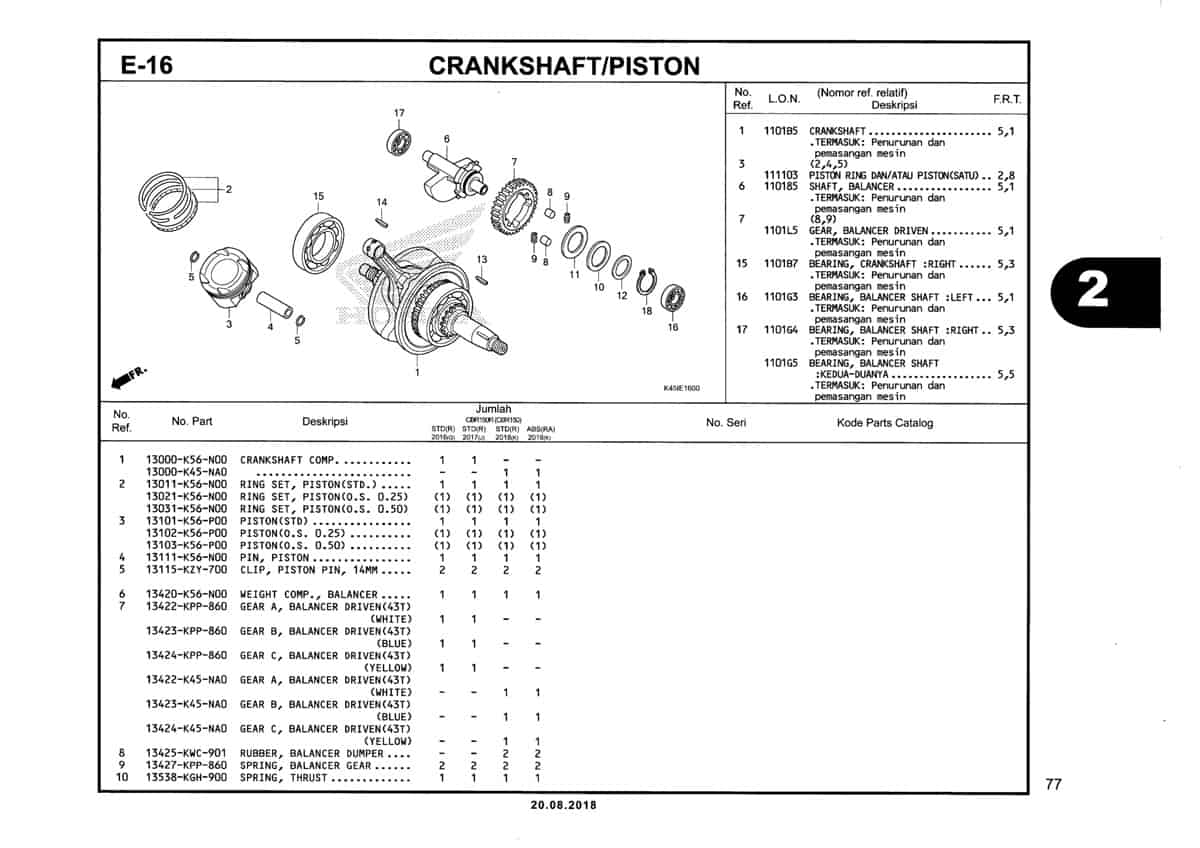

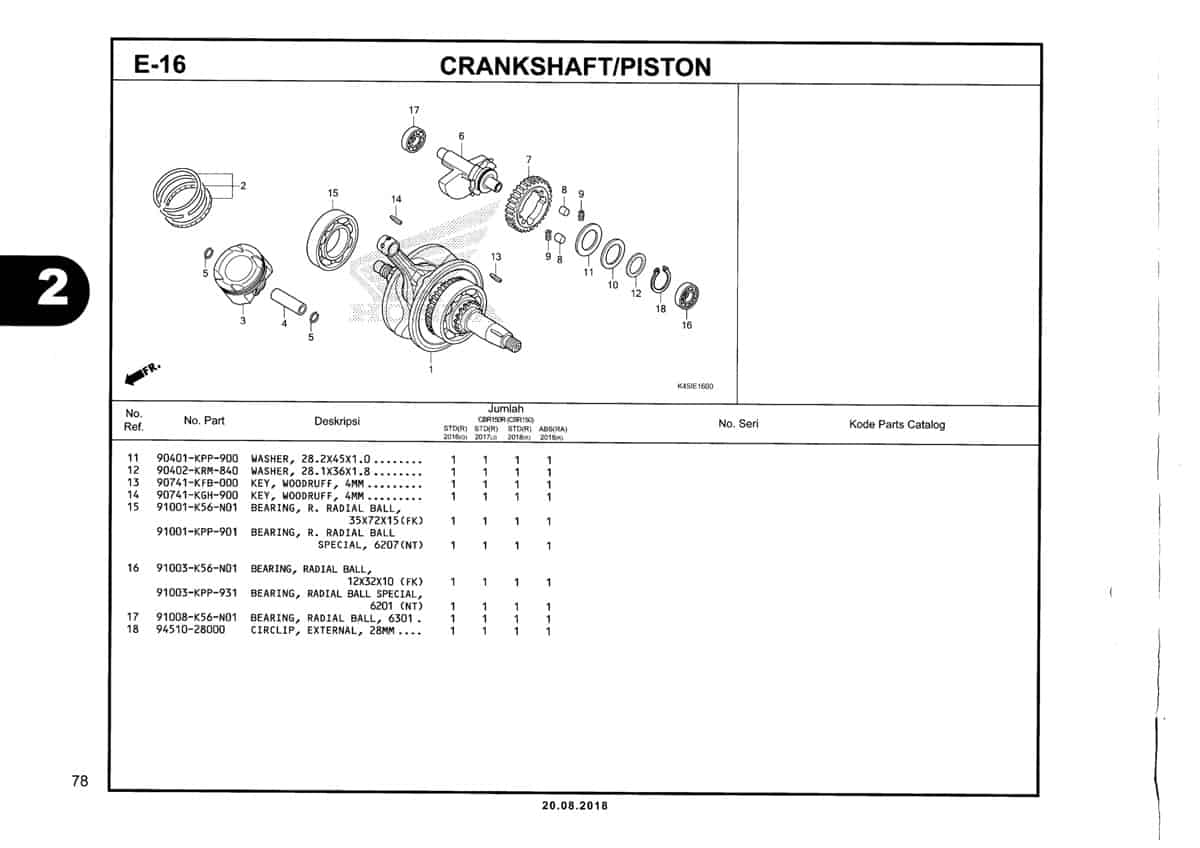

E16 – Crankshaft/Piston – Katalog Honda New CBR 150R K45N

#	Informasi Produk	Visual
1	Crank Shaft Comp Part Number : `13000K45NA0`
2	Ring Set Piston (STD) Part Number : `13011K56N00`
2	Ring Set Piston (0.25) Part Number : `13021K56N00`
2	Ring Set Piston (0.50) Part Number : `13031K56N00`
3	Piston STD Part Number : `13101K56P00`
3	Piston OS 0.25 Part Number : `13102K56P00`
3	Piston OS 0.50 Part Number : `13103K56P00`
4	Pin Piston Part Number : `13111K56N00`
5	Clip, Piston Pin, 14MM Part Number : `13115KZY700`
6	Weight Comp., Balancer Part Number : `13420K56N00`
7	Gear A, Balancer Driven Part Number : `13422K45NA0`
7	Gear B, Balancer Driven Part Number : `13423K45NA0`
7	Gear C, Balancer Driven Part Number : `13424K45NA0`
8	Rubber, Balancer Dumper (IKP) Part Number : `13425KWC901`
8	Rubber, Balancer Dumper Part Number : `13425KGH901`
9	Spring Balancer Gear Part Number : `13427KPP860`
10	Spring,Thrust Part Number : `13538KGH900`
11	Washer 28.2X45X1.0 Part Number : `90401KPP900`
12	Washer, 28.1X36X1.8 Part Number : `90402KRM840`
13	Key, Woodruff,4MM Part Number : `90741KFB000`
14	KeywoodruffF 4MM Part Number : `90741KGH900`
15	Bearing R. Rad Ball,35X72X15 Part Number : `91001K56N01`
15	Bearing,Ball Radial 6207 SPL Part Number : `91001KPP901`
16	Bearing Rad Ball 12X32X10 Part Number : `91003K56N01`
16	Bearing Ball,Radial 6201 SPL Part Number : `91003KPP931`
17	Bearing Radial Ball 6301 Part Number : `91008K56N01`
18	Circlip EX 28 Part Number : `9451028000`
