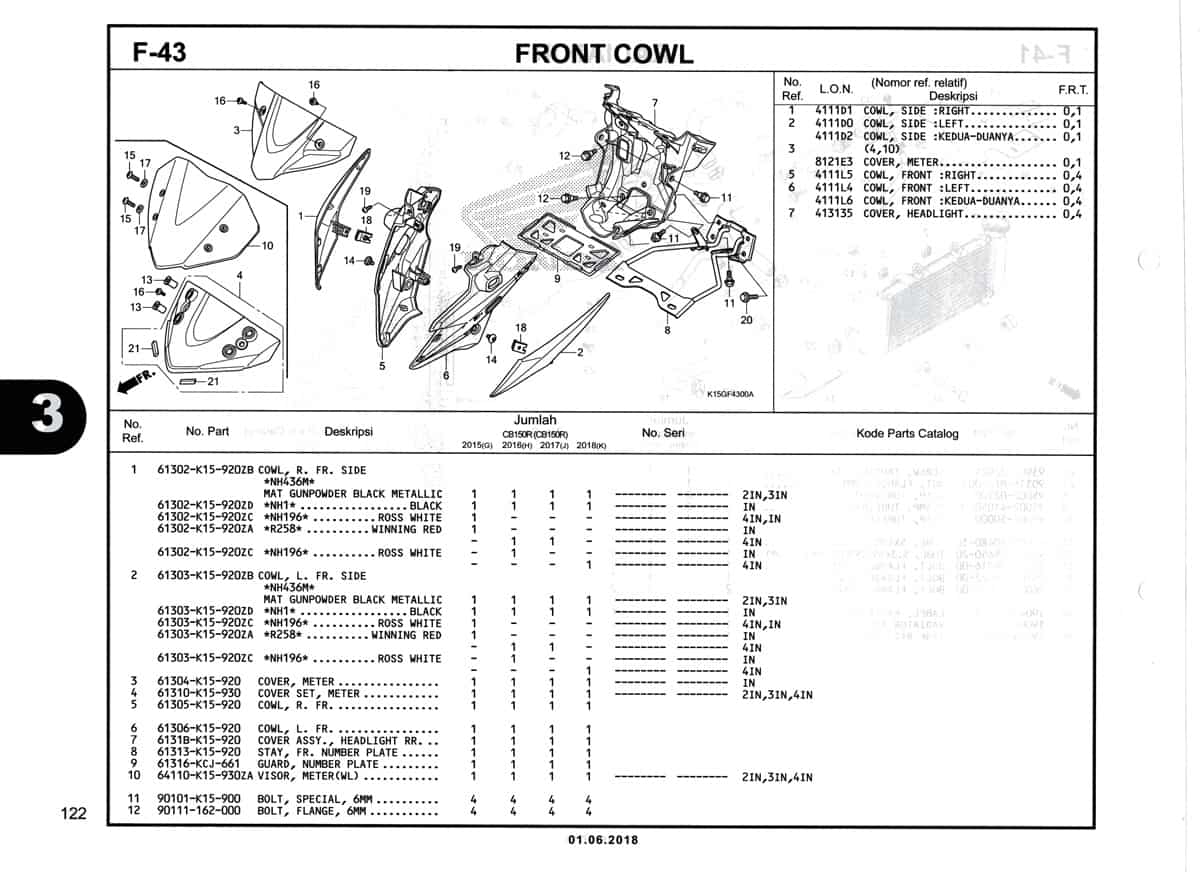

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cowl R FR Side (RO WH) | 61302K15920ZC |
|
| 1 | Cowl R FR Side (BLK) | 61302K15920ZD |
|
| 1 | Cowl R FR Side (MT GN BL) | 61302K15920ZB |
|
| 2 | Cowl L FR Side (RO WH) | 61303K15920ZC |
|
| 2 | Cowl L FR Side (MT GN BL) | 61303K15920ZB |
|
| 2 | Cowl L FR Side (BLK) | 61303K15920ZD |
|
| 3 | Cover Meter | 61304K15920 |
|
| 4 | Cover Set Meter | 61310K15930 |
|
| 5 | Cowl R FR | 61305K15920 |
|
| 6 | Cowl L FR | 61306K15920 |
|
| 7 | Cover H/L RR Assy | 6131BK15920 |
|
| 8 | Stay FR Number Plate | 61313K15920 |
|
| 9 | Guard Number Plate | 61316KCJ661 |
|
| 10 | Visor Meter | 64110K15930ZA |
|
| 11 | Bolt Special 6MM | 90101K15900 |
|
| 12 | Bolt Flange 6MM | 90111162000 |
|
| 13 | Nut Cowl Set M5X0.8 | 90111KW3003 |
|
| 14 | Screw Special 5X11 | 90114KPH700 |
|
| 15 | Bolt Special 5X16 | 90119K15610 |
|
| 16 | Screw Pan 5X14 | 90134KPPT00 |
|
| 17 | Washer Thust 5MM | 90504964000 |
|
| 18 | Nut Clip 5MM | 90677KANT00 |
|
| 19 | Screw Tapping 5X12 | 9390325220 |
|
| 20 | Bolt Flange 6X22 | 957010602207 |
|
| 21 | Rubber Sponge Meter Cover | 61308K15930 |
|
