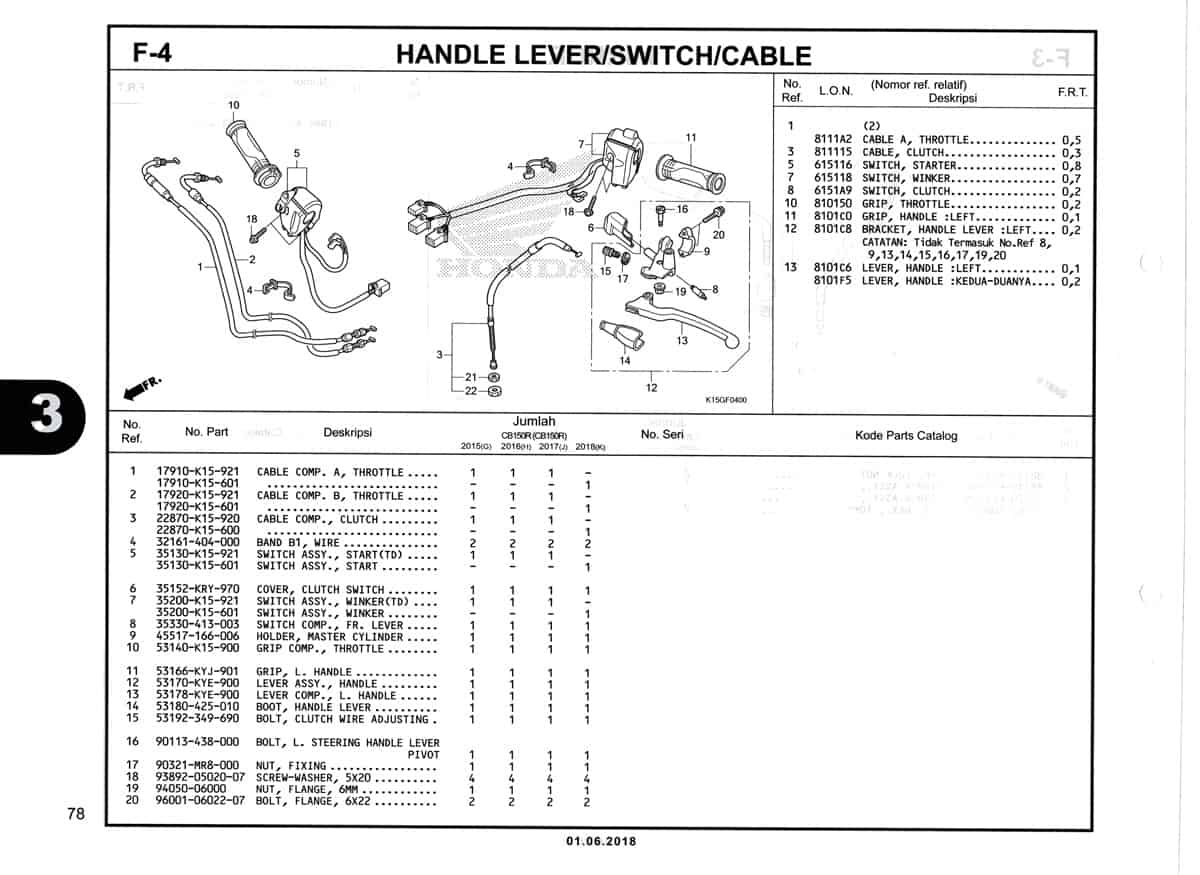

F4 – Handle Lever/Switch/Cable – Katalog Honda New CB150R StreetFire K15M

#	Informasi Produk	Visual
1	Cable Comp A Throttle Part Number : `17910K15601`
2	Cable Comp B Throttle Part Number : `17920K15601`
3	Cable Comp Clutch Part Number : `22870K15600`
4	Band B1 Wire /K5 Part Number : `32161404000`
5	Switch Assy Start Part Number : `35130K15601`
6	Cover Clutch SW Part Number : `35152KRY970`
7	Switch Assy Winker Part Number : `35200K15601`
8	Switch FR Lever Part Number : `35330413003`
9	Holder Master Cylinder Part Number : `45517166006`
10	Grip Com Throttle Part Number : `53140K15900`
11	Grip L Handle Part Number : `53166KYJ900`
12	Lever Assy Handle Part Number : `53170KYE900`
13	Lever Comp L Handle Part Number : `53178KYE900`
14	Boot Handle Lever Part Number : `53180425010`
15	Bolt Wire Adjusting Part Number : `53192349690`
16	Bolt L Sterring Handle Part Number : `90113438000`
17	Nut Fixing Part Number : `90321MR8000`
18	Screw washer 5X20 Part Number : `938920502007`
19	Nut Flange 6MM Part Number : `9405006000`
20	Bolt Flange 6X22 Part Number : `960010602207`
21	Nut Hex 8MM Part Number : `94002080000S`
22	Nut Hex 8MM Part Number : `9403008000`
