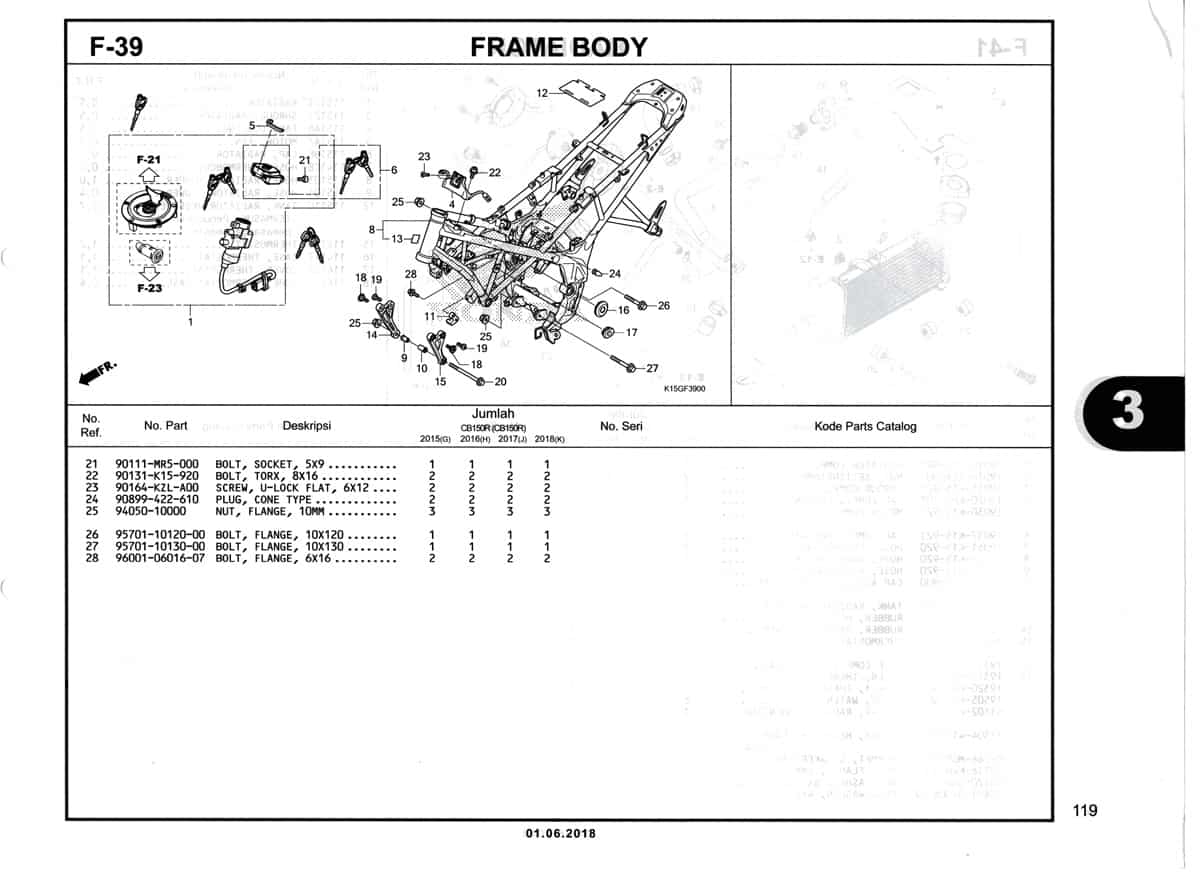

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Key Set | 35010K15920 |
|
| 1 | Key Set | 35010K15921 |
|
| 4 | Stay Comp Combination Switch | 35105K15920 |
|
| 5 | Rubber Sponge Key Shutter | 35106K15920 |
|
| 6 | Shutter Key | 35110K56N02 |
|
| 8 | Set Frame Body Comp (WN RD) | 50010K15610ZA | - |
| 8 | Set Frame Body Comp (MT GN BL) | 50010K15610ZB | - |
| 8 | Set Frame Body Comp (BLK) | 50010K15600ZA | - |
| 9 | Collar R Engine Mounting | 50122K15920 |
|
| 10 | Collar L Engine Mounting | 50123K15920 |
|
| 11 | Stopper Kick Starter | 50220K15920 |
|
| 12 | Rubber Cross Plate Guard | 50234K15900 |
|
| 13 | Film Protector | 50251K15920 |
|
| 14 | Bracket R Engine Hanger | 50351K15920 |
|
| 15 | Bracket L Engine Hanger | 50352K15920 |
|
| 16 | Cap RR Fork Pivot | 52161KYJ900 |
|
| 17 | Case Grommet | 83551300000 |
|
| 18 | Bolt Special 8X22 | 90103K15920 |
|
| 19 | Bolt Socket 8X20 | 90104K15920 |
|
| 20 | Bolt Flange 10X239 | 90111K15920 |
|
| 21 | Bolt Socket 5X9 | 90111MR5000 |
|
| 22 | BOLT, TORX, 8X16 | 90131K15920 |
|
| 23 | Screw U-Lock Flat 6X12 | 90164KZLA00 |
|
| 24 | Plug Cone Type | 90899422610 |
|
| 25 | Nut Flange 10MM | 9405010000 |
|
| 26 | Bolt Flange 10X120 | 957011012000 |
|
| 26 | Bolt Flange 10X120 | 957011012008 |
|
| 27 | Bolt Flange 10X130 | 957011013000 |
|
| 28 | Bolt Flange 6X16 | 960010601607 |
|
