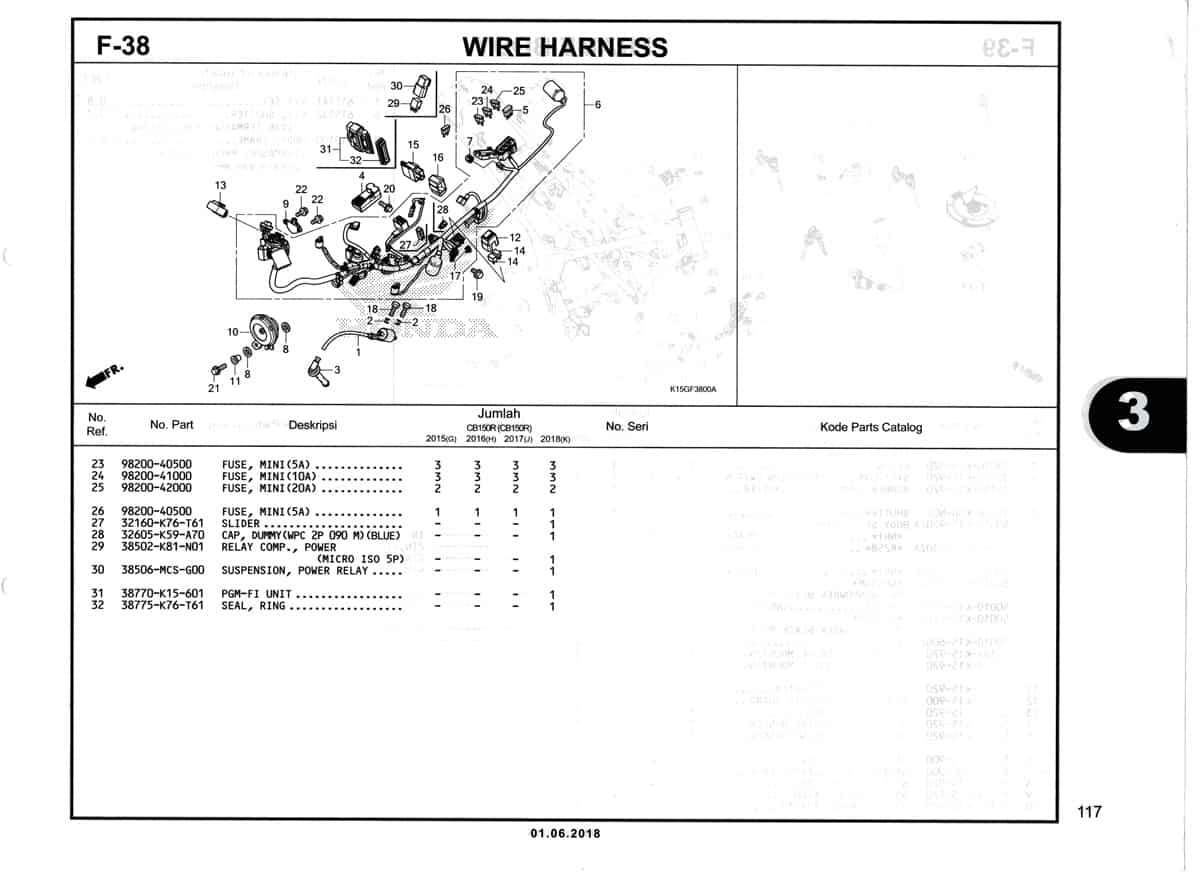

F38 – Wire Harness – Katalog Honda New CB150R StreetFire K15M

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K15921`
2	Spacer Ign Coil Part Number : `30520GFM900`
3	CAP ASSY NOISE SUPPRESSOR Part Number : `30700KY2702`
4	Reg Rect Comp Part Number : `31600K15921`
5	Diode Assy 3Way Part Number : `31730MAS601`
6	Harness Wire Part Number : `32100K15600`
7	Dummy Wpc 4P 090 M (RED) Part Number : `32606GEV762`
8	Rubber Tail Light Bracket Part Number : `33714KL3620`
9	Sensor Assy Bank Angle M6 Part Number : `35160KVS751`
11	Collar Horn Set Part Number : `38117K15600`
12	Suspension Relay Case (2P) Part Number : `38200K56N00`
13	Relay Comp Led Winker Part Number : `38301K15921`
14	Relay Comp Power Part Number : `38501KWN901`
17	Clip Rel Holder (NATURAL) Part Number : `91536STK003`
18	Bolt Hex 6X20 Part Number : `92101060204J`
19	Bolt Flange 6X10 Part Number : `957010601000`
20	Bolt Flange 6X16 Part Number : `957010601600`
21	Bolt Flange 6X18 Part Number : `957010601807`
22	Bolt Flange 6X14 Part Number : `960010601400`
23	Fuse Mini (5A) Part Number : `9820040500`
24	Fuse Mini (10A) Part Number : `9820041000`
25	Fuse F20A (MINI) Part Number : `9820042000`
26	Fuse Mini (5A) Part Number : `9820040500`
27	Slider Part Number : `32160K76T61`
28	Dummy Wpc 2P 090M (BLUE) Part Number : `32605K59A70`
29	Relay Comp Power Part Number : `38502K81N01`
30	Suspension Power Relay Part Number : `38506MCSG00`
31	Unit Comp,PGM-FI/IGN Part Number : `38770K15601`
32	Seal Ring Part Number : `38775K76T61`
