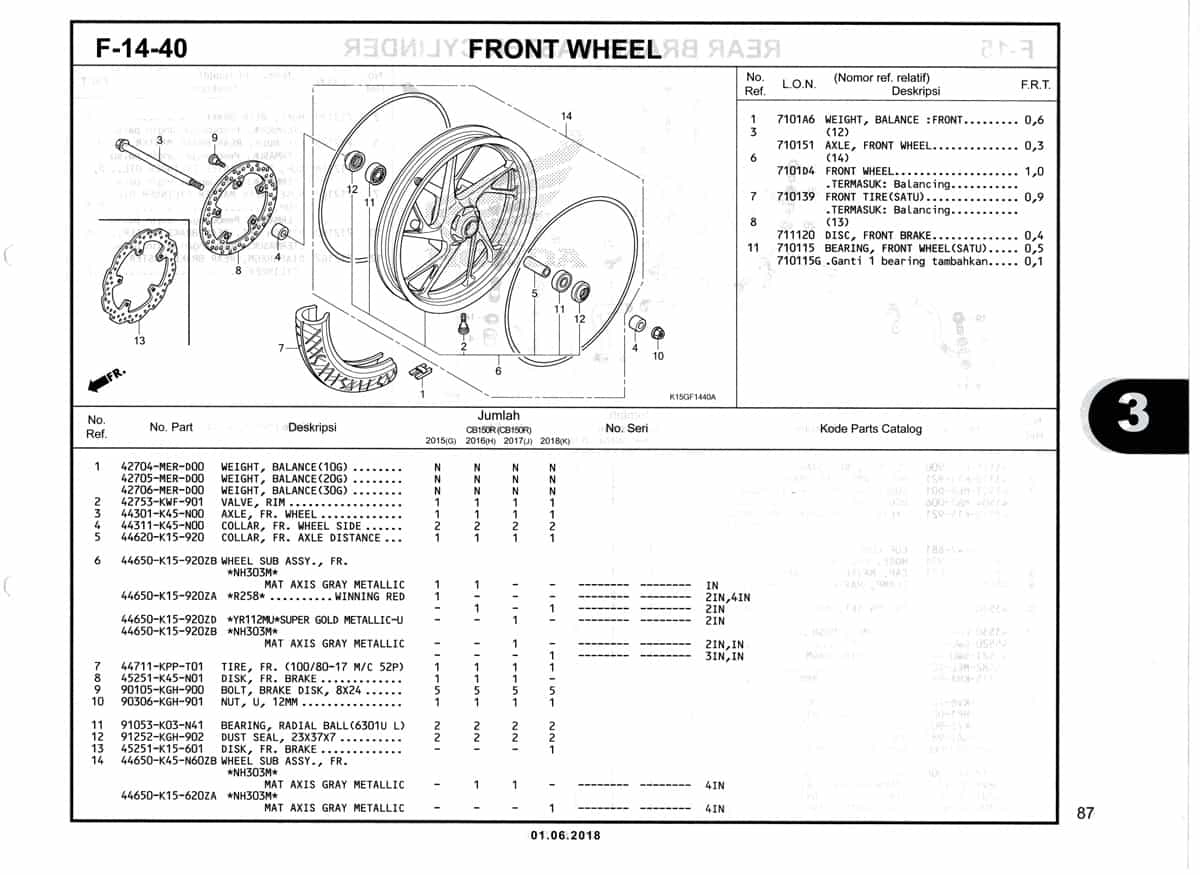

F14-40 – Front Wheel – Katalog Honda New CB150R StreetFire K15M

#	Informasi Produk	Visual
1	Weight Balance (10G) Part Number : `42704MERD00`
1	Weight Balance (20G) Part Number : `42705MERD00`
1	Weight Balance (30G) Part Number : `42706MERD00`
2	Valve Rim (TRITON) Part Number : `42753KWF901`
3	Axle FR Wheel Part Number : `44301K45N00`
4	Collar FR Wheel Side Part Number : `44311K45N00`
5	Collar FR Axle Distance Part Number : `44620K15920`
6	Wheel Sub Assy FR (MA AX GY) Part Number : `44650K15920ZB`
6	Wheel Sub Assy FR (WN RD) Part Number : `44650K15920ZA`
7	Tire FR (100/80-17 T/L) Part Number : `44711KPPT01`
7	Tire FR IRC 100-80-17MC52P Part Number : `44711K45N01`
9	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
10	Nut U 12MM Part Number : `90306KGH901`
11	Bearing Ball Radial 6301U L Part Number : `91053K03N41`
12	Dust Seal 23X37X7 Part Number : `91252KGH901`
13	Disk FR Brake Part Number : `45251K15601`
14	Wheel Sub Assy FR (MA AX GY) Part Number : `44650K15620ZA`
