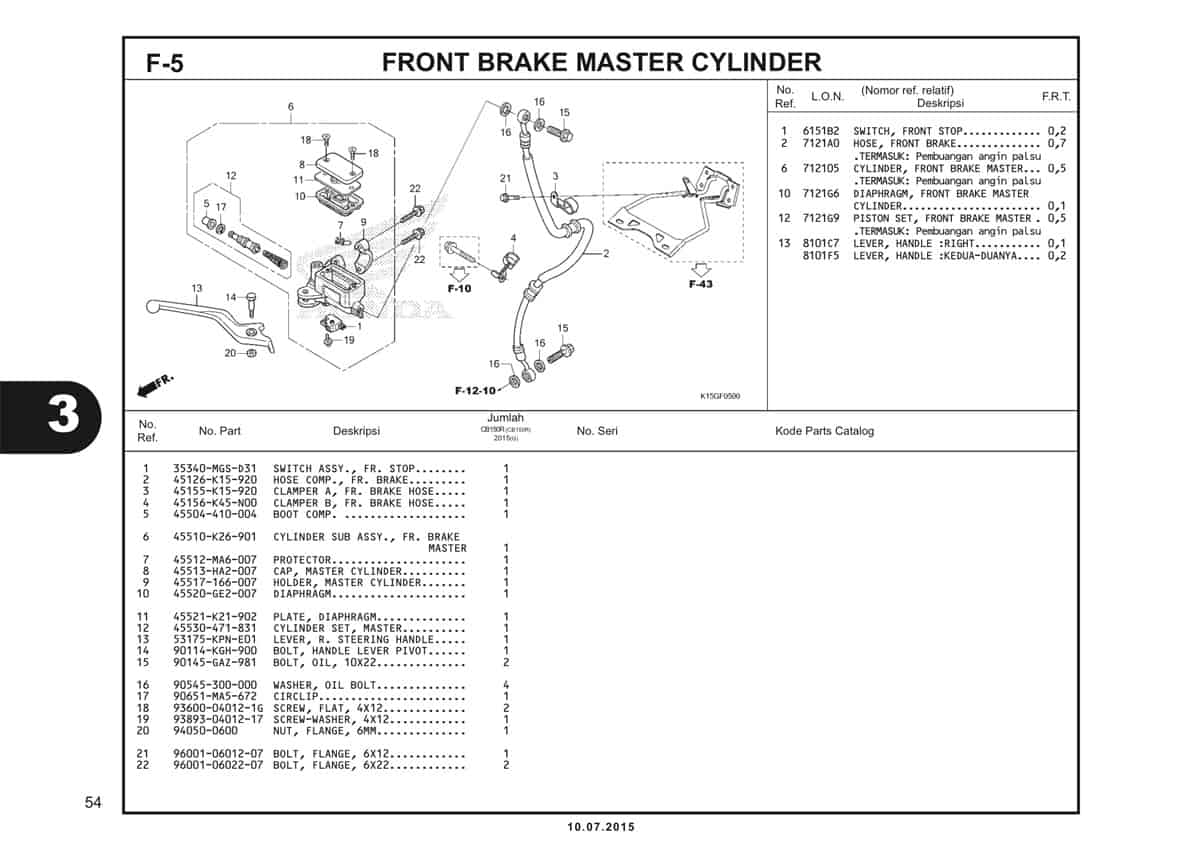

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Switch FR Stop Assy | 35340MGSD31 |
|
| 2 | Hose Comp FR Brake | 45126K15920 |
|
| 3 | Clamper A, FR. Brake Hose | 45155K15920 |
|
| 4 | Clamper B, FR. Brake Hose | 45156K45N00 |
|
| 5 | Boot Comp | 45504410004 |
|
| 6 | Cylinder Sub Assy FR Brake | 45510K26901 |
|
| 7 | Protector | 45512MA6006 |
|
| 8 | Cap Master Cylinder | 45513HA2007 |
|
| 9 | Holder Master Cylinder | 45517166006 |
|
| 10 | Diaphragm | 45520GE2006 |
|
| 11 | Plate Diaphragm | 45521K21902 |
|
| 12 | Cylinder Set Master | 45530471831 |
|
| 13 | Lever R Steering Handle | 53175KPNE01 |
|
| 14 | Bolt Handle Lever | 90114KGH900 |
|
| 15 | Bolt Oil 10X22 | 90145GAZ981 |
|
| 16 | Washer Oil Bolt | 90545300000 |
|
| 17 | Circlip | 90651MA5672 |
|
| 18 | Screw Flat 4X12 | 93600040121G |
|
| 19 | Screw Washer 4X12 | 938930401217 |
|
| 20 | Nut Flange 6MM | 9405006000 |
|
| 21 | Bolt Flange 6X12 | 960010601207 |
|
| 22 | Bolt Flange 6X22 | 960010602207 |
|
