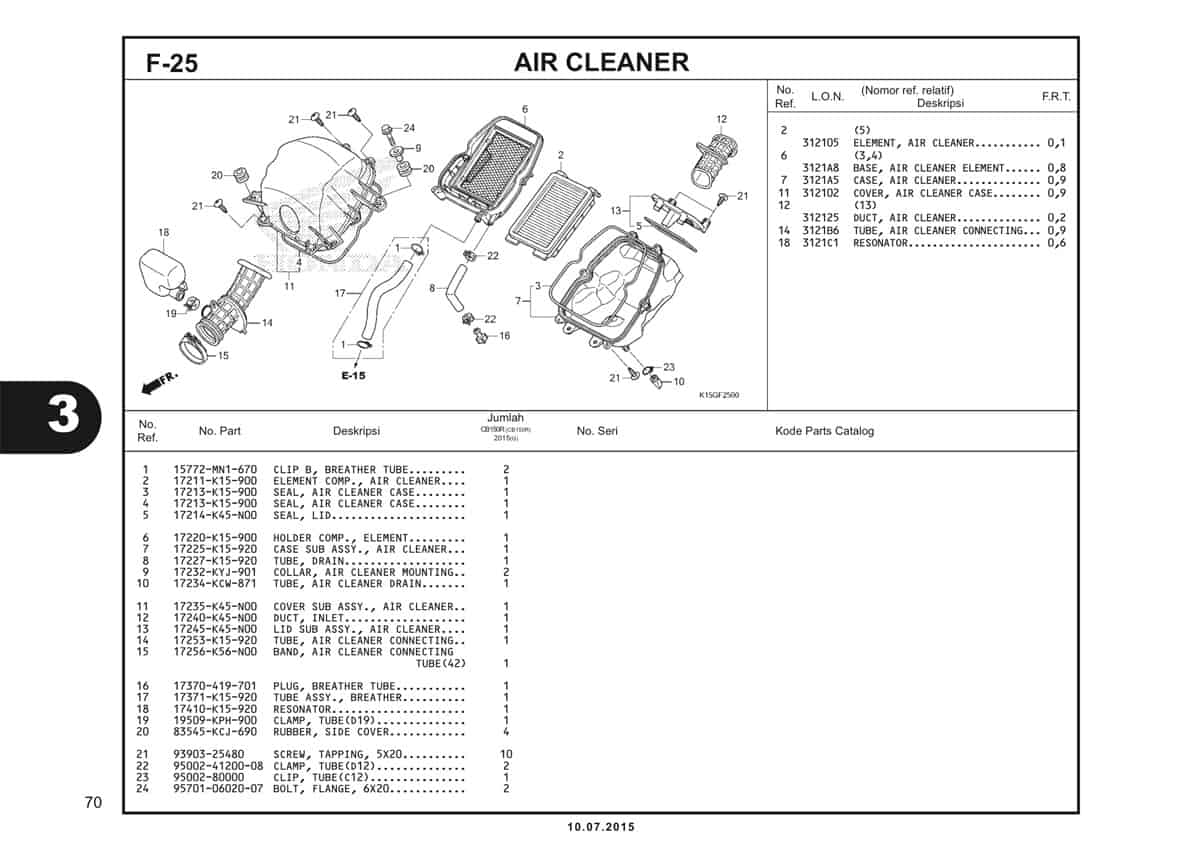

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clip B Breather Tube | 15772MN1670 |
|
| 2 | Element Comp Air/C | 17211K15900 |
|
| 3 | Seal Air/C Case | 17213K15900 |
|
| 4 | Seal Air/C Case | 17213K15900 |
|
| 5 | Seal Lid | 17214K45N00 |
|
| 6 | Holder Compelement | 17220K15900 |
|
| 7 | Case Sub Assy Air Cleaner | 17225K15920 |
|
| 8 | Tube Drain | 17227K15920 |
|
| 10 | Tube A/C Drain | 17234KCW871 |
|
| 11 | Cover Sub Assy Air Cleaner | 17235K45N00 |
|
| 12 | Duct Inet | 17240K45N00 |
|
| 13 | Lid Sub Assy Air Cleaner | 17245K45N00 |
|
| 14 | Tube Air Cleaner Connecting | 17253K15920 |
|
| 15 | Band Air Cleaner Connecting | 17256K56N00 |
|
| 16 | Plug Breather Tube | 17370419701 |
|
| 17 | Tube Breather | 17371K15920 |
|
| 18 | Resonator | 17410K15920 |
|
| 19 | Clamp Tube D 19 | 19509KPH900 |
|
| 20 | Rubber Cover | 83545KCJ690 |
|
| 21 | Screw Tap 5X2 | 9390325480 |
|
| 22 | Clamp D12 Tube | 950024120008 |
|
| 23 | Clip Tube (C12) | 9500280000 |
|
| 24 | Bolt Flange 6X20 | 957010602007 |
|
