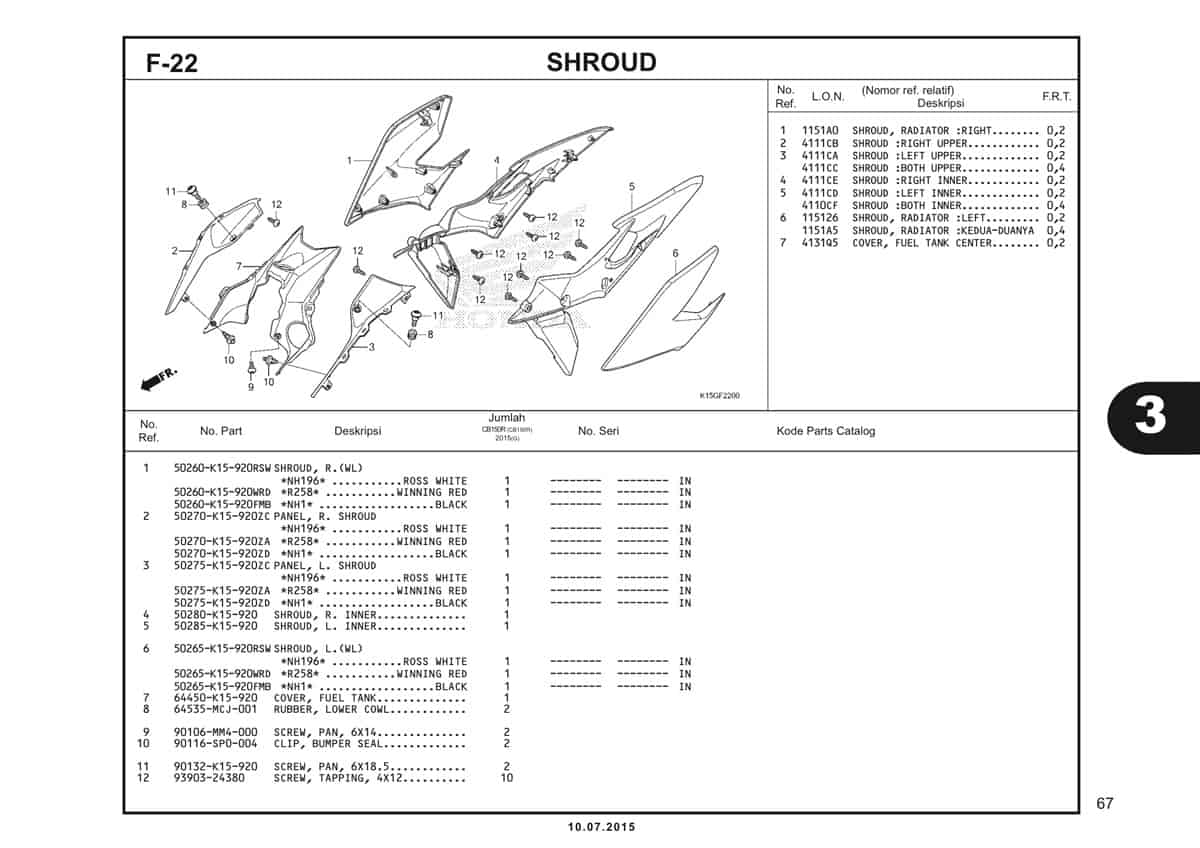

F22 – Shroud – Katalog Honda New CB150R StreetFire K15G

#	Informasi Produk	Visual
1	Shroud R(MT GN BL) Part Number : `50260K15920MGB`
1	Shroud R (RO WH) Part Number : `50260K15920RSW`
1	Shroud R (WN RD) Part Number : `50260K15920WRD`
1	Shroud R (BLK) Part Number : `50260K15920FMB`
2	Panel R Shroud (MT GN BL) Part Number : `50270K15920ZB`
2	Panel R Shroud (RO WH) Part Number : `50270K15920ZC`
2	Panel R Shroud (WN RD) Part Number : `50270K15920ZA`
2	Panel R Shroud (BLK) Part Number : `50270K15920ZD`
3	Panel L Shroud (MT GN BL) Part Number : `50275K15920ZB`
3	Panel L Shroud (RO WH) Part Number : `50275K15920ZC`
3	Panel L Shroud (WN RD) Part Number : `50275K15920ZA`
3	Panel L Shroud (BLK) Part Number : `50275K15920ZD`
4	Shroud R Inner Part Number : `50280K15920`
5	Shroud L Inner Part Number : `50285K15920`
6	Shroud L (MT GN BL) Part Number : `50265K15920MGB`
6	Shroud L (RO WH) Part Number : `50265K15920RSW`
6	Shroud L WN RD) Part Number : `50265K15920WRD`
6	Shroud L (BLK) Part Number : `50265K15920FMB`
7	Cover Fuel Tank Part Number : `64450K15920`
8	Rubber Lower Cowl Part Number : `64535MCJ001`
9	Screw Pan 6X14 Part Number : `90106MM4000`
10	Clip Bumper Seal Part Number : `90116SP0004`
10	Clip Bumper Seal Part Number : `90116K2PV61`
11	Screw Pan 6X18.5 Part Number : `90132K15920`
12	Screw Tapping 4X12 Part Number : `9390324380`
