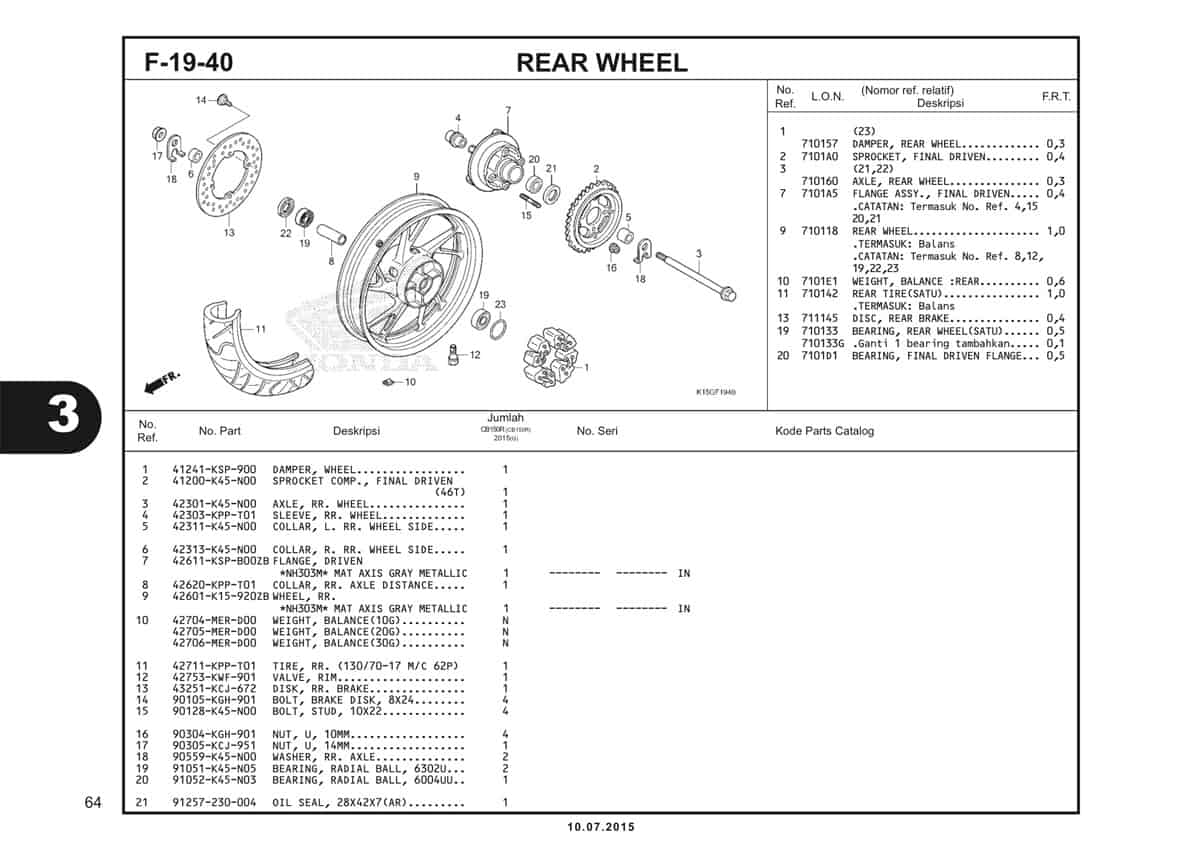

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Damper RR Wheel | 41241KSP900 |
|
| 2 | Sprkt Comp Final Driven | 41200K45N00 |
|
| 3 | Axle RR Wheel | 42301K45N00 |
|
| 4 | Sleeve RR. Wheel | 42303KPPT01 |
|
| 5 | Collar L RR Wheel Side | 42311K45N00 |
|
| 6 | Collar R RR Wheel Side | 42313K45N00 |
|
| 7 | Flange Final Driven (MA AX GY) | 42611KSPB00ZB |
|
| 8 | Collar RR Axle Dist | 42620KPPT01 |
|
| 9 | Wheel Sub Assy., RR. (MA AX GY) | 42650K45N40ZB |
|
| 9 | Wheel Sub Assy., RR. (NI OR) | 42650K45N40ZA |
|
| 9 | Wheel., RR. | 42601K15920ZA |
|
| 9 | Wheel RR | 42601K15920ZB |
|
| 10 | Weight Balance (10G) | 42704MERD00 |
|
| 10 | Weight Balance (20G) | 42705MERD00 |
|
| 10 | Weight Balance (30G) | 42706MERD00 |
|
| 11 | Tire RR (130/70-17 T/L) | 42711KPPT01 |
|
| 12 | Valve Rim (TRITON) | 42753KWF901 |
|
| 13 | Disk RR Brake | 43251KCJ672 |
|
| 14 | Bolt Brk Disk 8X24 | 90105KGH900 |
|
| 15 | Bolt Stud, 10X22 | 90128K45N00 |
|
| 16 | Nut U 10MM | 90304KGH901 |
|
| 17 | Nut U 14 MM | 90305KCJ951 |
|
| 18 | Washer RR Axle | 90559K45N00 |
|
| 19 | Bearing Radial Ball 6302U | 91051K45N05 |
|
| 20 | Bearing Radial Ball 6004UU | 91052K45N03 |
|
| 21 | Oil Seal 28X42X7 | 91257230003 |
|
| 21 | Oil Seal 28x42x7 | 91257230005 |
|
| 22 | Oil Seal 28X42X7 | 91257230003 |
|
| 22 | Oil Seal 28x42x7 | 91257230005 |
|
| 23 | O-Ring 51X2 | 91352KSP900 |
|
