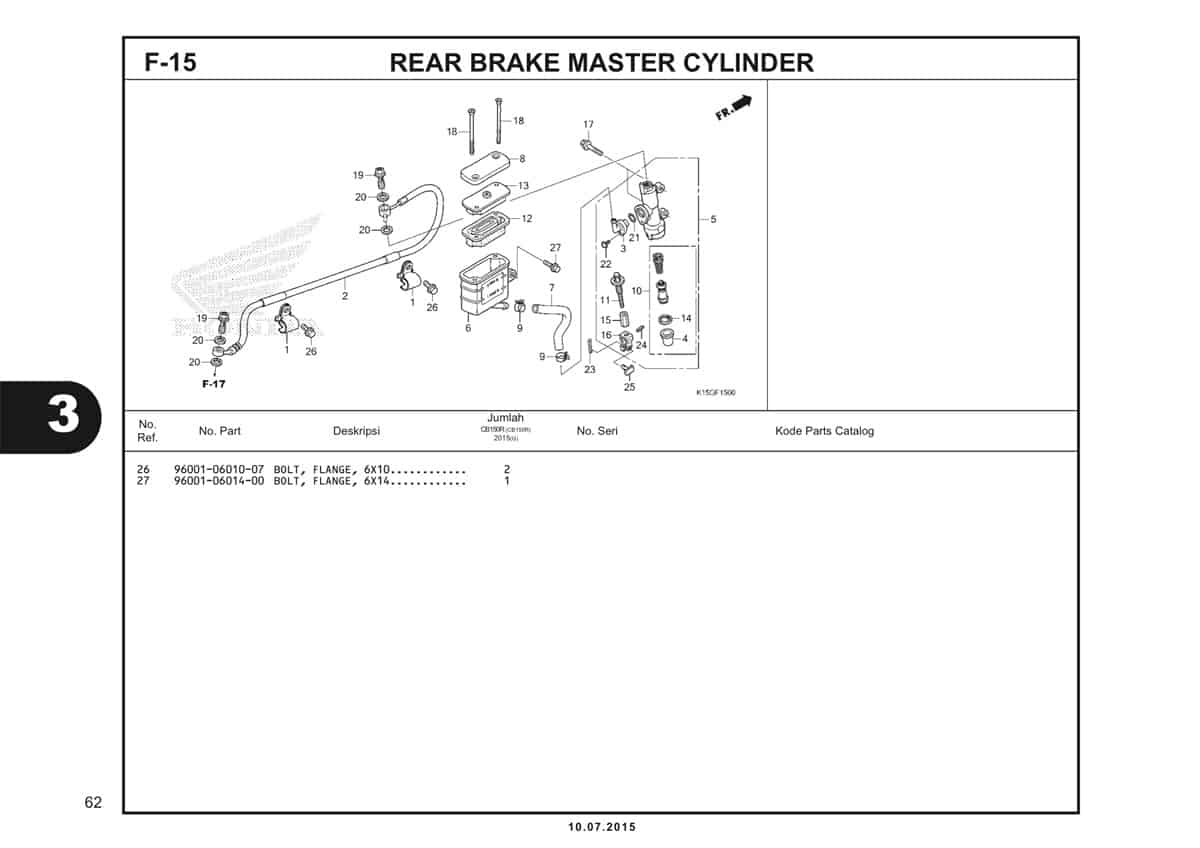

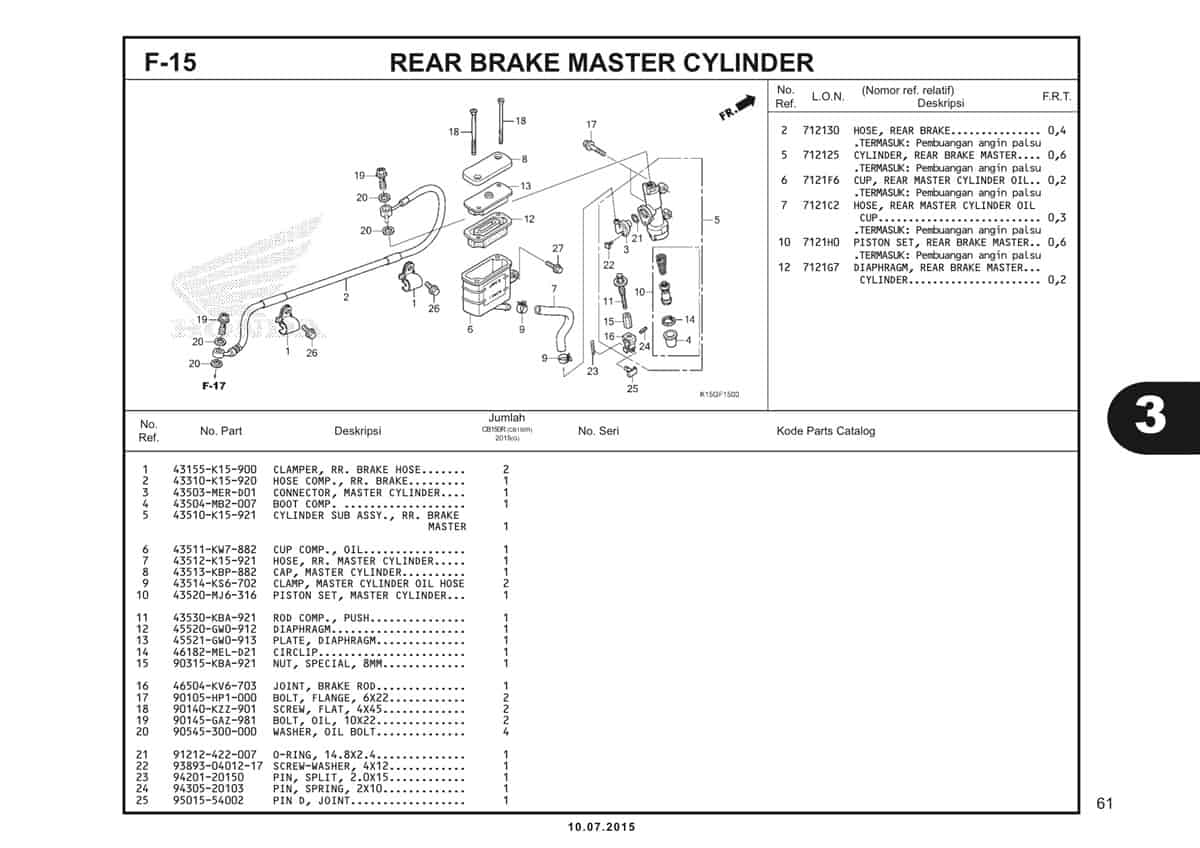

F15 – Rear Brake Master Cylinder – Katalog Honda New CB150R StreetFire K15G

#	Informasi Produk	Visual
1	Clamper RR Brk Hose Part Number : `43155K15900`
2	Hose Comp RR. Brake Part Number : `43310K15920`
3	Connector M/C Part Number : `43503MERD01`
4	Boot Comp Part Number : `43504MB2007`
5	Cylinder Sub Assy, RR Brake Part Number : `43510K15921`
6	Oil Cup Comp Part Number : `43511KW7882`
7	Hose RR. Master Cylinder Part Number : `43512K15921`
8	Cap Master Cylinder Part Number : `43513KBP881`
9	Clamp Master Cylinder Oil Part Number : `43514KS6702`
10	M/C Piston Set Part Number : `43520MJ6316`
11	Rod Comp Push (NISSIN) Part Number : `43530KBA921`
12	Diaphragm Part Number : `45520GW0911`
13	Plate Diaphragm Part Number : `45521GW0913`
14	Circlip M/C Part Number : `46182MELD21`
15	Nut Special 8MM (NISSIN) Part Number : `90315KBA921`
16	Joint Brk Rod Part Number : `46504KV6703`
17	Bolt Flange SH 6X22 Part Number : `90105HP1000`
18	Screw Flat 4X45 Part Number : `90140KZZ901`
19	Bolt Oil 10X22 Part Number : `90145GAZ981`
20	Washer Oil Bolt Part Number : `90545300000`
21	O Ring Part Number : `91212422007`
22	Screw Washer 4X12 Part Number : `938930401217`
23	Pin Cotter 2.0X15 Part Number : `9420120150`
24	Pin Spring 2X10 Part Number : `9430520103`
25	Pin D Joint Part Number : `9501554000`
26	Bolt Flange SH 6X10 Part Number : `960010601007`
27	Bolt Flange 6X14 Part Number : `960010601400`
