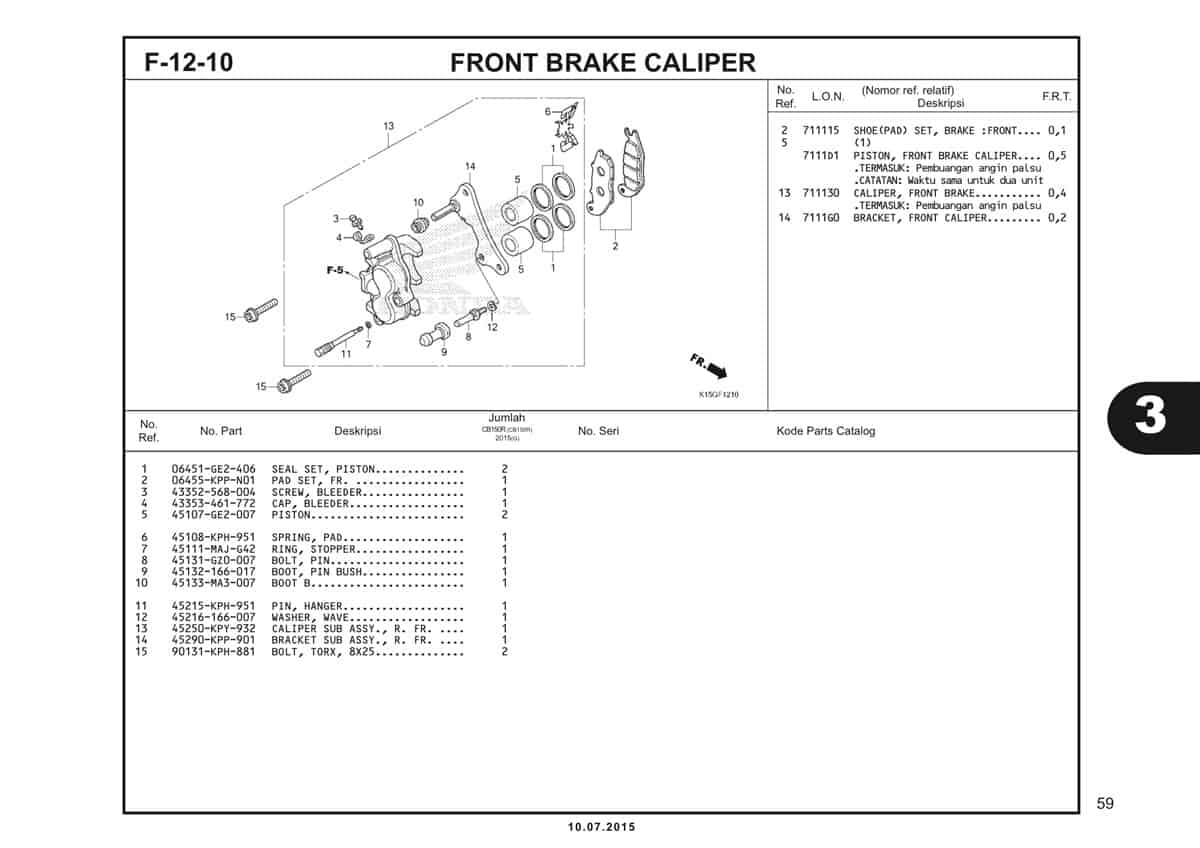

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Seal Set Piston | 06451GE2405 |
|
| 2 | Pad Set FR | 06455KYE901 |
|
| 2 | Pad Set FR | 06455KPPN02 |
|
| 3 | Screw Bleeder | 43352568004 |
|
| 4 | Cap Bleeder | 43353461772 |
|
| 5 | Piston | 45107GE2007 |
|
| 6 | Sprind Pad | 45108KPH951 |
|
| 7 | Stopper Ring | 45111MAJG42 |
|
| 8 | Pin Bolt | 45131GZ0007 |
|
| 9 | Bush Pin | 45132166017 |
|
| 9 | Bush Pin | 45132166016 |
|
| 10 | Boot B | 45133MA3007 |
|
| 11 | Pin Hanger | 45215KPH951 |
|
| 12 | Washer Wave | 45216166007 |
|
| 13 | Caliper Sub Assy R FR | 45250KPY932 |
|
| 14 | Brkt Sub Assy FR | 45290KPP901 |
|
| 15 | Bolt Torx 8X25 | 90131KPH880 |
|
