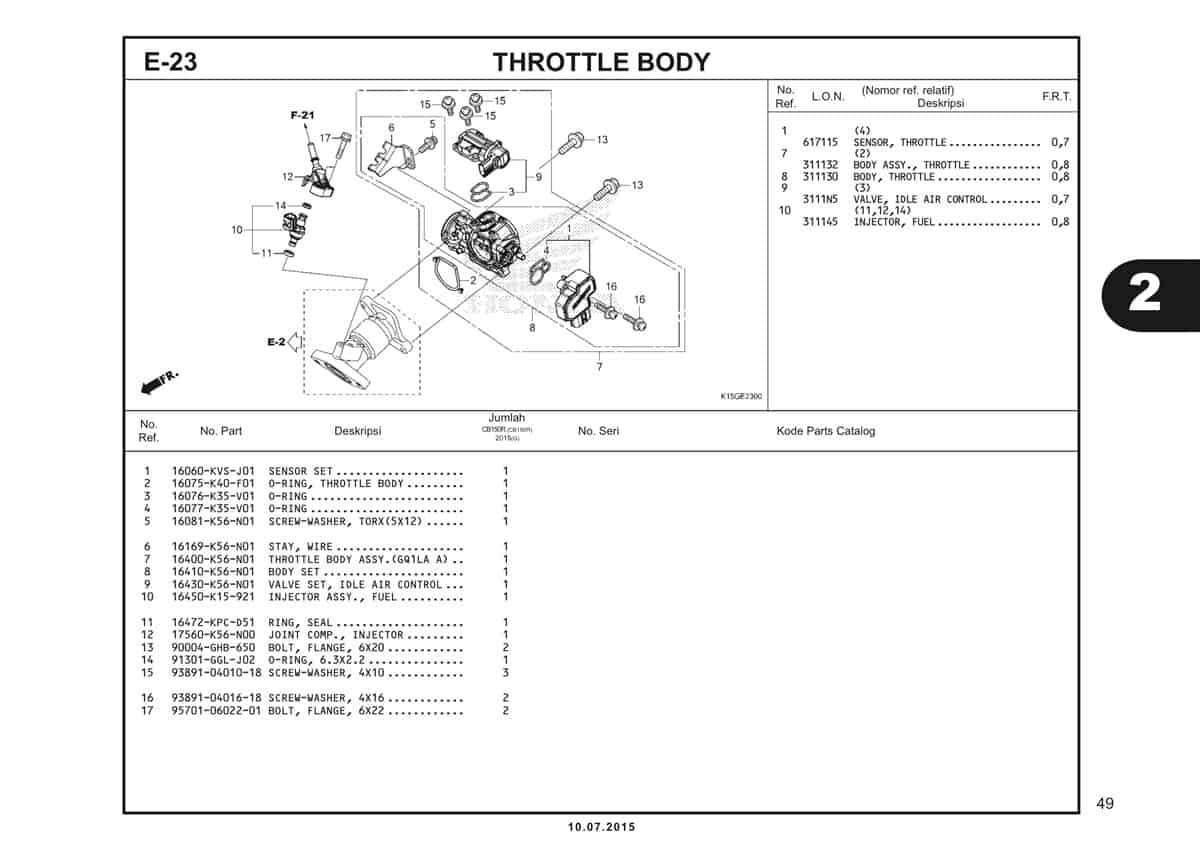

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Sensor Set | 16060KVSJ01 |
|
| 1 | Sensor Set | 16060KVSJ02 |
|
| 2 | O-Ring Throttle Body | 16075K40F01 |
|
| 3 | O-Ring | 16076K35V01 |
|
| 4 | O-Ring | 16077K35V01 |
|
| 5 | Screw Washer Torx (5X12) | 16081K56N01 |
|
| 6 | Stay Wire | 16169K56N01 |
|
| 7 | Throttle Body Assy (GQ1LA A) | 16400K56N01 |
|

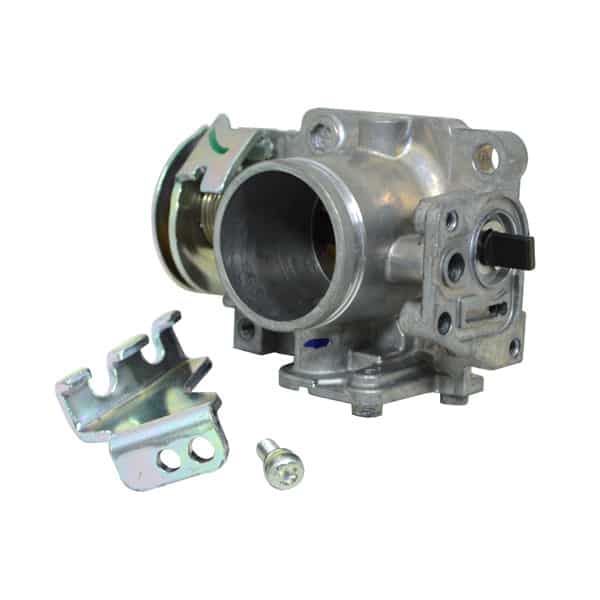

| 8 | Body Set | 16410K56N01 |
|
| 9 | Valve Set Idle Air Control | 16430K56N01 |
|
| 10 | Injector Assy Fuel | 16450K15921 |
|
| 11 | Ring Seal | 16472KPCD51 |
|
| 12 | Joint Comp Injector | 17560K56N00 |
|
| 13 | Bolt Flange 6X20 | 90004GHB650 |
|
| 14 | O-Ring 6,3X2,2 | 91301GGLJ02 |
|
| 15 | Screw Washer 4X10 | 938910401018 |
|
| 16 | Screw Washer 4X16 | 938910401618 |
|
| 17 | Bolt Flange 6X22 | 957010602200 |
|
