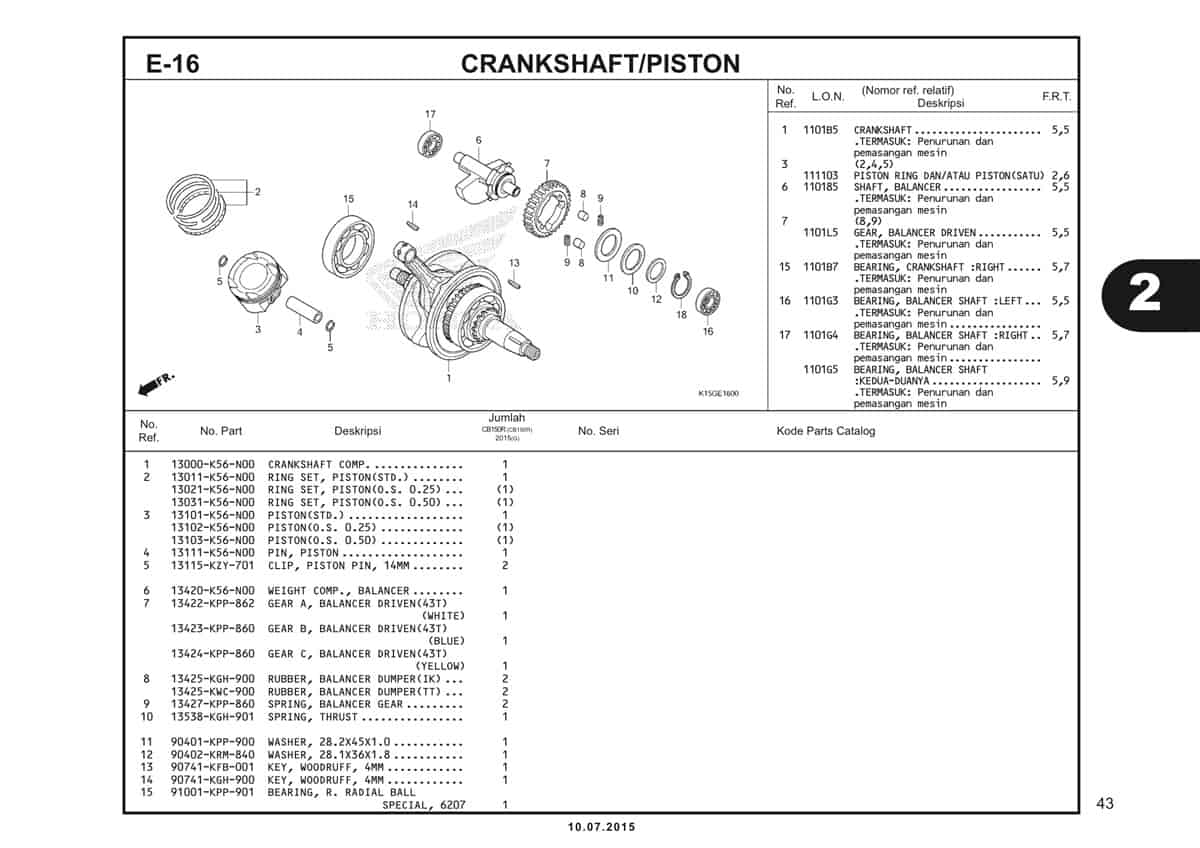

E16 – Crankshaft/Piston – Katalog Honda New CB150R StreetFire K15G

#	Informasi Produk	Visual
1	Crankshaft COMP Part Number : `13000K56N00`
2	Ring Set Piston (STD) Part Number : `13011K56N00`
2	Ring Set Piston (0.25) Part Number : `13021K56N00`
2	Ring Set Piston (0,50) Part Number : `13031K56N00`
3	Piston (STD) Part Number : `13101K56N00`
3	Piston (0,25) Part Number : `13102K56N00`
3	Piston (0.50) Part Number : `13103K56N00`
4	Pin Piston Part Number : `13111K56N00`
5	Clip Piston Pin 14MM Part Number : `13115KZY701`
5	Clip Piston Pin 14MM Part Number : `13115KZY700`
6	Weight Comp Blancer Part Number : `13420K56N00`
7	Gear A, Balancer Driven 43 Part Number : `13422KPP860`
7	Gear B Balance Driven Part Number : `13423KPP860`
7	Gear C,Balancer Driven Part Number : `13424KPP860`
8	Rubber Balancer Dumper Part Number : `13425KGH900`
8	Rubber Balancer Dumper Part Number : `13425KWC900`
8	Rubber Balancer Dumper Part Number : `13425KGH901`
9	Spring Balancer Gear Part Number : `13427KPP860`
10	Spring Thrust Part Number : `13538KGH901`
10	Spring Thrust Part Number : `13538KGH900`
11	Washer 28.2X45X1.0 Part Number : `90401KPP900`
12	28 1x34x1.8 Part Number : `90402KRM840`
13	Key Woodruff 4MM Part Number : `90741KFB001`
13	Key Woodruff 4MM Part Number : `90741KFB000`
14	Key Woodruff 4MM Part Number : `90741KGH900`
15	Brg, Ball Radial 6207 SPL Part Number : `91001KPP901`
16	Bearing Ball Radial 6201 SPL Part Number : `91003KPP931`
17	Bearing Ball 91005K56N01 6201U Part Number : `91008K56N01`
18	CIRCLIP EX 28 Part Number : `9451028000`
