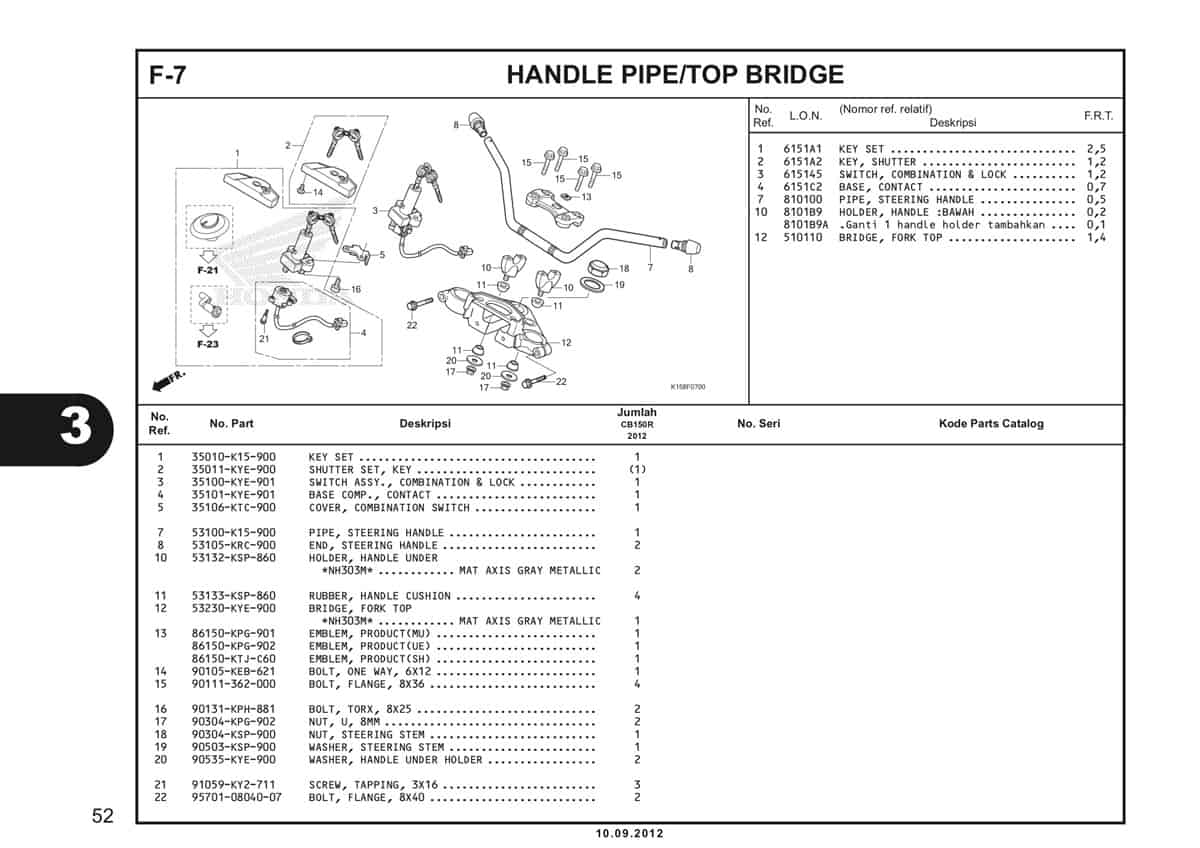

F7 – Handle Pipe/Top Bridge – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Key Set Part Number : `35010K15901`
2	Key Set Shutter Part Number : `35011KYE900`
3	Switch Assy Comb & Lock Part Number : `35100KYE901`
4	Base Comp Contact Part Number : `35101KYE901`
5	Cover Combination Switch Part Number : `35106KTC900`
7	Pipe Steering Handle Part Number : `53100K15900`
8	End Steering Handle Part Number : `53105KRC900`
8	End Steering Handle Part Number : `53105K3BH00`
10	Holder Handle Under Part Number : `53132KSP860`
11	Rubber Handle Cushion Part Number : `53133KSP860`
12	Bridge Fork Top Part Number : `53230KYE900`
13	Emblem Wing Mark Part Number : `86150KPG901`
13	Emblem Product (UEHARA) Part Number : `86150KPG902`
13	Emblem Product Part Number : `86150KTJC60`
14	Bolt One-Way M6X1 Part Number : `90105KEB621`
15	Bolt Flange 8x36 Part Number : `90111362000`
16	Bolt Torx 8X25 Part Number : `90131KPH880`
17	Nut U 8MM Part Number : `90304KPG901`
18	Nut Steering Stem Part Number : `90304KSP900`
19	Washer Steering Part Number : `90503KSP900`
20	Washer Handle Under Holder Part Number : `90535KYE900`
21	Screw Tapping 3X16 Part Number : `91059KY2711`
22	Bolt Flange 8X40 Part Number : `957010804007`
