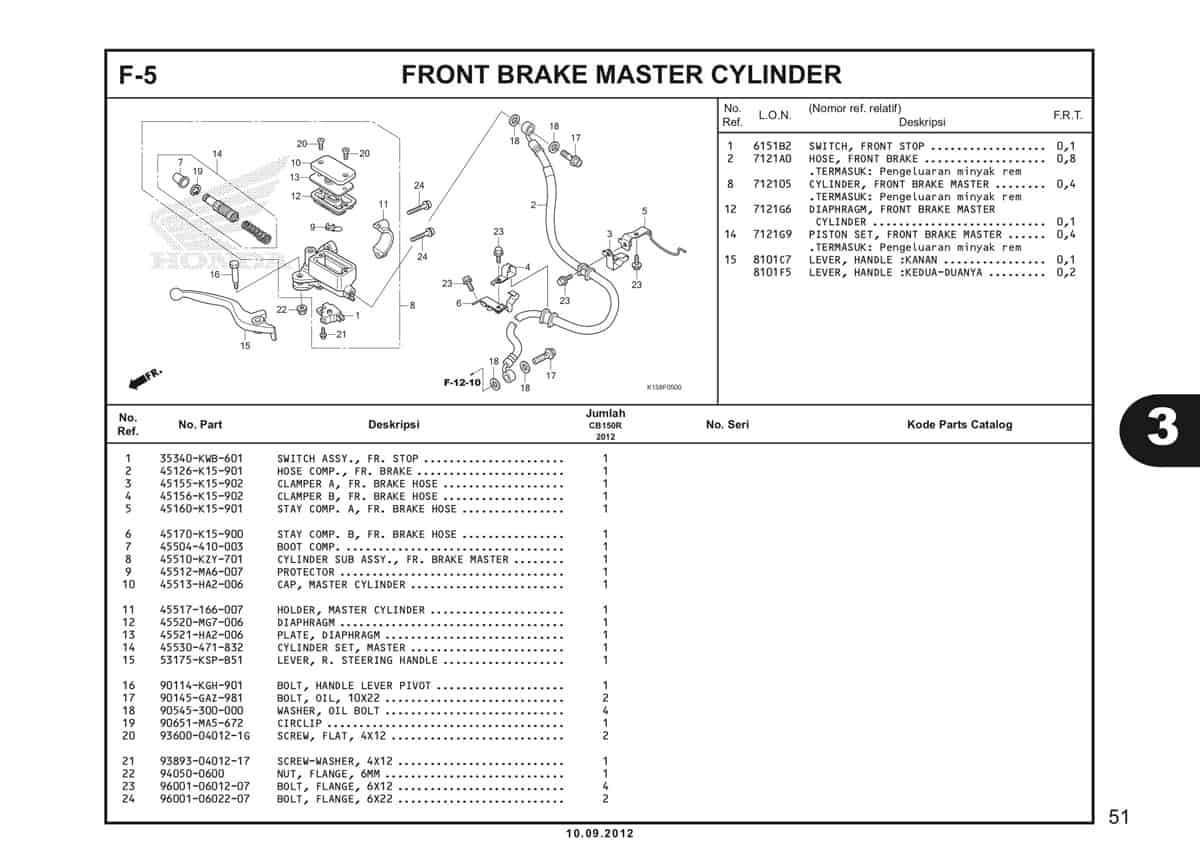

F5 – Front Brake Master Cylinder – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Switch FR Stop Assy Part Number : `35340KWB601`
2	Hose Comp FR Brake Part Number : `45126K15901`
3	Clamper A FR Brake Hose Part Number : `45155K15902`
4	Clamper B FR Brake Hose Part Number : `45156K15902`
5	Stay Comp A FR Brake Hose Part Number : `45160K15901`
6	Stay Comp B FR Brake Hose Part Number : `45170K15900`
7	Boot Comp Part Number : `45504410003`
8	Cylinder Sub Assy FR Brake Part Number : `45510KZY702`
9	Protector Part Number : `45512MA6006`
10	Cap Master Cylinder Part Number : `45513HA2006`
11	Holder Master Cylinder Part Number : `45517166006`
12	Diaphragm Part Number : `45520MG7006`
13	Plate Diaphragm Part Number : `45521HA2006`
14	Cylinder Set Master Part Number : `45530471831`
15	Lever R Steering Handle Part Number : `53175KSPB51`
16	Bolt Handle Lever Part Number : `90114KGH901`
16	Bolt Handle Lever Part Number : `90114KGH900`
17	Bolt Oil 10X22 Part Number : `90145GAZ981`
18	Washer Oil Bolt Part Number : `90545300000`
19	Circlip Part Number : `90651MA5672`
20	Screw Flat 4X12 Part Number : `93600040121G`
21	Screw Washer 4X12 Part Number : `938930401217`
22	Nut Flange 6MM Part Number : `9405006000`
23	Bolt Flange 6X12 Part Number : `960010601207`
24	Bolt Flange 6X22 Part Number : `960010602207`
