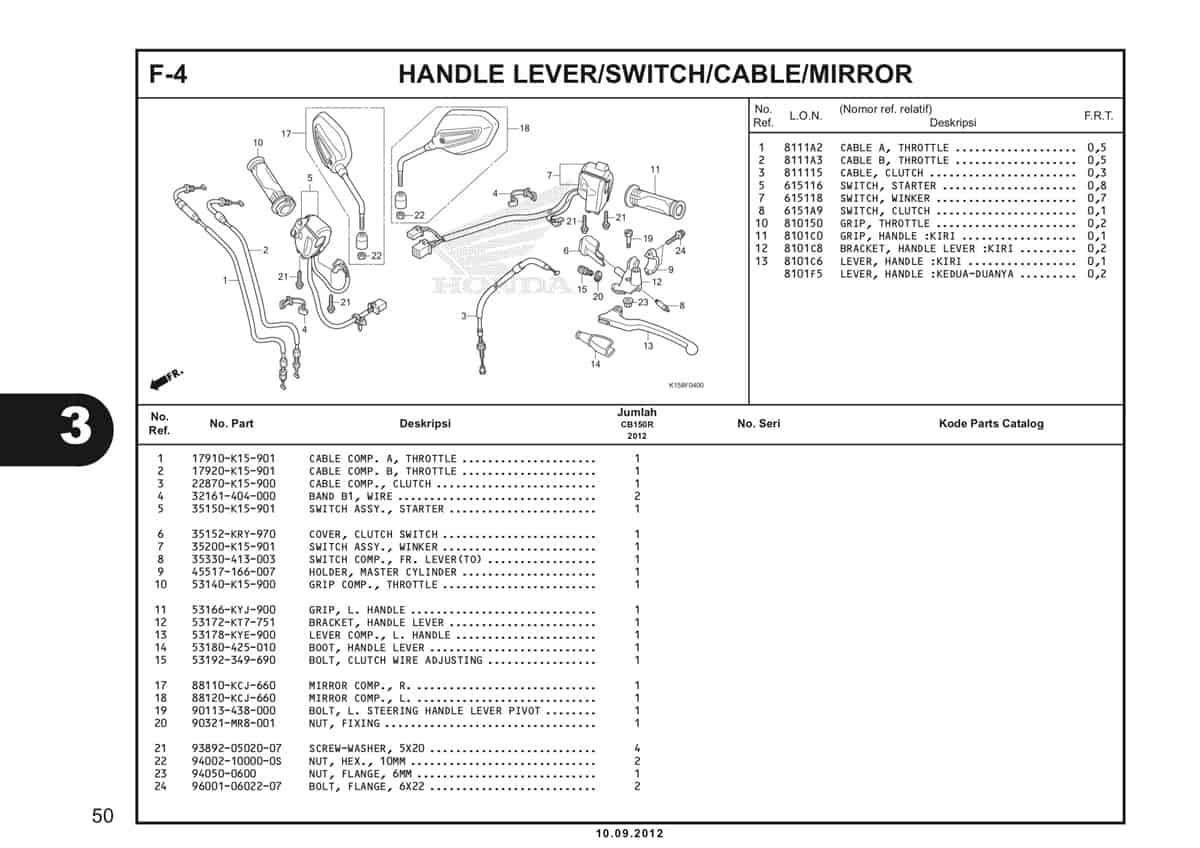

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cable Comp Throttle | 17910K15901 |
|
| 2 | Cable Comp B Throttle | 17920K15901 |
|
| 3 | Cable Comp Clutch | 22870K15900 |
|
| 4 | Band B1 Wire /K5 | 32161404000 |
|
| 5 | Switch Assy Start | 35150K15901 |
|
| 6 | Cover Clutch Switch | 35152KRY970 |
|
| 7 | Switch Assy Winker | 35200K15902 |
|
| 8 | Switch FR Lever | 35330413003 |
|
| 9 | Holder Master Cylinder | 45517166006 |
|
| 10 | Grip Comp Throttle | 53140K15900 |
|
| 11 | Grip L Handle | 53166KYJ900 |
|
| 12 | Bracket Handle Lever | 53172KT7751 |
|
| 13 | Lever Comp L Handle | 53178KYE900 |
|
| 14 | Boot Handle Lever | 53180425010 |
|
| 15 | Bolt Clutch Wire Adjust | 53192349690 |
|
| 17 | Mirror Assy R Back | 88110KCJ660 |
|
| 18 | Mirror Assy L Back | 88120KCJ660 |
|
| 19 | Bolt L Handle | 90113438000 |
|
| 20 | Nut Fixing | 90321MR8000 |
|
| 21 | Screw Washer 5X20 | 938920502007 |
|
| 22 | Nut Hex 10MM | 94002100000S |
|
| 23 | Nut Flange 6MM | 9405006000 |
|
| 24 | Bolt Flange 6X22 | 960010602207 |
|
