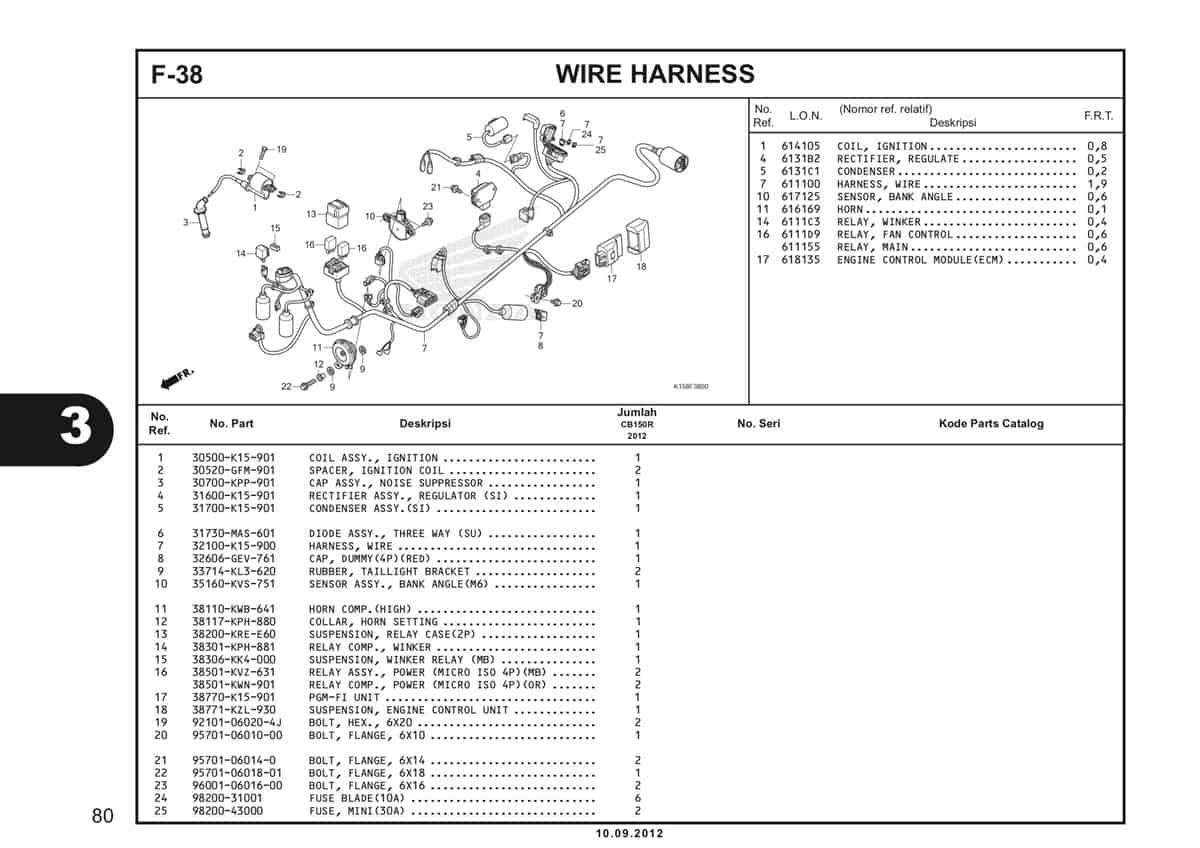

F38 – Wire Harness – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Coil Assy Ignition Part Number : `30500K15901`
2	Spacer Ignition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Part Number : `30700KPP901`
4	Rectifier Assy Regulator Part Number : `31600K15901`
5	Condenser Assy Part Number : `31700K15901`
6	Diode Assy 3 Way Part Number : `31730MAS601`
7	Harness Wire Part Number : `32100K15901`
8	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
9	Rubber Tail Light Bracket Part Number : `33714KL3620`
10	Sensor Assy Bank Angle M6 Part Number : `35160KVS751`
11	Horn Comp (High) Part Number : `38110KWB641`
12	Collar Horn Setting Part Number : `38117KPH880`
14	Relay Comp Winker Part Number : `38301KPH881`
14	Relay Comp Winker Part Number : `38301KCJ661`
15	Suspension Relay Part Number : `38306KK4000`
16	Relay Comp Power (Micro Iso 4P) (OR) Part Number : `38501KWN901`
17	Unit Comp PGM-FI Part Number : `38770K15903`
18	Suspension Engine Control Part Number : `38771KZL930`
19	Bolt Hex 6X20 Part Number : `92101060204J`
20	Bolt Flange 6X10 Part Number : `957010601000`
21	Bolt Flange 6X14 Part Number : `957010601400`
22	Bolt Flange 6X18 Part Number : `957010601801`
23	Bolt Flange SH 6X16 Part Number : `960010601600`
24	Fuse Blade 10A Part Number : `9820031001`
25	Fuse Mini 30A Part Number : `9820043000`
