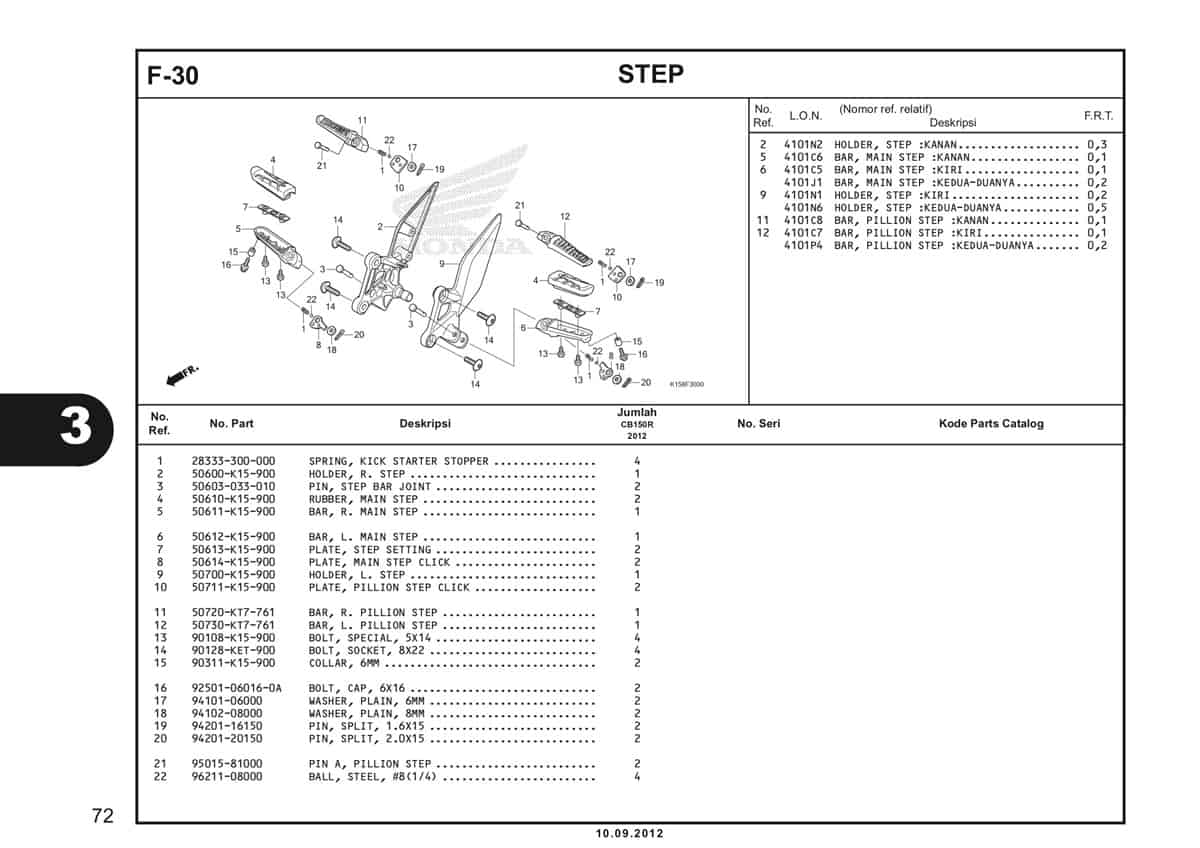

F30 – Step – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Spring Kick Starter Stopper Part Number : `28333300000`
2	Holder R Step Part Number : `50600K15900`
3	Pin Step Bar Joint Part Number : `50603033010`
4	Rubber Main Step Part Number : `50610K15900`
5	Bar R Main Step Part Number : `50611K15900`
6	Bar L Main Step Part Number : `50612K15900`
7	Plate Step Setting Part Number : `50613K15900`
8	Plate Main Step Click Part Number : `50614K15900`
9	Holder L Step Part Number : `50700K15900`
10	Plate P Step Click Part Number : `50711K15900`
11	Arm R Pillion Step Part Number : `50720KT7761`
12	Arm L Pillion Step Part Number : `50730KT7761`
13	Bolt Special 5X14 Part Number : `90108K15900`
14	Bolt Socket 8X22 Part Number : `90128KET900`
15	Collar 6MM Part Number : `90311K15900`
16	Bolt Hex Cap 6X16 Part Number : `92501060160A`
17	Washer Plain 6MM Part Number : `9410106000`
18	Washer Plain 8MM Part Number : `9410208000`
19	Pin Cotter 16X15 Part Number : `9420116150`
20	Pin Cotter 2.0X15 Part Number : `9420120150`
21	Pin Pillion Step Part Number : `9501581000`
22	Ball Steel 8 Part Number : `9621108000`
