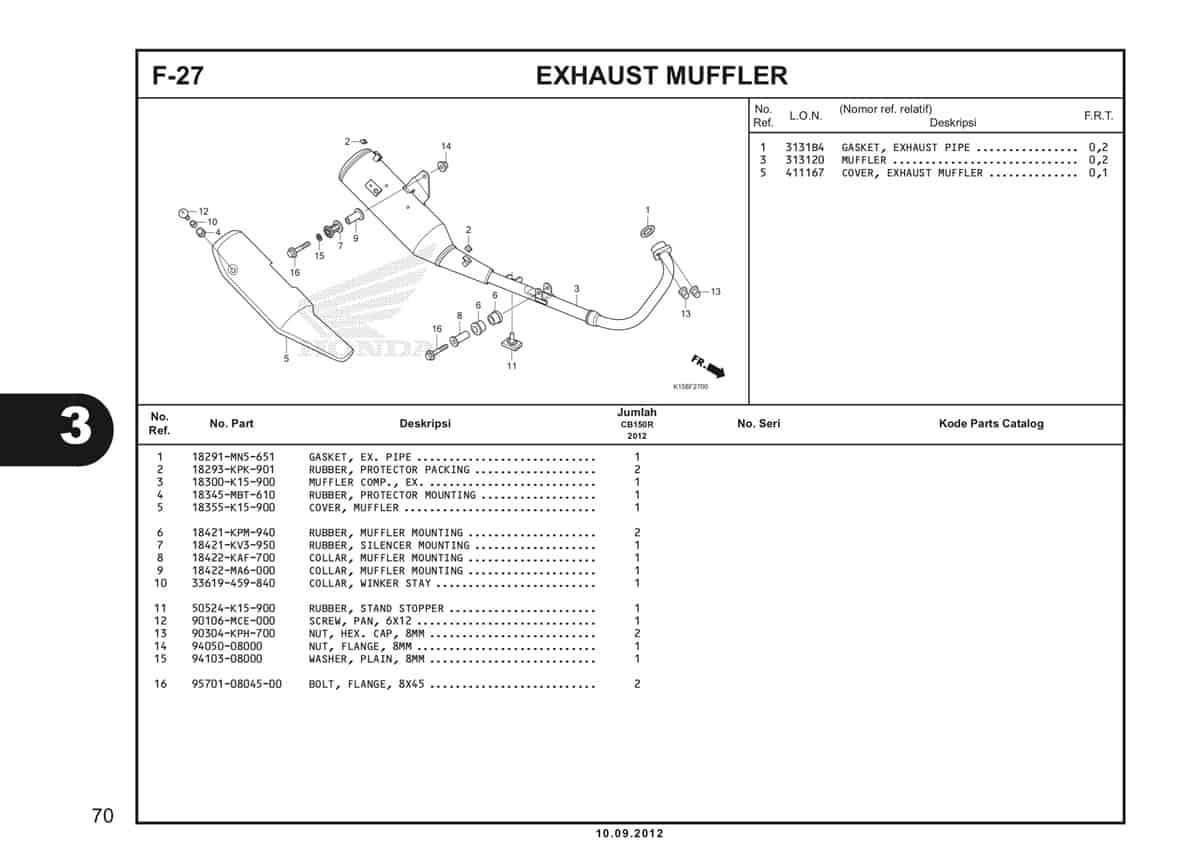

F27 – Exhaust Muffler – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Gasket Exhaust Pipe Part Number : `18291MN5650`
2	Rubber Packing Protector Part Number : `18293KPK900`
3	Muffler Comp Ex Part Number : `18300K15900`
4	Rubber Protector Mount Part Number : `18345MBT610`
5	Cover Muffler Part Number : `18355K15900`
6	Rubber Muffler Mount Part Number : `18421KPM940`
7	Rubber Silencer Mount Part Number : `18421KV3950`
8	Collar Muffler Mounting Part Number : `18422KAF700`
9	Collar Muffler Mount Part Number : `18422MA6000`
10	Collar Winker Stay Part Number : `33619459840`
11	Rubber A Stand Stopper Part Number : `50524K15900`
12	Screw Pan 6X12 Part Number : `90106MCE000`
13	Nut Hex Cap 8MM Part Number : `90304KPH700`
14	Nut Flange 8MM Part Number : `9405008000`
15	Washer Plain 8MM Part Number : `9410308000`
16	Bolt Flange 8X45 Part Number : `957010804500`
