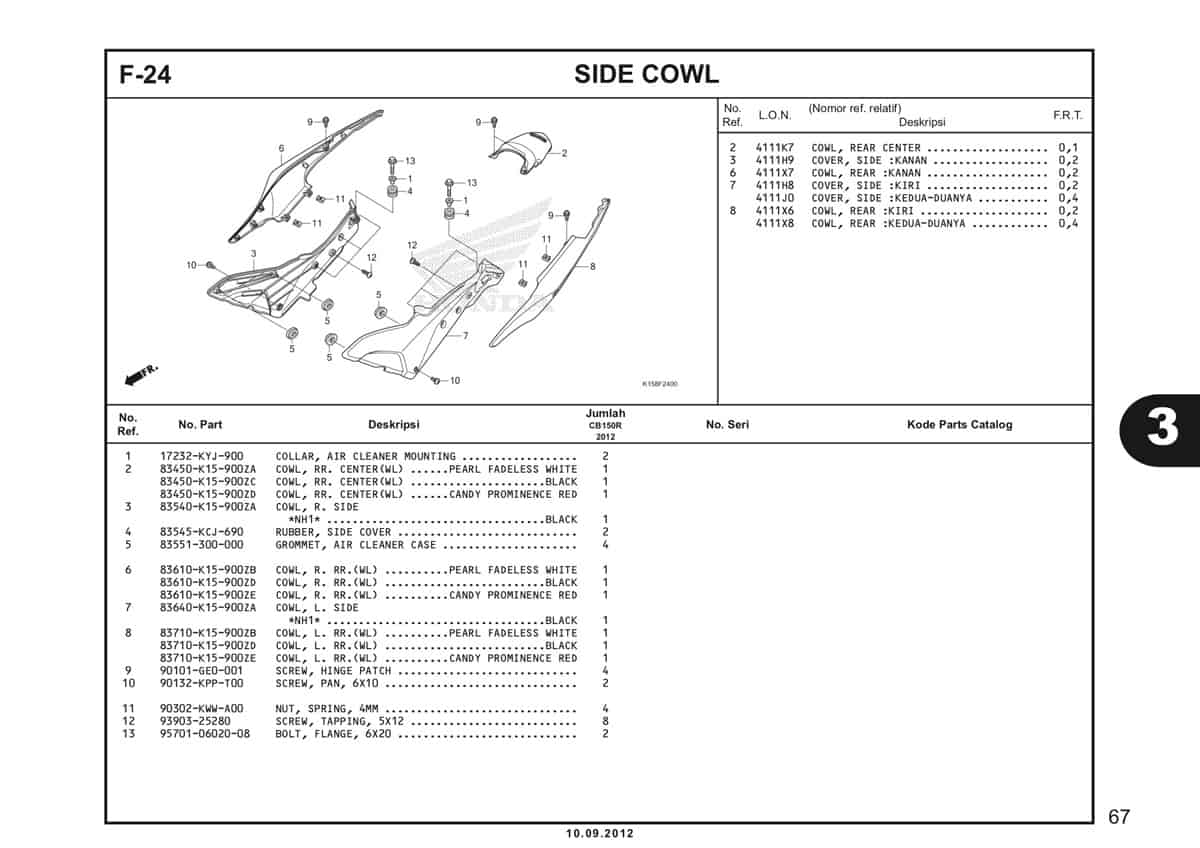

F24 – Side Cowl – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Collar Air Cleaner Mounting Part Number : `17232KYJ900`
2	Cowl RR Center (PL FD WH) Part Number : `83450K15900ZA`
2	Cowl RR Center (BLK) Part Number : `83450K15900ZC`
2	Cowl RR Center (CN PM RD) Part Number : `83450K15900ZD`
3	Cowl R Side Part Number : `83540K15900ZA`
4	Rubber Cover Part Number : `83545KCJ690`
5	Case Grommet Part Number : `83551300000`
6	Cowl R RR (PL FD WH) Part Number : `83610K15900ZB`
6	Cowl R RR (BLK) Part Number : `83610K15900ZD`
6	Cowl R RR (CN PM RD) Part Number : `83610K15900ZE`
7	Cowl L Side Part Number : `83640K15900ZA`
8	Cowl L RR (PL FD WH) Part Number : `83710K15900ZB`
8	Cowl L RR (BLK) Part Number : `83710K15900ZD`
8	Cowl L RR (CN PM RD) Part Number : `83710K15900ZE`
9	Screw Hinge Patch Part Number : `90101GE0001`
10	Screw Pan 6X10 Part Number : `90132KPPT00`
11	Nut Spring 4MM Part Number : `90302KWWA00`
12	Screw Tapping 5X12 Part Number : `9390325280`
13	Bolt Flange 6X20 Part Number : `957010602008`
