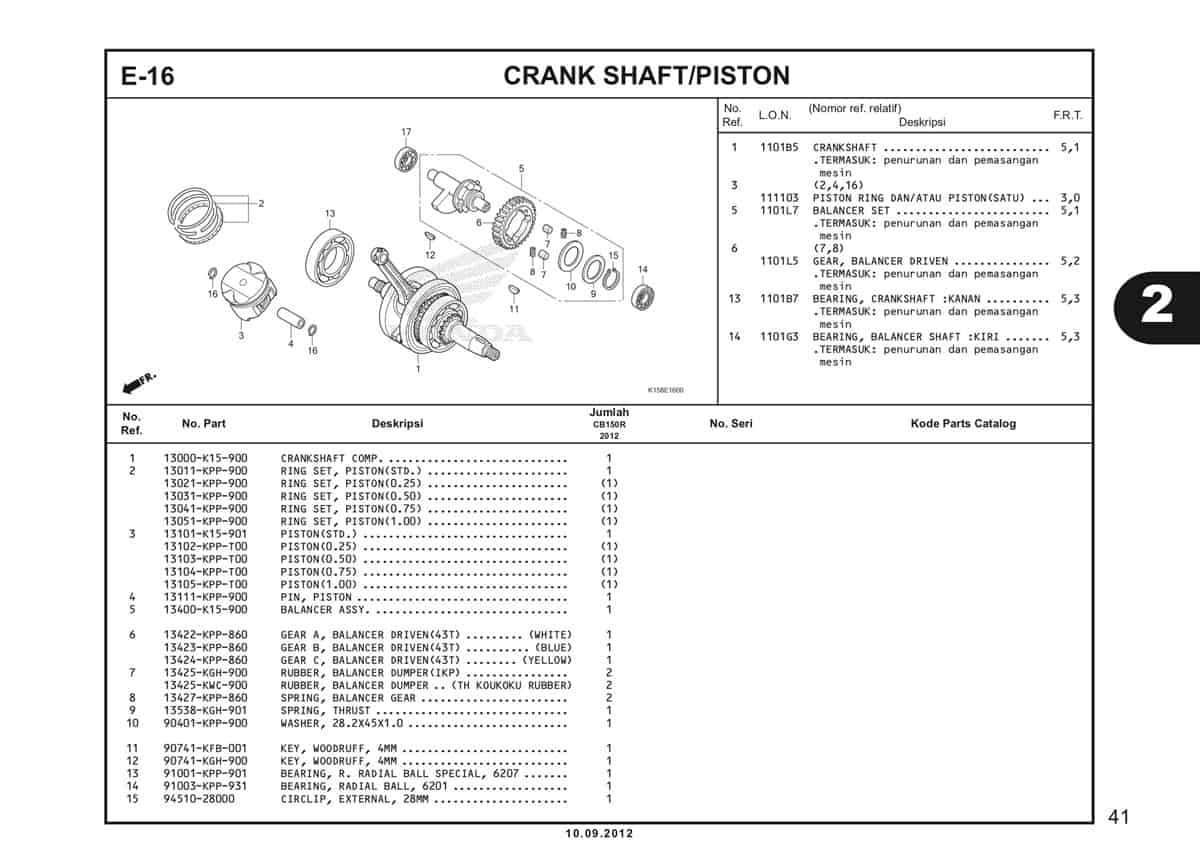

E16 – Crankshaft/Piston – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Crank Shaft Comp Part Number : `1300AK15900`
2	Ring Set Piston (STD) Part Number : `13011K15305`
2	Ring Set Piston (STD) Part Number : `13011KPP900`
2	Ring Set Piston 0.25 Part Number : `13021KPP900`
2	Ring Set Piston 0.50 Part Number : `13031KPP900`
2	Ring Set Piston 0.75 Part Number : `13041KPP900`
2	Ring Set Piston 1.00 Part Number : `13051KPP900`
3	Piston (STD) Part Number : `13101K15901`
3	Piston OS 0.25 Part Number : `13102KPPT00`
3	Piston OS 0.50 Part Number : `13103KPPT00`
3	Piston OS 0.75 Part Number : `13104KPPT00`
3	Piston OS 1.00 Part Number : `13105KPPT00`
4	Pin Piston Part Number : `13111KPP901`
5	Balancer Assy Part Number : `13400K15900`
6	Gear A Balancer Driven Part Number : `13422KPP860`
6	Gear B Balancer Driven Part Number : `13423KPP860`
6	Gear C Balancer Driven Part Number : `13424KPP860`
7	Rubber Balancer Dumper Part Number : `13425KGH901`
7	Rubber Balancer Dumper Part Number : `13425KWC900`
8	Spring Balancer Gear Part Number : `13427KPP860`
9	Spring Thrust Part Number : `13538KGH901`
9	Spring Thrust Part Number : `13538KGH900`
10	Washer 28.2X45X1.0 Part Number : `90401KPP900`
11	Key Woodruff 4MM Part Number : `90741KFB000`
12	Key Woodruff 4MM Part Number : `90741KGH900`
13	Bearing Radial Ball 6207 Special Part Number : `91001KPP901`
14	Bearing Radial Ball 6201 Special Part Number : `91003KPP931`
15	Circlip Ex 28 Part Number : `9451028000`
16	Clip Pin Piston Part Number : `9460115000`
17	Bearing Radial Ball 6301 Part Number : `961006301000`
